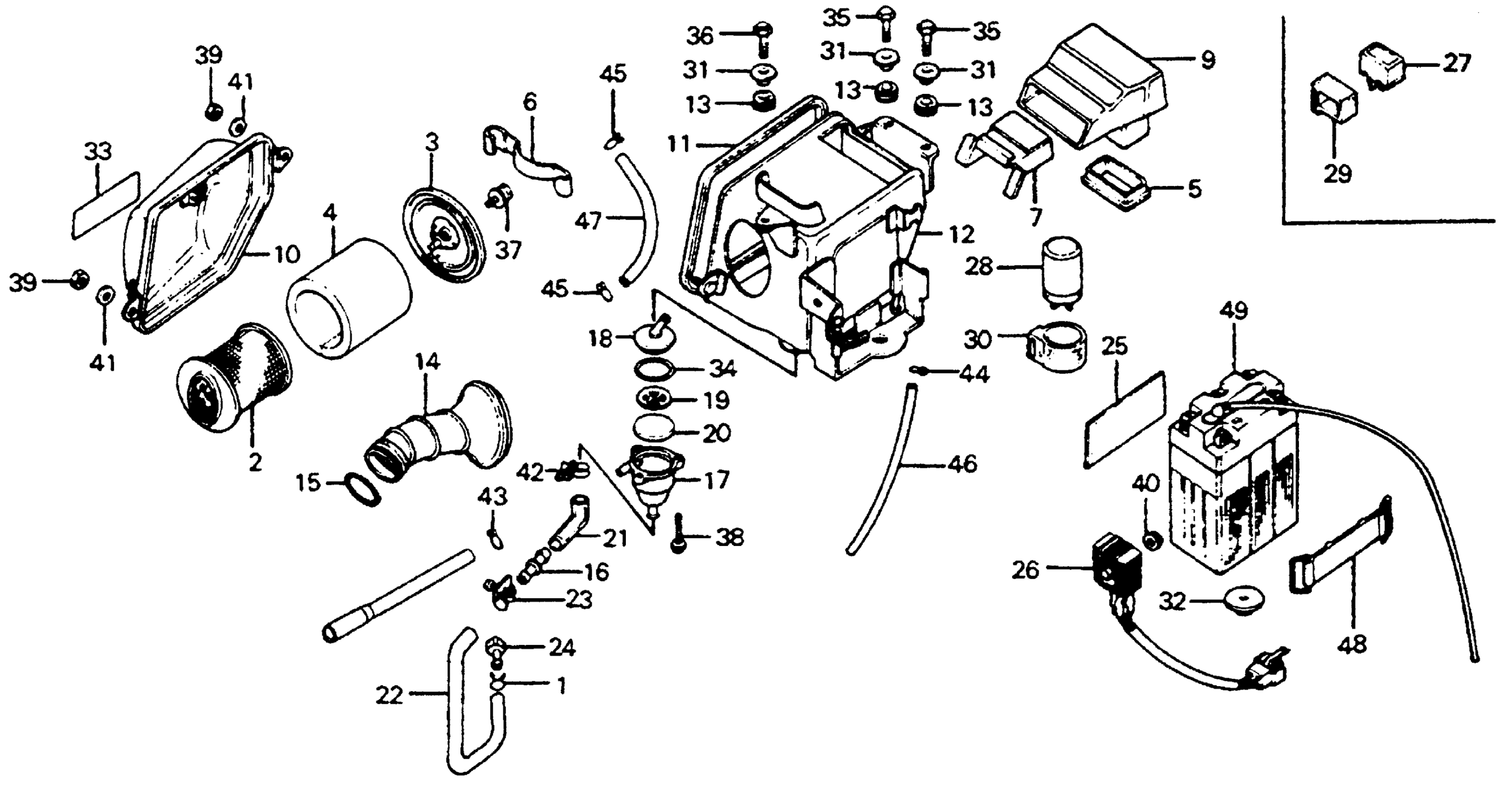

Honda CB125SA (79) MOTORCYCLE, JPN, VIN# CB125S-5000001 TO CB125S-5002000 AIR CLEANER + BATTERY 79 Diagram

#

Description
Price

1

CLIP, OIL DRAIN

15707-634-000

$5.13

2

TRAP, FLAME (NOT AVAILABLE)

17211-382-870

Unavailable

3

CAP, ELEMENT HOLDER (NOT AVAILABLE)

17212-383-770

Unavailable

4

ELEMENT, AIR CLEANER

17213-383-670

$9.85

5

PLATE B, AIR DUCT (NOT AVAILABLE)

17217-383-670

Unavailable

6

SPRING, ELEMENT

17217-385-000

Unavailable

7

PLATE A, AIR DUCT

17218-383-670

Unavailable

9

DUCT, AIR

17219-383-670

Unavailable

10

COVER, AIR CLEANER (NOT AVAILABLE)

17220-383-670

Unavailable

11

GASKET, AIR CLEANER HOUSING (NOT AVAILABLE)

17226-383-670

Unavailable

12

HOUSING, AIR CLEANER (NOT AVAILABLE)

17230-383-770

Unavailable

13

RUBBER, AIR CLEANER HOUSING SETTING

17245-107-010

$2.89

14

TUBE, CONNECTING This part replaces 17253-383-671.

17253-383-672

Unavailable

14

TUBE, CONNECTING

17253-383-672

Unavailable

15

BAND A, AIR CLEANER IN. PIPE

17231-051-000

$4.63

15

BAND A, AIR CLEANER IN. PIPE This part replaces 17255-028-000.

17231-051-000

$4.63

16

JOINT, BREATHER TUBE

17359-419-670

$1.95

17

BODY, BREATHER SEPARATOR

17361-419-670

Unavailable

18

CAP, BREATHER SEPARATOR

17362-383-770

Unavailable

19

HOLDER, ELEMENT

17363-419-670

Unavailable

20

ELEMENT, CONDENSATION

17364-419-000

Unavailable

21

TUBE, VINYL (11X15)

17365-383-770

Unavailable

22

TUBE (8X13)

17366-383-770

Unavailable

23

CLIP, TUBE (A13.5)

17369-419-670

Unavailable

24

PLUG, BREATHER TUBE

17370-419-700

$3.74

25

RUBBER, BATTERY CUSHION

31511-107-300

$4.69

26

RECTIFIER ASSY.

31700-102-731

Unavailable

27

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5002000

38300-GF0-405

$44.27

27

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5002000 This part replaces 38300-089-671.

38300-GF0-405

$44.27

27

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5002000 This part replaces 38300-243-670.

38300-GF0-405

$44.27

27

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5002000 This part replaces 38300-428-004.

38300-GF0-405

$44.27

27

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5002000 This part replaces 38301-428-671.

38300-GF0-405

$44.27

27

RELAY ASSY., TURN SIGNAL | Use up to Frame SN 5002000 This part replaces 38310-428-671.

38300-GF0-405

$44.27

28

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5002001

38300-GF0-405

$44.27

28

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5002001 This part replaces 38300-089-671.

38300-GF0-405

$44.27

28

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5002001 This part replaces 38300-243-670.

38300-GF0-405

$44.27

28

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5002001 This part replaces 38300-428-004.

38300-GF0-405

$44.27

28

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5002001 This part replaces 38301-428-004.

38300-GF0-405

$44.27

28

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5002001 This part replaces 38301-428-671.

38300-GF0-405

$44.27

28

RELAY ASSY., TURN SIGNAL | Use from Frame SN 5002001 This part replaces 38310-428-671.

38300-GF0-405

$44.27

29

SUSPENSION, TURN SIGNAL RELAY (NOT AVAILABLE) | Use up to Frame SN 5002000

38306-092-670

Unavailable

30

SUSPENSION, TURN SIGNAL RELAY | Use from Frame SN 5002001

38306-292-000

$3.76

31

COLLAR, FR. FENDER (WHITE) This part replaces 61104-357-000.

61104-428-010

$4.42

31

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

31

COLLAR, RR. FENDER

61105-428-000

Unavailable

32

RUBBER, BATTERY BOX

83618-323-000

$2.47

33

LABEL, AIR CLEANER CAUTION

87506-340-670

Unavailable

34

O-RING (47X1.9)

91305-419-670

Unavailable

35

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

35

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

36

BOLT, RECESSED (6X25) This part replaces 92300-06025.

92301-06025-0A

$1.49

36

BOLT, RECESSED (6X25) This part replaces 92300-06025-0A.

92301-06025-0A

$1.49

36

BOLT, RECESSED (6X25)

92301-06025-0A

$1.49

37

BOLT-WASHER (6X12)

93411-06012-08

$1.55

37

BOLT-WASHER (6X12) This part replaces 93481-06012-08.

93411-06012-08

$1.55

38

SCREW-WASHER (4X20)

93891-04020-00

Unavailable

39

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

39

NUT, HEX. (6MM)

94001-06200-0S

$1.49

39

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

40

NUT, FLANGE (6MM)

94050-06000

$1.49

41

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

41

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

41

WASHER, PLAIN (6MM)

94101-06800

$1.49

42

CLIP, TUBE (A16)

95002-01160

$4.05

43

CLIP, TUBE (B12.5)

95002-02130

$1.49

44

CLIP, TUBE (C6)

95002-30000

Unavailable

45

CLIP, TUBE (C12)

95002-80000

$1.49

46

*95003-08008-10M This part replaces 95003-08015-10.

95003-08020-10S

Unavailable

47

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

48

BAND, BATTERY This part replaces 95012-15000.

95012-15001

$6.31

48

BAND, BATTERY

95012-15001

$6.31

49

BATTERY (6N6-3B) This part replaces 31500-329-677.

31500-329-677AH

Unavailable

49

BATTERY (6N6-3B) This part replaces 98203-63260.

31500-329-677AH

Unavailable
