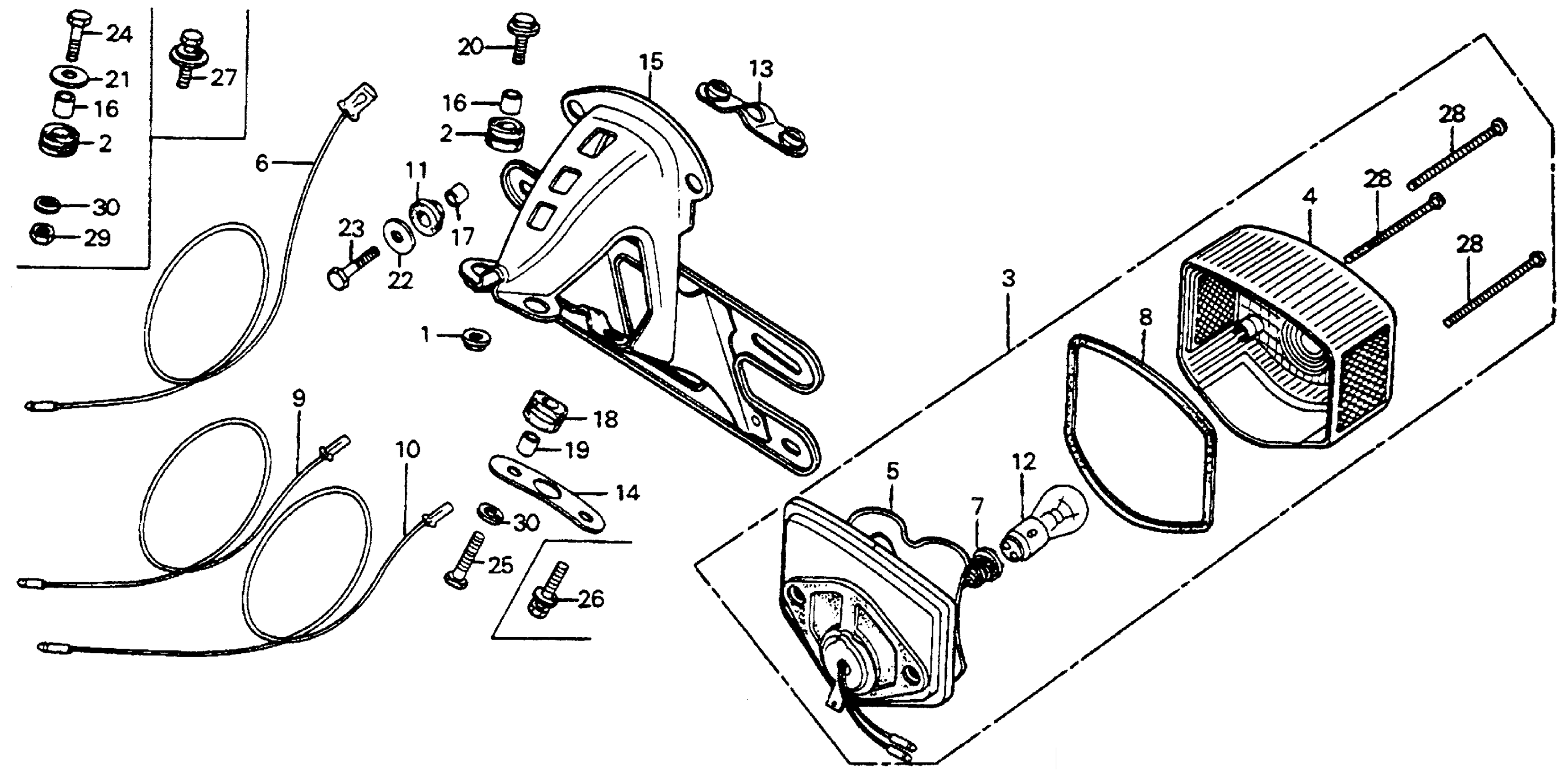

Honda CB125SA (78) MOTORCYCLE, JPN, VIN# CB125S-1500003 TO CB125S-1509345 TAILLIGHT Diagram

NUT, FLANGE (6MM) This part replaces 18362-720-000.

94050-06000

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

RUBBER, REGULATOR CUSHION This part replaces 31403-300-000.

31403-323-000

$3.38

RUBBER, REGULATOR CUSHION

31403-323-000

$3.38

TAILLIGHT UNIT (NOT AVAILABLE)

33701-329-671

Unavailable

LENS, TAILLIGHT

33702-329-671

Unavailable

BASE, TAILLIGHT (NOT AVAILABLE)

33703-329-670

Unavailable

CABLE, TAILLIGHT GROUND

33708-304-000

Unavailable

WIRE, TAILLIGHT

33708-098-000

Unavailable

WIRE, TAILLIGHT This part replaces 33708-341-671.

33708-098-000

Unavailable

GASKET, TAILLIGHT LENS

33709-092-671

$3.30

SUB-WIRE, TAILLIGHT (NOT AVAILABLE)

33711-107-670

Unavailable

SUB-WIRE, STOP LIGHT (GREEN/YELLOW) (NOT AVAILABLE)

33712-107-670

Unavailable

GASKET B, TAILLIGHT BASE

33719-077-671

$1.59

BULB, STOP & TAILLIGHT (6V32/3CP) (STANLEY)

34906-329-671

$6.49

PLATE A, NUMBER BRACKET SETTING (NOT AVAILABLE)

80109-340-000

Unavailable

PLATE B, NUMBER BRACKET MOUNT (NOT AVAILABLE)

80110-312-000

Unavailable

BRACKET, LICENSE PLATE *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

84701-128-670SG

Unavailable

COLLAR, NUMBER BRACKET SETTING

84706-286-000

$2.99

COLLAR, TAILLIGHT UNIT

84706-342-000

Unavailable

RUBBER, FENDER

84905-333-000

$4.22

COLLAR, NUMBER BRACKET SETTING

84906-118-000

$2.92

BOLT, FLANGE (6X25)

90122-369-000

$6.97

WASHER (20MM)

90581-310-000

$1.90

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

BOLT, HEX. (6X25) This part replaces 92000-06025.

92101-06025-0A

$1.62

BOLT, HEX. (6X25)

92101-06025-0A

$1.62

SCREW, PAN (4X55) This part replaces 93500-04055-4A.

93500-04055-4J

$1.49

SCREW, PAN (4X55)

93500-04055-4J

$1.49

WASHER, SPRING (6MM)

94111-06000

$1.49
