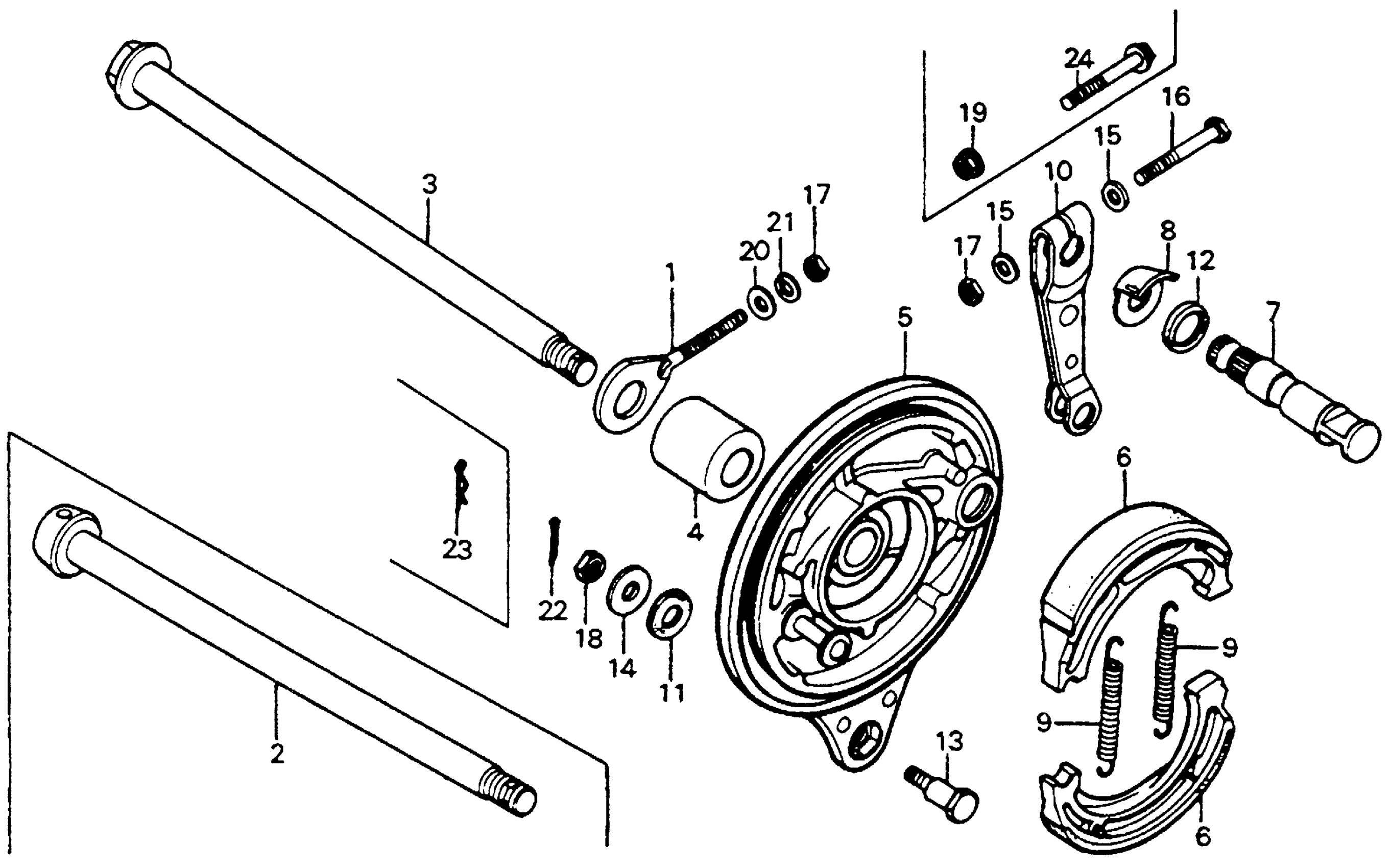

Honda CB125SA (78) MOTORCYCLE, JPN, VIN# CB125S-1500003 TO CB125S-1509345 REAR BRAKE PANEL Diagram

#

Description
Price

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-KT0-305.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 06430-365-674.

06430-GBJ-J10

$29.23

NI

SHOE SET, BRAKE (ASK) This part replaces 431A2-365-672.

06430-GBJ-J10

$29.23

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-384-920.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN This part replaces 40543-397-000.

40543-397-890

$4.24

1

ADJUSTER, DRIVE CHAIN

40543-397-890

$4.24

3

AXLE, RR. WHEEL

42301-401-680

Unavailable

4

COLLAR, RR. BRAKE PANEL SIDE

42313-074-010

Unavailable

5

PANEL, RR. BRAKE (NOT AVAILABLE)

43100-128-670

Unavailable

6

SHOE SET, BRAKE (ASK) This part replaces 43120-365-671.

06430-GBJ-J10

$29.23

6

SHOE SET, BRAKE (ASK) This part replaces 43120-365-672.

06430-GBJ-J10

$29.23

7

CAM, RR. BRAKE (NOT AVAILABLE)

43141-365-670

Unavailable

8

INDICATOR, RR. BRAKE

43145-324-700

Unavailable

9

SPRING, BRAKE SHOE

43151-110-000

$2.92

10

ARM, RR. BRAKE

43410-041-020

Unavailable

10

ARM, RR. BRAKE This part replaces 43410-364-670.

43410-041-020

Unavailable

11

RUBBER, STOPPER ARM CUSHION

43434-286-000

$2.92

12

DUST SEAL, BRAKE CAM

45134-250-000

$2.92

13

BOLT, RR. BRAKE STOPPER

90127-400-000

$8.89

14

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

15

WASHER, RR. BRAKE ARM

90525-001-000

$1.95

16

BOLT, HEX. (6X35) This part replaces 92000-06036.

92201-06035-0A

$1.75

16

BOLT, HEX. (6X35) This part replaces 92200-06035.

92201-06035-0A

$1.75

16

BOLT, HEX. (6X36)

92201-06035-0A

$1.75

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

WASHER, SPRING (6MM)

94111-06000

$1.49

22

PIN, COTTER (2.0X15)

94201-20150

$1.49
