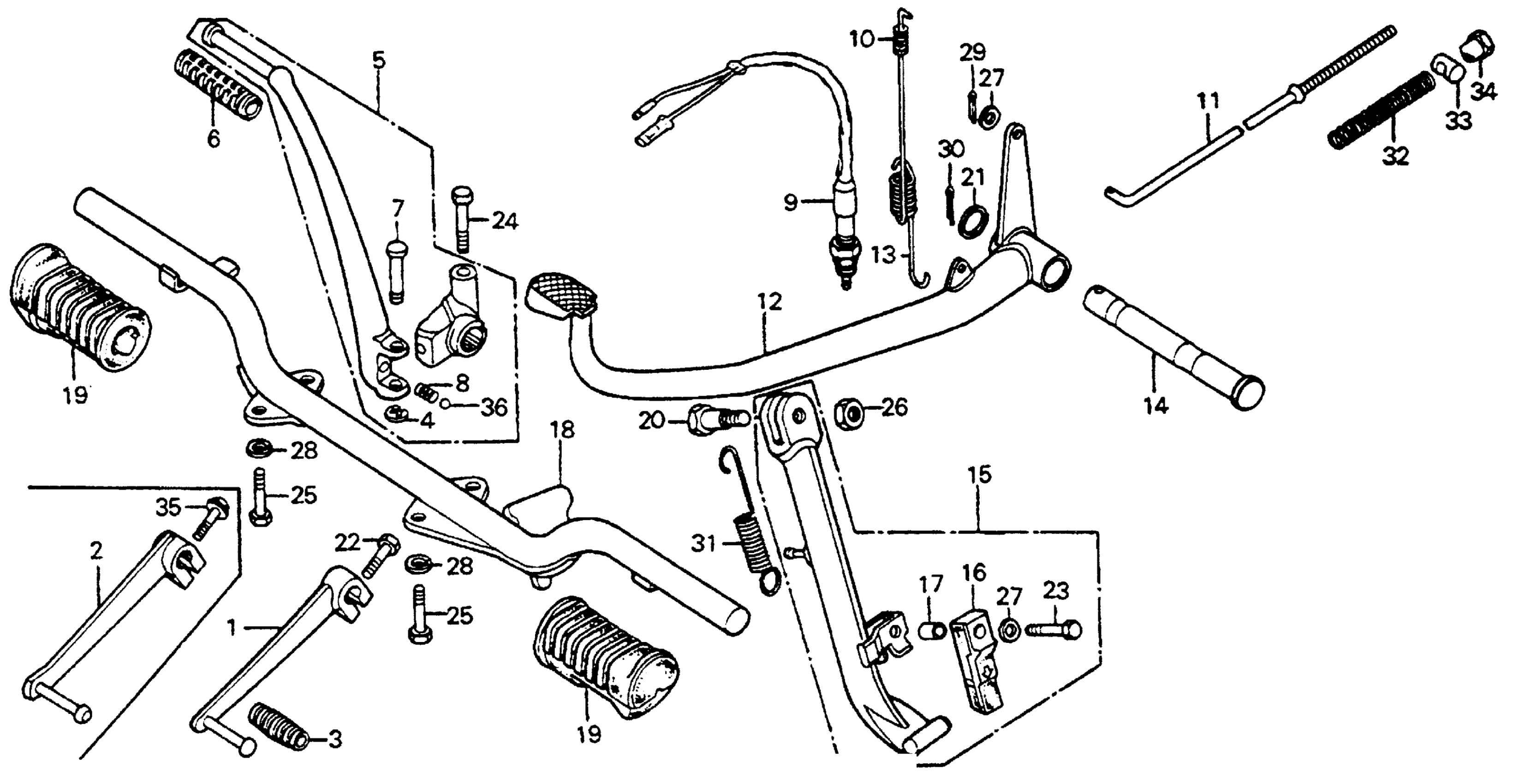

Honda CB125SA (78) MOTORCYCLE, JPN, VIN# CB125S-1500003 TO CB125S-1509345 PEDAL + KICK ARM + STAND 76,78 Diagram

#

Description
Price

2

PEDAL, GEARSHIFT

24701-107-700

Unavailable

2

PEDAL, GEARSHIFT This part replaces 24701-153-600.

24701-107-700

Unavailable

3

RUBBER, CHANGE PEDAL This part replaces 24781-205-000.

95011-40000

$1.49

3

RUBBER, CHANGE PEDAL This part replaces 24781-268-000.

95011-40000

$1.49

3

RUBBER, SHIFT PEDAL

95011-40000

$1.49

4

CLIP, KICK STARTER ARM

28293-124-000

$2.41

5

ARM, KICK STARTER This part replaces 28300-383-670.

28300-439-010

Unavailable

6

RUBBER A, KICK STARTER | Use up to Frame SN 1500000 This part replaces 28311-001-000.

95011-51000

$3.69

6

RUBBER A, KICK STARTER

95011-51000

$3.69

6

RUBBER A, KICK STARTER | Use up to Frame SN 1500000

95011-51000

$3.69

7

PIN, KICK STARTER (MURAMATSU)

28321-355-003

Unavailable

8

SPRING, KICK STARTER STOPPER

28333-124-000

$2.26

9

SWITCH ASSY., RR. STOP

35350-KJ9-405

$16.97

9

SWITCH ASSY., RR. STOP This part replaces 35350-292-003.

35350-KJ9-405

$16.97

9

SWITCH ASSY., RR. STOP This part replaces 35350-336-000.

35350-KJ9-405

$16.97

10

SPRING, STOP SWITCH

35357-107-010

Unavailable

11

ROD, RR. BRAKE

43451-397-000

$7.34

12

PEDAL, BRAKE *A1* (SEMI GLAZED BLACK) (NOT AVAILABLE)

46500-383-710SG

Unavailable

13

SPRING, BRAKE PEDAL

46514-107-010

$5.99

14

PIPE, MAIN STAND PIVOT

50526-383-670

Unavailable

15

BAR ASSY., SIDE STAND *NH1* (BLACK) (NOT AVAILABLE)

50540-324-760B

Unavailable

16

RUBBER, STAND

50548-324-760

$12.47

17

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.70

18

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE) This part replaces 50610-383-670ZA.

50610-383-671ZA

Unavailable

18

BAR, STEP *NH1* (BLACK) (NOT AVAILABLE)

50610-383-671ZA

Unavailable

19

RUBBER, FOOTPEG

50661-383-670

Unavailable

20

BOLT, SIDE STAND PIVOT

90108-223-000

$5.13

21

WASHER (17X22)

90521-028-000

$1.89

23

BOLT, HEX. (6X28) This part replaces 92000-06028.

92101-06028-0A

$1.49

23

BOLT, HEX. (6X28)

92101-06028-0A

$1.49

24

BOLT, HEX. (6X40) This part replaces 92000-06040.

92101-06040-0A

Unavailable

24

BOLT, HEX. (6X40) This part replaces 92000-06040-0A.

92101-06040-0A

Unavailable

24

BOLT, HEX. (6X40)

92101-06040-0A

Unavailable

25

BOLT, HEX. (8X20) This part replaces 92000-08020-0A.

92101-08020-0A

$1.62

25

BOLT, HEX. (8X20)

92101-08020-0A

$1.62

26

NUT, HEX. (10MM)

94002-10000-0S

$4.06

27

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

27

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

27

WASHER, PLAIN (6MM)

94101-06800

$1.49

28

WASHER, SPRING (8MM)

94111-08000

$1.49

29

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

29

PIN, COTTER (1.6X25)

94201-16250

$1.49

30

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

30

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

30

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

30

PIN, COTTER (3.0X45)

94201-30450

$1.49

31

SPRING A, SIDE STAND | Use up to Frame SN 1503713 This part replaces 95014-72101.

95014-72102

$2.84

31

SPRING A, SIDE STAND

95014-72102

$2.84

31

SPRING A, SIDE STAND | Use up to Frame SN 1503713

95014-72102

$2.84

32

SPRING A, BRAKE ROD

95014-73100

$1.49

33

JOINT, BRAKE ARM

95015-32001

$1.49

34

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

35

BOLT, FLANGE (6X20) This part replaces 95700-06020-00.

95701-06020-00

$1.55

35

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

36

BALL, STEEL (#8) (1/4)

96211-08000

$1.49
