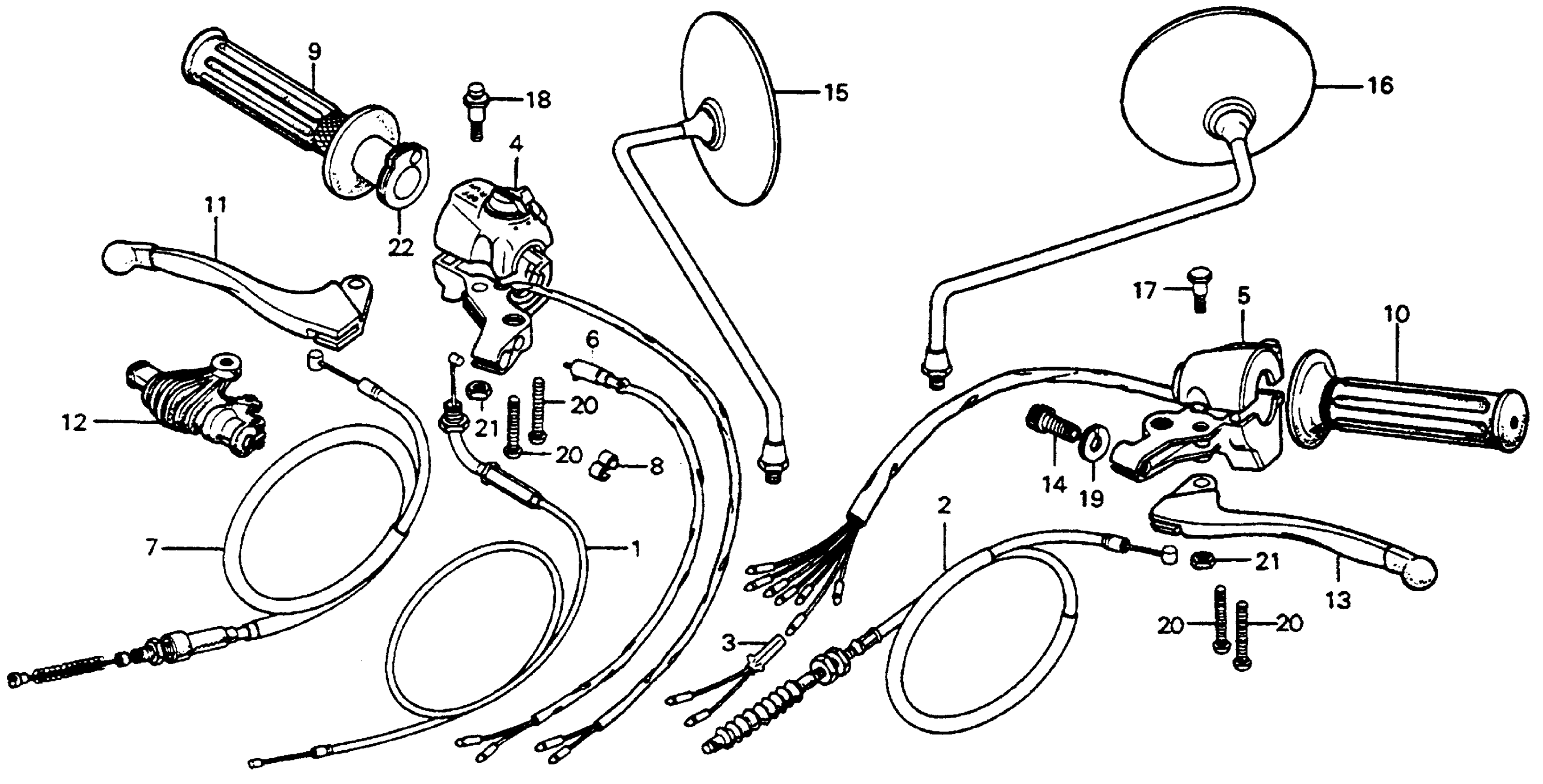

Honda CB125SA (78) MOTORCYCLE, JPN, VIN# CB125S-1500003 TO CB125S-1509345 HANDLE LEVER + SWITCH 76,78 Diagram

#

Description
Price

1

CABLE, THROTTLE

17910-383-671

Unavailable

2

CABLE, CLUTCH

22870-383-670

Unavailable

3

SUB-WIRE B (NOT AVAILABLE)

32112-102-750

Unavailable

4

SWITCH ASSY., STOP (NOT AVAILABLE)

35130-383-670

Unavailable

5

SWITCH ASSY., TURN SIGNAL (NOT AVAILABLE)

35200-383-670

Unavailable

6

SWITCH ASSY., FR. STOP | Use up to Frame SN 1508653 This part replaces 35330-391-690.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP | Use up to Frame SN 1508653 This part replaces 35340-147-000.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP | Use up to Frame SN 1508653 This part replaces 35340-329-000.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP | Use up to Frame SN 1508653

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP | Use up to Frame SN 1508653 This part replaces 35340-329-010.

35340-329-003

$17.46

6

SWITCH ASSY., FR. STOP | Use from Frame SN 1508654 This part replaces 35340-187-700.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP | Use from Frame SN 1508654 This part replaces 35340-401-681.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP | Use from Frame SN 1508654 This part replaces 35340-401-682.

35340-GAN-620

$19.20

6

SWITCH ASSY., FR. STOP | Use from Frame SN 1508654 This part replaces 35340-437-661.

35340-GAN-620

$19.20

7

CABLE, FR. BRAKE | Use up to Frame SN 1504574 This part replaces 45450-149-010.

45450-383-671

Unavailable

7

CABLE, FR. BRAKE | Use up to Frame SN 1504574 This part replaces 45450-354-700.

45450-383-671

Unavailable

7

CABLE, FR. BRAKE | Use up to Frame SN 1504574 This part replaces 45450-383-670.

45450-383-671

Unavailable

7

CABLE, FR. BRAKE | Use up to Frame SN 1504574 This part replaces 45450-389-770.

45450-383-671

Unavailable

7

CABLE, FR. BRAKE

45450-383-671

Unavailable

7

CABLE, FR. BRAKE | Use up to Frame SN 1504574

45450-383-671

Unavailable

8

CLIP, FR. BRAKE CABLE

45465-270-000

$4.94

8

CLIP, FR. BRAKE CABLE This part replaces 45465-341-700.

45465-270-000

$4.94

9

GRIP, R. HANDLEBAR

53165-390-780

$10.88

10

GRIP, L. HANDLEBAR

53166-390-780

$10.88

11

LEVER, R. HANDLEBAR This part replaces 53175-369-700.

53175-KY0-980

$31.02

11

LEVER, R. HANDLEBAR This part replaces 53175-402-700.

53175-KY0-980

$31.02

12

COVER, R. HANDLEBAR LEVER (NOT AVAILABLE)

53171-351-000

Unavailable

13

LEVER, L. HANDLE

53178-369-700

$28.35

14

BOLT, CABLE ADJUSTING

53192-268-000

$6.72

15

MIRROR, R.

88110-329-730

Unavailable

16

MIRROR, L. (DOES NOT INCLUDE LOCK NUT) This part replaces 88120-329-730.

88220-329-730

Unavailable

17

BOLT, HANDLEBAR LEVER PIVOT

90114-310-000

$4.90

18

BOLT, HANDLEBAR LEVER PIVOT

90114-329-000

$7.75

19

NUT, FIXING

90321-315-670

$7.31

19

NUT, FIXING This part replaces 90321-968-000.

90321-315-670

$7.31

20

SCREW, PAN (5X25)

93500-05025-0A

$1.49

20

SCREW, PAN (5X25) This part replaces 93500-05025-1A.

93500-05025-0A

$1.49

21

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

21

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

22

PIPE A, THROTTLE GRIP

95014-51100

$17.62
