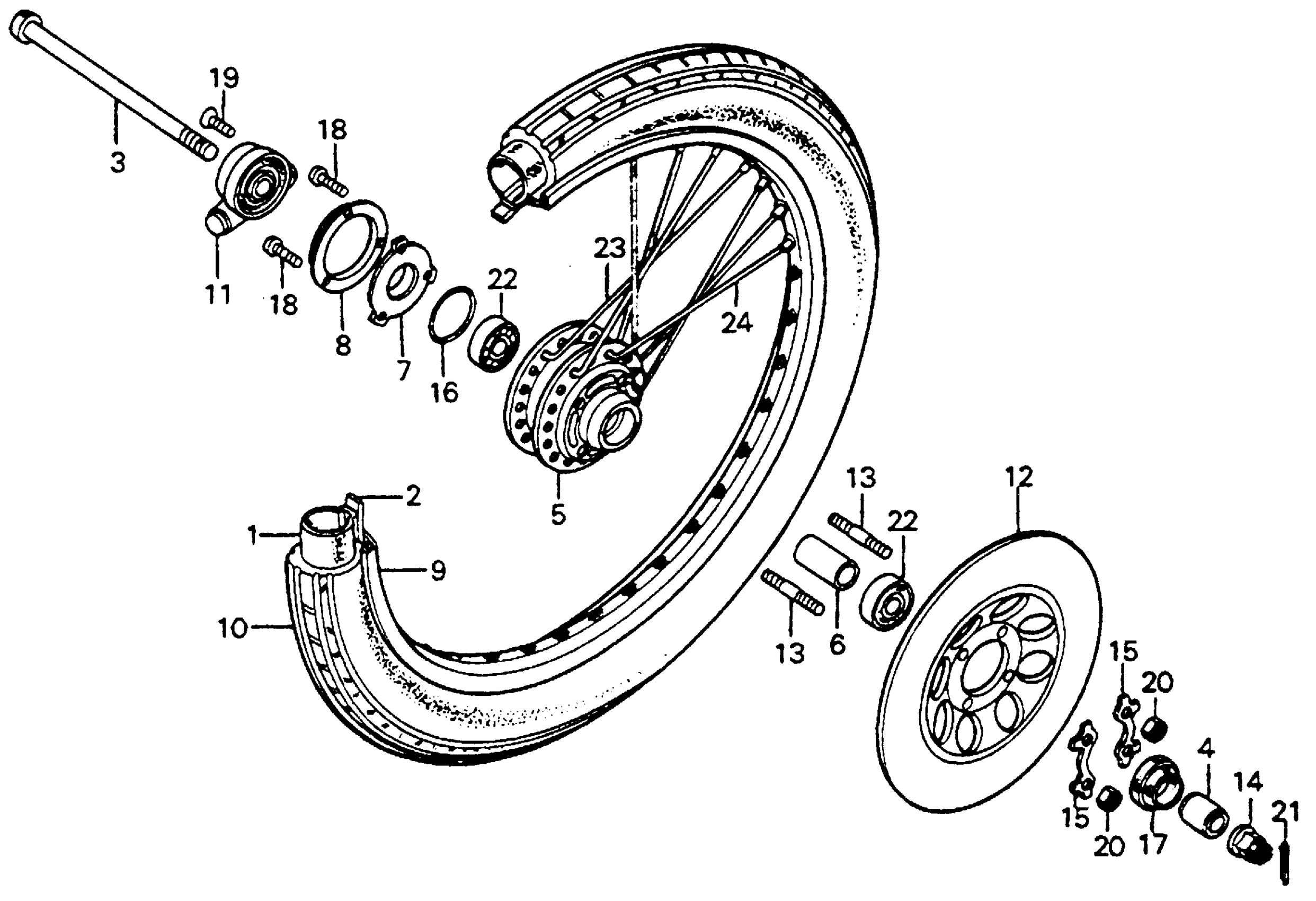

Honda CB125SA (78) MOTORCYCLE, JPN, VIN# CB125S-1500003 TO CB125S-1509345 FRONT WHEEL + FRONT BRAKE DISK 76,78 Diagram

#

Description
Price

1

TUBE (275/300-18) (IRC) This part replaces 0Y400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 08400-26800.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC)

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-168-004.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-000.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-003.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-268-810.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-304-003.

42712-KC6-005

Unavailable

1

TUBE, TIRE (2.50/2.75-18) (NITTO)

42712-304-006

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-307-006.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-315-009.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 42712-388-009.

42712-KC6-005

Unavailable

1

TUBE (275/300-18) (IRC) This part replaces 44712-305-003.

42712-KC6-005

Unavailable

2

FLAP, TIRE (1.40/1.60-18) (BS)

42713-304-003

$6.69

2

FLAP, TIRE (18) (NITTO)

42713-304-006

Unavailable

3

AXLE, FR. WHEEL

44301-107-000

Unavailable

4

COLLAR, FR. WHEEL SIDE (NOT AVAILABLE)

44311-046-000

Unavailable

5

HUB, FR. WHEEL (NOT AVAILABLE)

44601-107-720

Unavailable

6

COLLAR, FR. AXLE DISTANCE (NOT AVAILABLE)

44620-107-720

Unavailable

7

RETAINER, GEAR BOX

44641-107-720

Unavailable

8

COVER, GEAR BOX RETAINER (NOT AVAILABLE)

44642-107-720

Unavailable

9

RIM, FR. WHEEL (1.40X18) (DAIDO) | Use up to Frame SN 1504173 This part replaces 44701-107-720.

44701-383-701

Unavailable

9

RIM, FR. WHEEL (1.40X18) (DAIDO)

44701-383-701

Unavailable

10

TIRE, FR. (2.75-18) (BS) (NOT AVAILABLE)

44711-383-671

Unavailable

10

TIRE, FR. (2.75-18) (NITTO)

44711-383-672

Unavailable

11

BOX ASSY., SPEEDOMETER GEAR (NOT AVAILABLE)

44800-107-720

Unavailable

12

DISK, FR. BRAKE (NOT AVAILABLE)

45121-107-720

Unavailable

13

BOLT, STUD (6X28)

90135-107-720

$2.56

14

NUT, AXLE (12MM) This part replaces 90305-051-000.

90305-169-000

$6.28

14

NUT, AXLE (12MM)

90305-169-000

$6.28

15

WASHER, TONGUED (6MM) (NOT AVAILABLE)

90522-107-720

Unavailable

16

O-RING (42X2.4) This part replaces 90753-107-720.

91304-704-000

$3.21

16

O-RING (42X2.4)

91304-704-000

$3.21

16

O-RING (42X2.4) This part replaces 91325-568-000.

91304-704-000

$3.21

17

OIL SEAL (23X37X7)

91252-030-003

Unavailable

17

OIL SEAL (23X37X7) This part replaces 91252-030-005.

91252-030-003

Unavailable

18

SCREW, PAN (5X16)

93500-05016-0A

$1.49

19

SCREW, OVAL (5X16)

93700-05016-0A

$1.49

20

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

20

NUT, HEX. (6MM)

94001-06200-0S

$1.49

20

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30250.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$1.49

21

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$1.49

21

PIN, COTTER (3.0X45)

94201-30450

$1.49

22

BEARING, RADIAL BALL (6301U) This part replaces 96140-63010.

96140-63010-10

$14.84

22

BEARING, RADIAL BALL (6301U)

96140-63010-10

$14.84

23

SPOKE B (10X200.5) (NOT AVAILABLE)

97281-42241-10

Unavailable

24

SPOKE B (10X200)

97465-42240-10

$2.95
