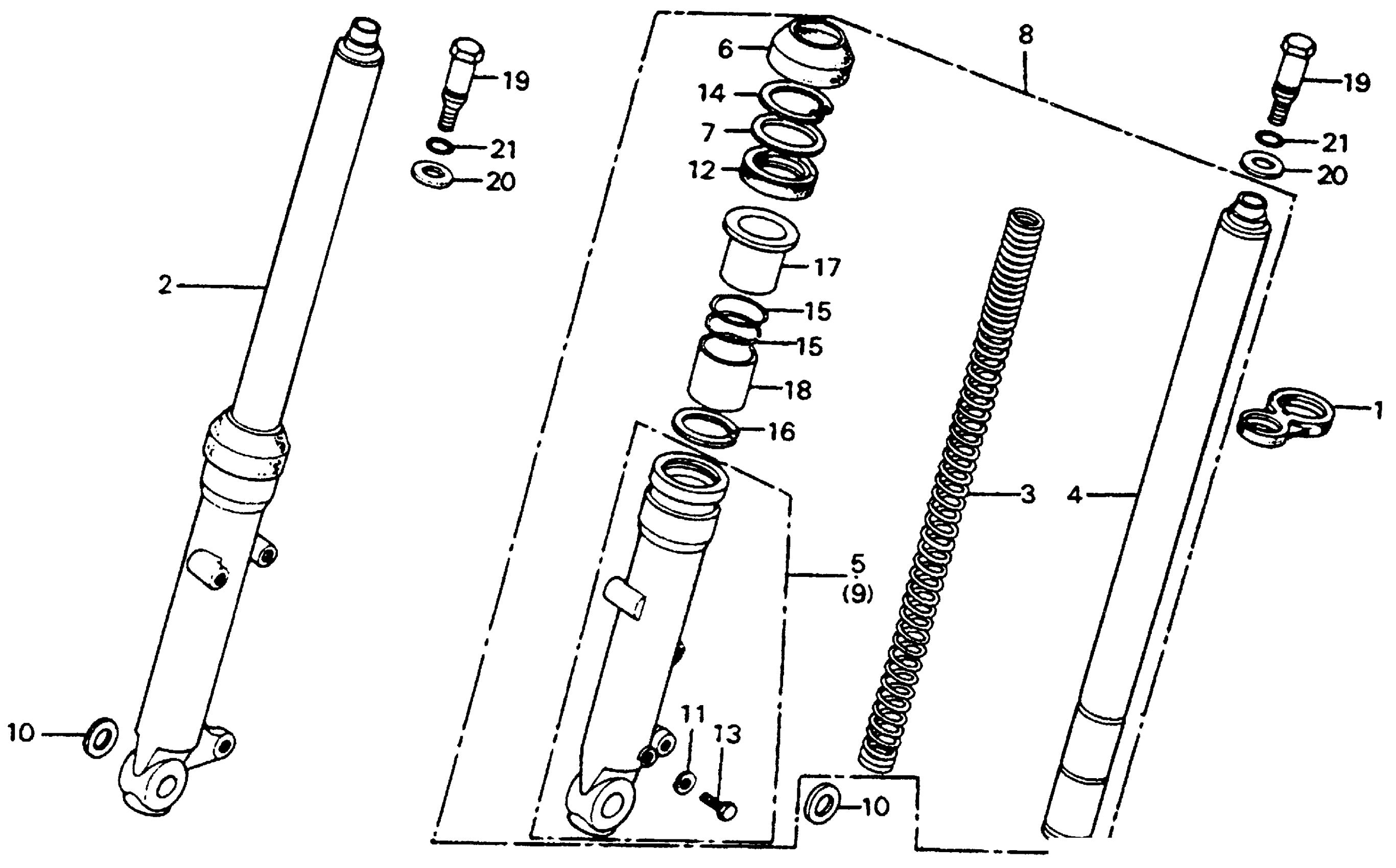

Honda CB125SA (78) MOTORCYCLE, JPN, VIN# CB125S-1500003 TO CB125S-1509345 FRONT FORK 76,78 Diagram

#

Description
Price

1

GUIDE, BRAKE CABLE

45468-383-670

Unavailable

2

FORK ASSY., R. FR. (NOT AVAILABLE)

51400-383-671

Unavailable

3

SPRING, FR. FORK (NOT AVAILABLE)

51401-383-671

Unavailable

4

PIPE, FR. FORK (NOT AVAILABLE)

51410-383-671

Unavailable

5

CASE, R. FORK (NOT AVAILABLE)

51420-383-671

Unavailable

6

DUST SEAL, FR. FORK (ARAI) This part replaces 51425-118-013.

51425-118-023

$11.06

6

DUST SEAL, FR. FORK (ARAI)

51425-118-023

$11.06

7

RING, BACK-UP

51452-118-000

Unavailable

8

FORK ASSY., L. FR. (NOT AVAILABLE)

51500-383-671

Unavailable

9

CASE, L. FR. (LOWER) (NOT AVAILABLE)

51520-383-671

Unavailable

10

WASHER (12.5MM)

90528-229-000

$2.02

11

GASKET, FR. FORK DRAIN VALVE

90543-273-000

$2.46

12

OIL SEAL, FR. FORK This part replaces 90756-118-003.

90756-149-841

$14.86

12

OIL SEAL, FR. FORK

90756-149-841

$14.86

13

BOLT, HEX. (6X8) This part replaces 92000-06008.

92101-06008-0A

$1.49

13

BOLT, HEX. (6X8) This part replaces 92000-06008-0A.

92101-06008-0A

$1.49

13

BOLT, HEX. (6X8)

92101-06008-0A

$1.49

14

CIRCLIP (INNER) (40MM) (NOT AVAILABLE)

94521-40000

Unavailable

15

RING A, SNAP (27MM)

94570-27000

Unavailable

16

RING B, SNAP (27MM) (NOT AVAILABLE)

94580-27000

Unavailable

17

GUIDE, FORK PIPE (27MM)

94602-27101

Unavailable

18

PISTON, FORK (27MM)

94603-27002

Unavailable

19

BOLT B, FORK

94605-10200

Unavailable

20

WASHER, FORK BOLT (13MM)

94606-13001

$1.49

21

O-RING (8.4X2.4)

94608-10000

$1.49
