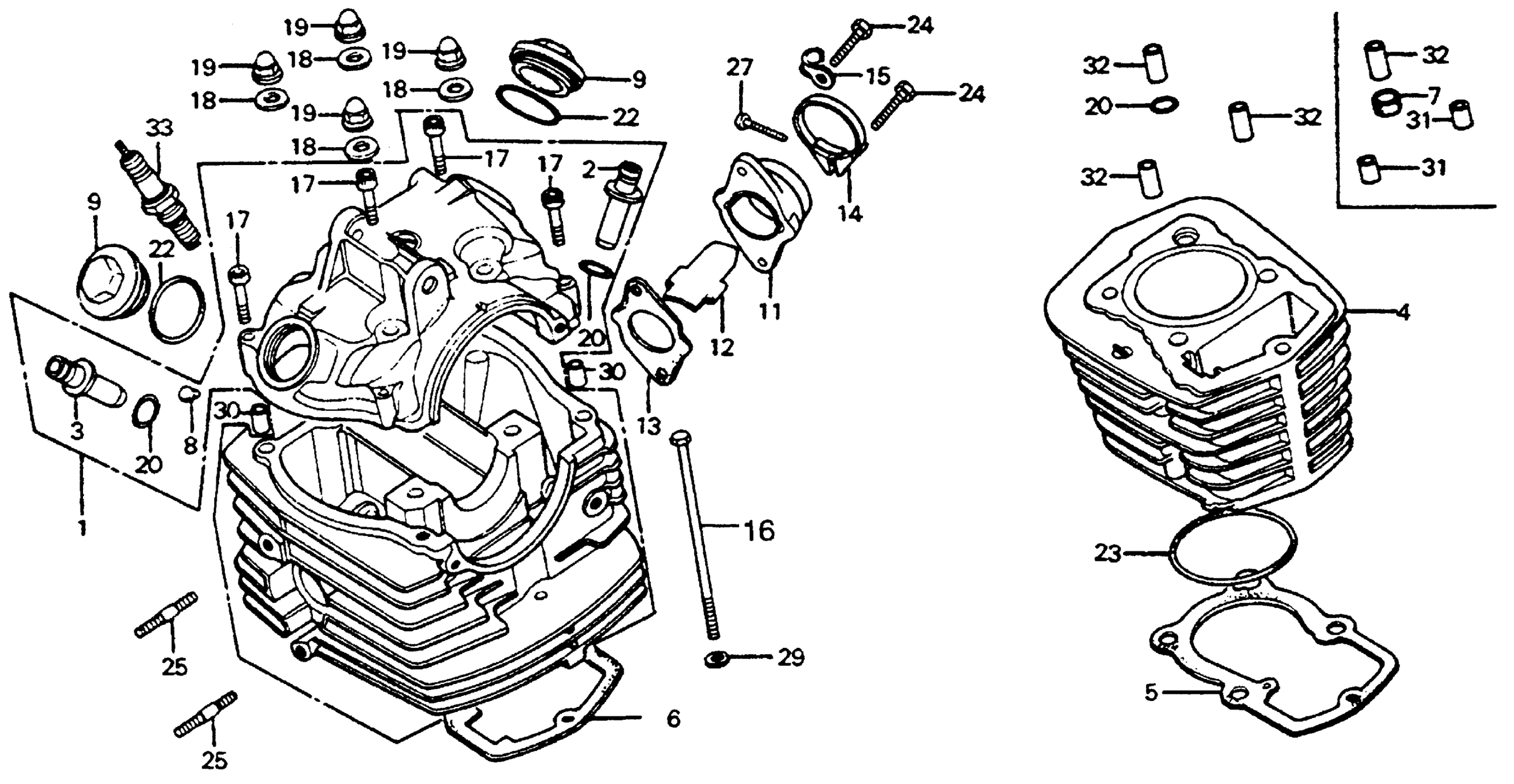

Honda CB125SA (78) MOTORCYCLE, JPN, VIN# CB125S-1500003 TO CB125S-1509345 CYLINDER HEAD + CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY. This part replaces 12000-383-000.

12000-383-305

Unavailable

1

CYLINDER HEAD ASSY. This part replaces 12000-383-010.

12000-383-305

Unavailable

2

GUIDE, VALVE

12021-365-300

Unavailable

3

GUIDE, EX. VALVE (OS) This part replaces 12023-365-300.

12206-KCS-305

$24.10

3

GUIDE, EX. VALVE (OS) This part replaces 12023-437-300.

12206-KCS-305

$24.10

3

GUIDE, EX. VALVE (OS)

12206-KCS-305

$24.10

4

CYLINDER This part replaces 12100-383-010.

12100-383-030

Unavailable

4

CYLINDER This part replaces 12100-383-020.

12100-383-030

Unavailable

4

CYLINDER

12100-383-030

Unavailable

5

GASKET, CYLINDER

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-330-305.

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-330-306.

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-365-000.

12191-KAY-690

Unavailable

5

GASKET, CYLINDER This part replaces 12191-365-306.

12191-KAY-690

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-331-770.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-331-771.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-331-772.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-437-020.

12251-437-P00

Unavailable

6

GASKET, CYLINDER HEAD This part replaces 12251-437-306.

12251-437-P00

Unavailable

8

RUBBER, OIL SEAL

12271-383-000

$2.80

9

CAP, VALVE ADJ.

12361-383-000

$5.98

11

INSULATOR, CARBURETOR

16211-383-000

Unavailable

12

PLATE, ATOMIZER (NOT AVAILABLE)

16225-383-000

Unavailable

13

GASKET This part replaces 16229-383-000.

16229-383-306

Unavailable

14

BAND A, AIR CLEANER CONNECTING TUBE

17255-303-010

$6.35

15

CLIP, COIL CABLE (NOT AVAILABLE)

32921-115-000

Unavailable

16

BOLT, HS (6MM)

90081-107-000

Unavailable

17

BOLT, SOCKET (6MM)

90081-383-000

$5.27

18

WASHER, SEALING (8MM)

90442-028-000

$1.61

19

NUT, CAP (8MM)

90443-107-000

$2.62

20

O-RING (10X1.6)

91301-200-000

$2.80

22

O-RING (35X3) (ARAI) This part replaces 91303-107-000.

91303-KK3-830

$2.80

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$0.94

24

BOLT, HEX. (6X20)

92101-06020-0A

$0.94

25

BOLT, STUD (6X28) This part replaces 90038-250-000.

92900-06028-0B

$1.71

25

BOLT, STUD (6X28) This part replaces 90051-200-000.

92900-06028-0B

$1.71

25

BOLT, STUD (6X35)

92700-06035

$1.71

25

BOLT, STUD (6X28) This part replaces 92700-06035-0B.

92900-06028-0B

$1.71

25

BOLT, STUD (6X28) This part replaces 92700-06040.

92900-06028-0B

$1.71

25

BOLT, STUD (6X28) This part replaces 92700-06040-0B.

92900-06028-0B

$1.71

25

BOLT, STUD (6X28)

92900-06028-0B

$1.71

25

BOLT, STUD (6X28) This part replaces 92900-06028-08.

92900-06028-0B

$1.71

27

SCREW, PAN (5X20)

93500-05020-0A

$0.75

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

29

WASHER, PLAIN (6MM)

94101-06800

Unavailable

30

PIN A, DOWEL (8X14)

94301-08140

$2.04

32

PIN A, DOWEL (10X20)

94301-10200

$2.32

33

SPARK PLUG (D8EA) (NGK)

98069-58717

$2.16

33

SPARK PLUG (X24ES-U) (DENSO)

98069-58727

$1.94
