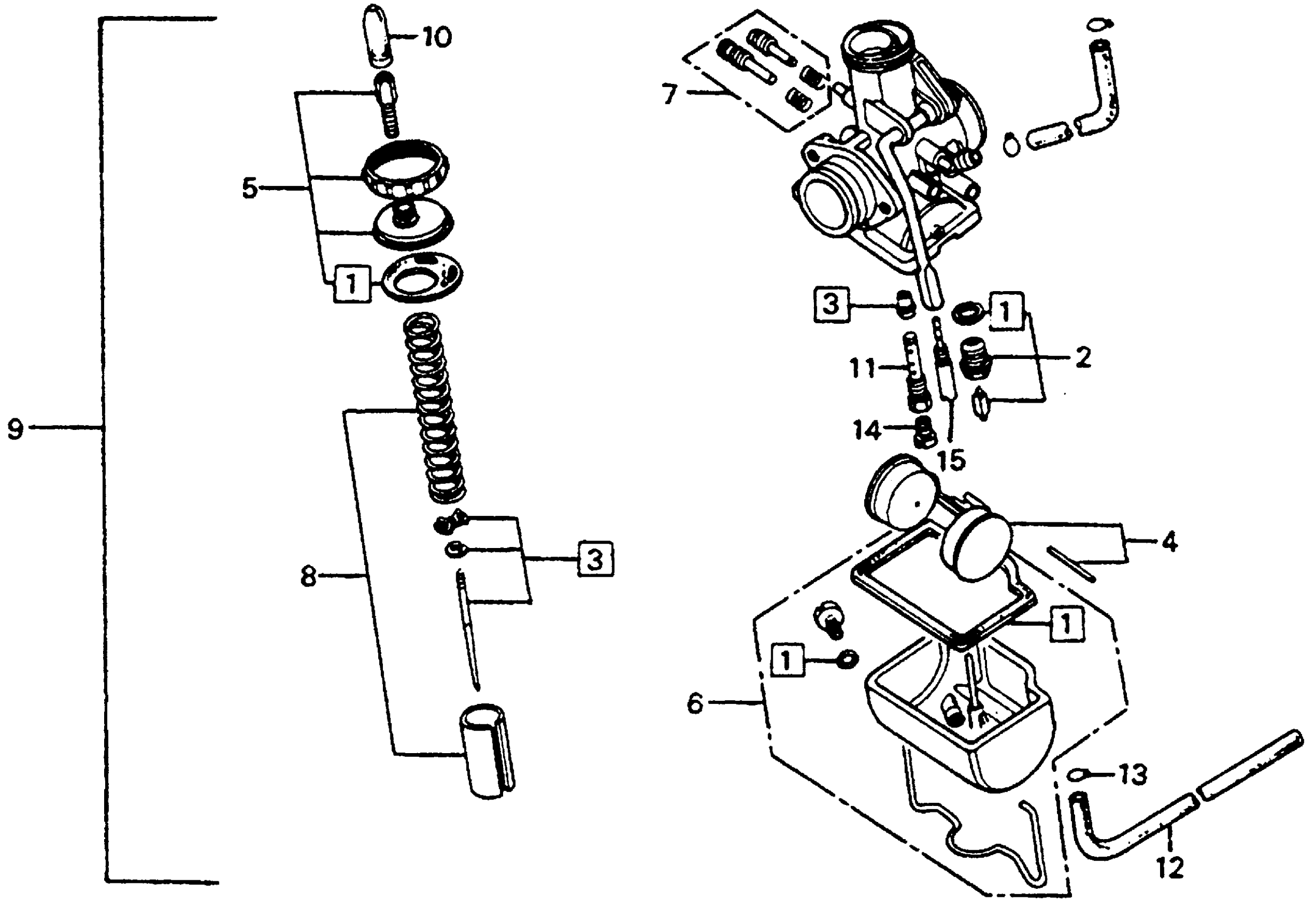

Honda CB125SA (76) MOTORCYCLE, JPN, VIN# CB125S-1300009 TO CB125S-1304255 CARBURETOR 76 Diagram

#

Description
Price

1

GASKET SET

16010-107-305

$12.74

1

GASKET SET This part replaces 16010-312-004.

16010-107-305

$12.74

2

VALVE SET, FLOAT This part replaces 16011-302-004.

16011-375-004

$28.96

2

VALVE SET, FLOAT

16011-375-004

$28.96

3

NEEDLE SET, JET (NOT AVAILABLE)

16012-383-004

Unavailable

4

FLOAT SET

16013-312-004

Unavailable

5

TOP SET

16014-312-004

$22.44

6

CHAMBER SET A, FLOAT (NOT AVAILABLE)

16015-107-710

Unavailable

7

SCREW SET A

16016-KJ2-671

Unavailable

7

SCREW SET A This part replaces 16016-035-004.

16016-KJ2-671

Unavailable

8

VALVE SET, THROTTLE | Use up to Engine SN 066 A

16022-382-620

Unavailable

8

VALVE SET, THROTTLE | Use from Engine SN 066 B

16022-382-620

Unavailable

8

VALVE SET, THROTTLE | Use up to Engine SN 066 A This part replaces 16022-383-004.

16022-382-620

Unavailable

9

CARBURETOR ASSY. (NOT AVAILABLE)

16100-383-004

Unavailable

10

CAP, CABLE SEALING This part replaces 16118-086-004.

16118-166-004

$8.08

10

CAP, CABLE SEALING

16118-166-004

$8.08

11

HOLDER, NEEDLE JET (NOT AVAILABLE)

16165-365-004

Unavailable

12

BULK HOSE, FUEL (3.5X3000) (3.5X330)

95001-35003-60M

$20.85

13

CLIP, TUBE (B7)

95002-02070

$1.80

14

JET, MAIN (#110)

99114-246-1100

Unavailable

15

JET, SLOW (#40) | Use from Engine SN 066 B

99124-076-0400

$9.85

15

JET, SLOW (#45) (NOT AVAILABLE) | Use up to Engine SN 066 A

99124-076-0450

Unavailable
