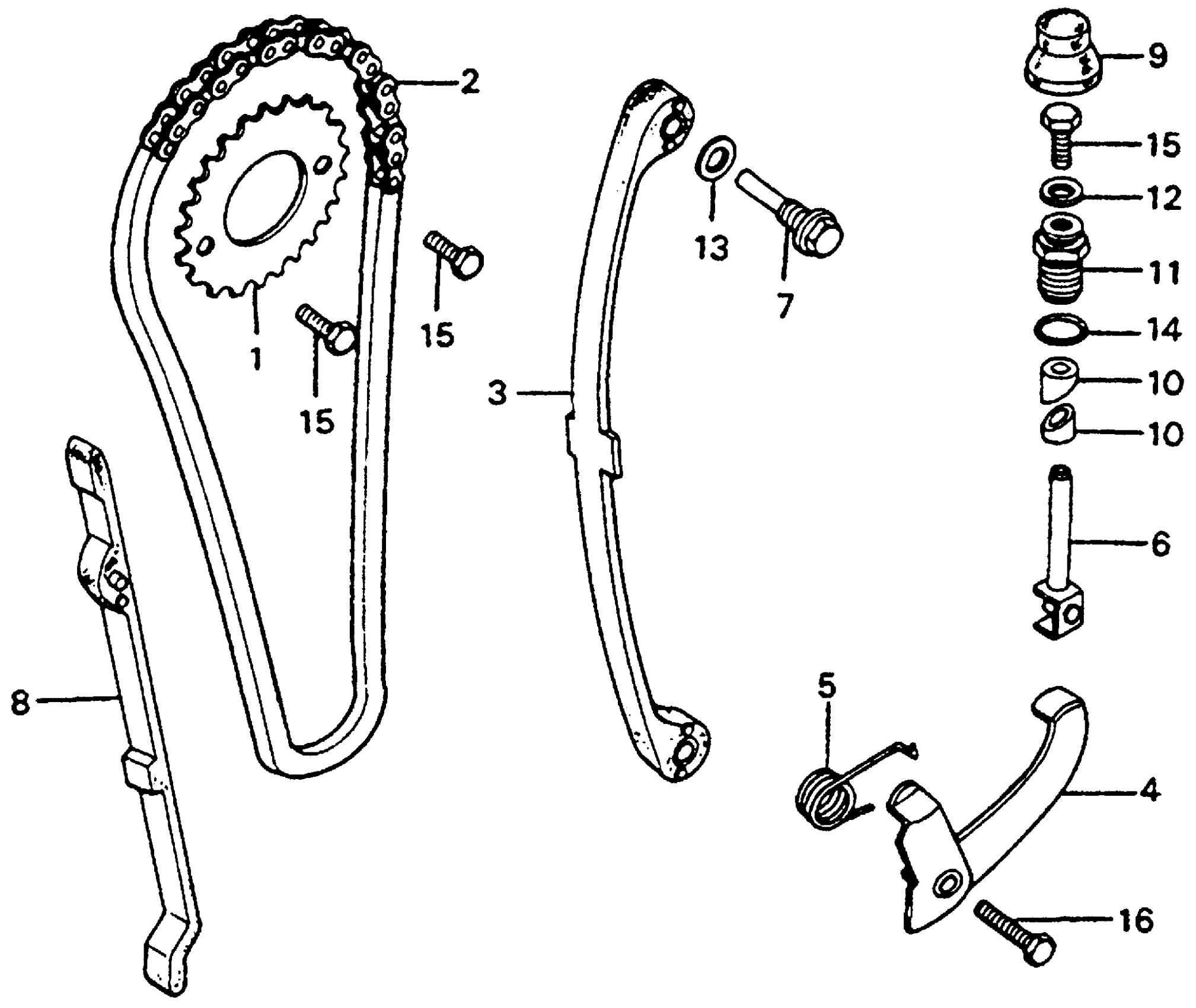

Honda CB125SA (76) MOTORCYCLE, JPN, VIN# CB125S-1300009 TO CB125S-1304255 CAM CHAIN + TENSIONER Diagram

SPROCKET, CAM (32T) This part replaces 14321-107-010.

14321-437-000

$28.36

SPROCKET, CAM (32T)

14321-437-000

$28.36

CHAIN, CAM (DID25H-98LE) (DAIDO)

14401-383-003

Unavailable

TENSIONER, CAM CHAIN

14500-383-000

Unavailable

ARM, CAM CHAIN TENSIONER

14510-383-000

$33.16

SPRING, CAM CHAIN TENSIONER

14515-383-000

$5.10

BAR, TENSIONER SETTING This part replaces 14520-383-000.

14520-969-010

$26.07

BAR, TENSIONER SETTING This part replaces 14520-383-010.

14520-969-010

$26.07

BAR, TENSIONER SETTING This part replaces 14520-969-000.

14520-969-010

$26.07

BAR, TENSIONER SETTING

14520-969-010

$26.07

BOLT, CAM CHAIN TENSIONER PIVOT

14535-107-010

Unavailable

GUIDE, CAM CHAIN

14550-383-000

Unavailable

CAP, TENSIONER ADJ.

14564-383-000

$4.45

COLLAR, SET BAR LOCKING

14626-383-000

$9.52

BOLT, SPECIAL (16MM)

90082-383-000

$26.69

WASHER, SEALING (6MM)

90441-028-010

$2.92

WASHER (8MM)

90481-035-000

$1.87

O-RING (13X2.5)

91335-567-000

$4.01

BOLT, HEX. (6X10) This part replaces 92000-06010.

92101-06010-0A

$1.49

BOLT, HEX. (6X10)

92101-06010-0A

$1.49

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.49

BOLT, HEX. (6X20)

92101-06020-0A

$1.49
