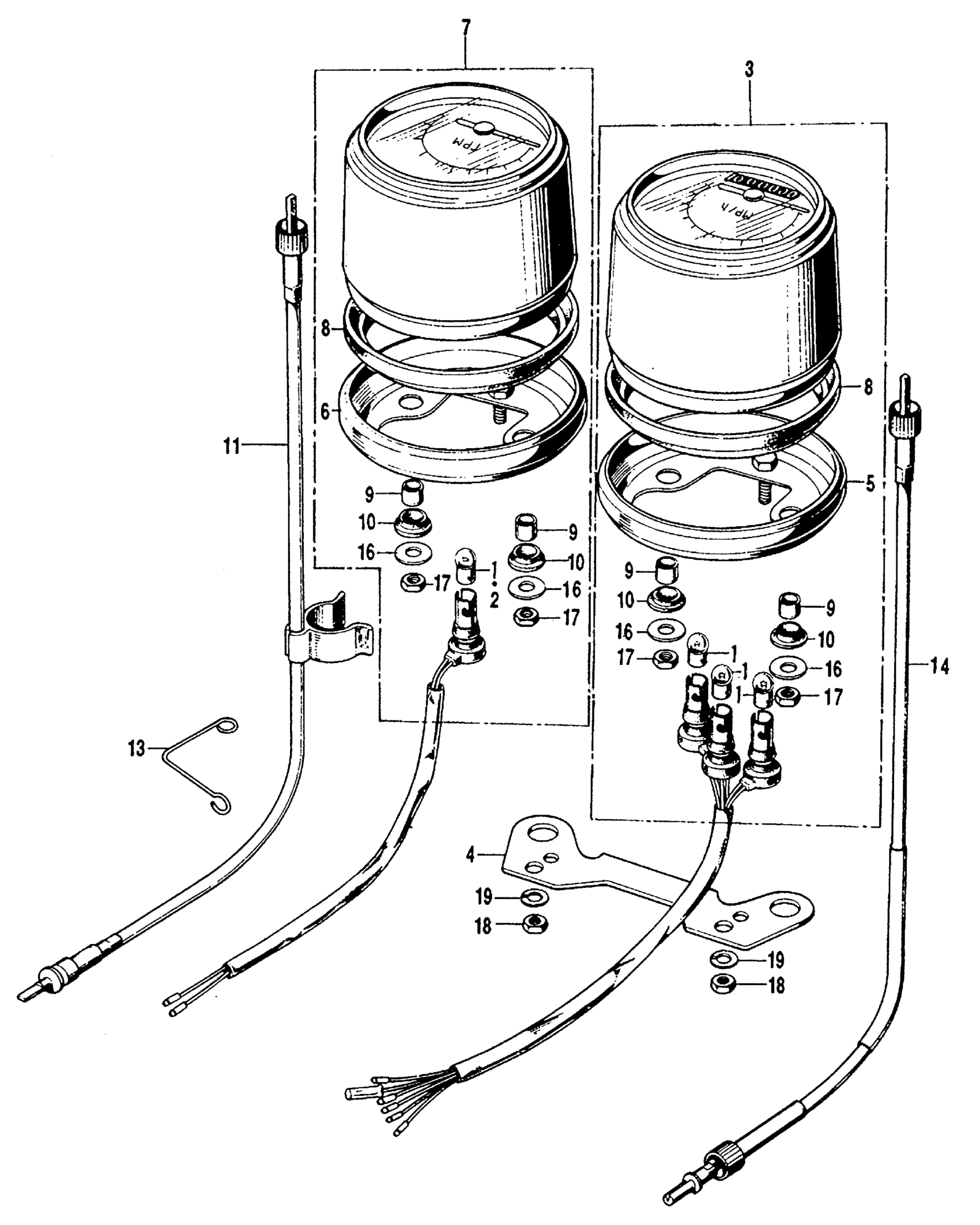

Honda CB125S2A MOTORCYCLE, JPN, VIN# CB125S-1200001 SPEEDOMETER S1-S2 Diagram

#

Description
Price

1

BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)

34908-230-000

$4.67

2

BULB, DASH (6V3W) (STANLEY)

34902-202-000

$3.08

3

SPEEDOMETER ASSY.

37200-324-702

Unavailable

4

BRACKET, METER (NOT AVAILABLE)

37212-324-010

Unavailable

5

RING, METER SETTING (NOT AVAILABLE)

37213-110-790

Unavailable

6

RING, METER SETTING (NOT AVAILABLE)

37213-331-000

Unavailable

7

TACHOMETER ASSY. (NOT AVAILABLE)

37250-324-761

Unavailable

8

RUBBER, METER

37242-307-670

Unavailable

9

COLLAR, METER SETTING

37243-307-670

$2.44

10

RUBBER, METER SETTING

37244-307-670

$2.67

11

CABLE ASSY., TACHOMETER

37260-324-010

Unavailable

13

GUIDE, TACHOMETER CABLE (NOT AVAILABLE)

37262-324-680

Unavailable

14

CABLE ASSY., SPEEDOMETER This part replaces 44830-107-720.

44830-198-901

Unavailable

14

CABLE ASSY., SPEEDOMETER

44830-198-901

Unavailable

16

WASHER (18MM) This part replaces 90581-701-000.

90581-831-650

$1.87

16

WASHER (18MM)

90581-831-650

$1.87

17

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

17

NUT, HEX. (6MM)

94001-06200-0S

$1.49

17

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

18

NUT, HEX. (8MM)

94001-08000-0S

$1.49

19

WASHER, SPRING (8MM)

94111-08000

$1.49
