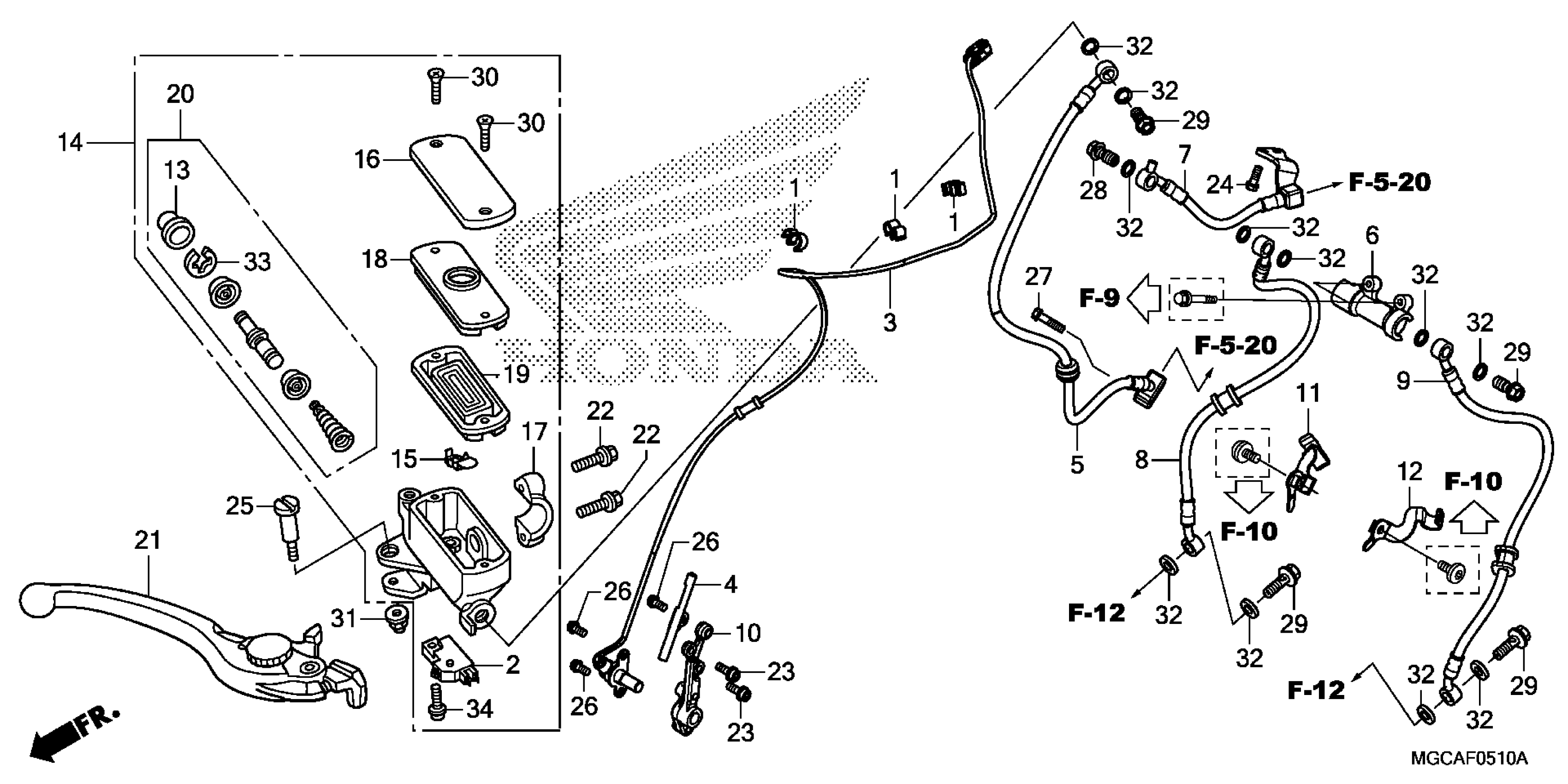

Honda CB1100SAAC (14) MOTORCYCLE, JPN, VIN# JH2SC658-EK000001 FRONT BRAKE MASTER CYLINDER (2) Diagram

CLAMP, PIPE

11152-KS4-003

$6.80

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

SENSOR, FR. WHEEL SPEED

38520-MGC-N31

$187.88

GUIDE, FR. SPEED SENSOR

38522-MGC-N30

$12.32

HOSE A, FR. BRAKE

45125-MGC-N31

$50.75

JOINT (TWO-WAY) (NISSIN) (NOT AVAILABLE)

45127-MA1-003

Unavailable

HOSE, FR. BRAKE

45128-MGC-N31

$25.60

HOSE, R. FR. BRAKE

45129-MGC-N31

$39.18

HOSE, L. FR. BRAKE

45130-MGC-N31

$39.18

BRACKET, SPEED SENSOR | Use up to Frame SN EK000223. This part replaces 45150-MGC-N30.

45150-MGC-N31

$73.25

BRACKET, SPEED SENSOR | Use from Frame SN EK000224.

45150-MGC-N31

$73.25

CLAMP, R. FR. BRAKE

45155-MGC-N30

$11.81

CLAMP, L. FR. BRAKE

45156-MGC-N30

$12.34

BOOT

45504-410-003

$11.17

MASTER CYLINDER SUB-ASSY., FR. (COO) (NISSIN)

45510-MGC-305

$241.13

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER (NISSIN)

45513-MZ8-R41

$26.65

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$9.79

DIAPHRAGM (NISSIN)

45520-MM5-006

$13.87

MASTER CYLINDER SET

45530-MA4-671

$43.86

LEVER ASSY., R. HANDLE

53170-MEJ-016

$40.28

LEVER ASSY., R. HANDLE This part replaces 53170-MEJ-305.

53170-MEJ-016

$40.28

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.32

BOLT, FLANGE SOCKET (6X16)

90101-MGC-N30

$2.38

BOLT, FLANGE (6X16) (SH)

90102-MEA-740

$1.34

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

Unavailable

BOLT, FLANGE (6X12)

90123-MCH-A00

$1.32

BOLT, FLANGE (6X25)

90124-MCH-A00

$1.32

BOLT, OIL (10X34)

90145-MR8-014

$6.72

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.99

SCREW, FLAT (4X12)

90158-MT7-000

$1.99

NUT, CAP (6MM)

90201-415-000

Unavailable

WASHER, OIL BOLT

90545-300-000

$5.79

CIRCLIP

90651-MA5-671

$2.38

SCREW-WASHER (4X12)

93893-04012-07

$1.32

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.32
