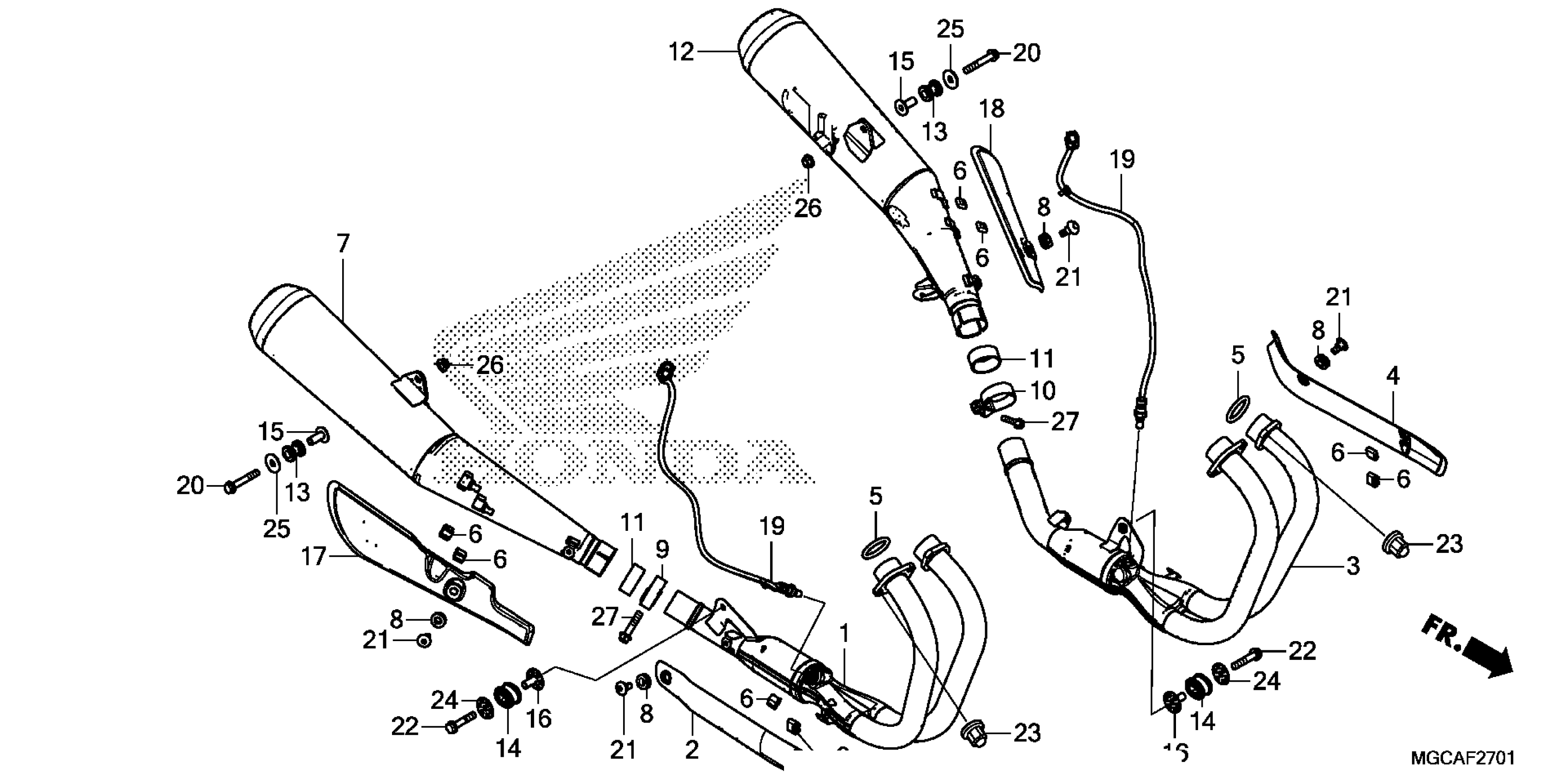

Honda CB1100SAAC (14) MOTORCYCLE, JPN, VIN# JH2SC658-EK000001 EXHAUST MUFFLER (2) Diagram

#

Description
Price

1

PIPE, R. EX.

18150-MGC-N20

$1,016.71

2

PROTECTOR, R. EX.

18151-MGC-N20

$96.30

3

PIPE, L. EX.

18250-MGC-N20

$1,016.71

4

PROTECTOR, L. EX.

18251-MGC-N20

$106.14

5

GASKET, EX. PIPE

18291-MM5-860

$4.81

6

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.87

7

MUFFLER, R. (COO)

18310-MGC-306

$764.19

8

RUBBER, PROTECTOR MOUNTING

18357-MCG-000

$2.78

9

BAND, R. RR. MUFFLER (L. SIDE)

18375-413-000

$36.49

9

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$32.96

10

BAND, R. RR. MUFFLER (L. SIDE)

18375-413-000

$36.49

10

BAND, L. RR. MUFFLER (R. SIDE)

18376-413-000

$32.96

11

GASKET, RR. MUFFLER

18392-MG7-750

$12.26

12

MUFFLER, L. (COO)

18410-MGC-305

$764.19

13

RUBBER, MUFFLER MOUNTING

18421-MBT-D21

$12.93

14

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$16.83

15

COLLAR, MUFFLER MOUNTING

18422-MGC-N20

$7.49

16

COLLAR, EX. PIPE MOUNTING

18423-MGC-N20

$5.81

17

COVER, R. MUFFLER

18425-MGC-N20

$118.57

18

COVER, L. MUFFLER

18525-MGC-N20

$75.83

19

SENSOR, OXYGEN (NGK)

36531-MGC-N21

$238.83

20

BOLT, SPECIAL FLANGE (8X50)

90109-MZ5-000

$6.04

21

SCREW, SPECIAL (6X14)

90114-MCJ-000

$2.29

22

BOLT, SPECIAL FLANGE (8X40)

90122-MM2-000

$3.90

23

NUT, CAP (8MM)

90304-ME1-670

$5.54

24

WASHER (8.5X38)

90501-MGC-N20

$2.96

25

WASHER (8.5X26)

90504-ME4-000

$3.03

26

NUT, FLANGE (8MM)

94050-08040

$1.33

27

BOLT, FLANGE (8X38)

95701-08038-00

$1.38
