Description

Price

1

DAMPER SET, WHEEL

06410-MEJ-670

$60.98

2

SPROCKET, FINAL DRIVEN (40T)

41201-MGC-N20

$104.72

3

AXLE, RR. WHEEL

42301-MGC-000

$77.66

4

COLLAR, L. RR. WHEEL SIDE

42311-MGC-JD0

$24.90

5

COLLAR, R. RR. WHEEL SIDE

42312-MFP-601

$23.21

6

RING, RR. PULSER

42515-MFP-J00

$92.84

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MGC-JD0

$265.34

8

COLLAR, RR. AXLE DISTANCE

42620-MAZ-000

$17.98

9

COLLAR B, RR. WHEEL DISTANCE

42625-MBR-000

$20.67

10

WHEEL SUB-ASSY., RR. (TYPE2)

42650-MGC-JD0ZA

$1,046.62

11

TIRE, RR. (180/55ZR17) (M/C 73W) (BS)

42711-MGC-JD1

$212.30

11

TIRE, RR. (180/55ZR17) (M/C 73W) (DUNLOP)

42711-MGC-JD2

Unavailable

12

VALVE ASSY., CLAMP IN

42755-MKA-D81

$16.58

13

O-RING

42758-MKA-D81

$1.52

14

DISK, RR. BRAKE

43251-MEJ-003

$347.59

15

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.24

15

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.86

15

WEIGHT, BALANCE (20G)

44723-MGH-H21

$4.18

16

BOLT 2, STUD (12X25)

90102-MAS-000

$4.01

17

BOLT, BRAKE DISK (8X24)

90105-MFL-D20

$4.01

18

BOLT, TORX (5X10)

90131-KFK-630

$3.03

19

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

20

NUT, U (22MM)

90306-MFP-N91

$12.15

21

WASHER (22X38X2.5)

90401-MAZ-000

$5.56

22

BEARING, RADIAL BALL (63/28)

91051-MBR-003

$27.72

23

BEARING, RADIAL BALL (6205X2)

91053-MAZ-003

$17.90

24

DUST SEAL (37X68X7)

91251-MBR-003

$16.34

25

DUST SEAL (35X52X7.5)

91254-MJC-A01

$11.18

26

O-RING (69X2)

91302-MS2-003

$4.13

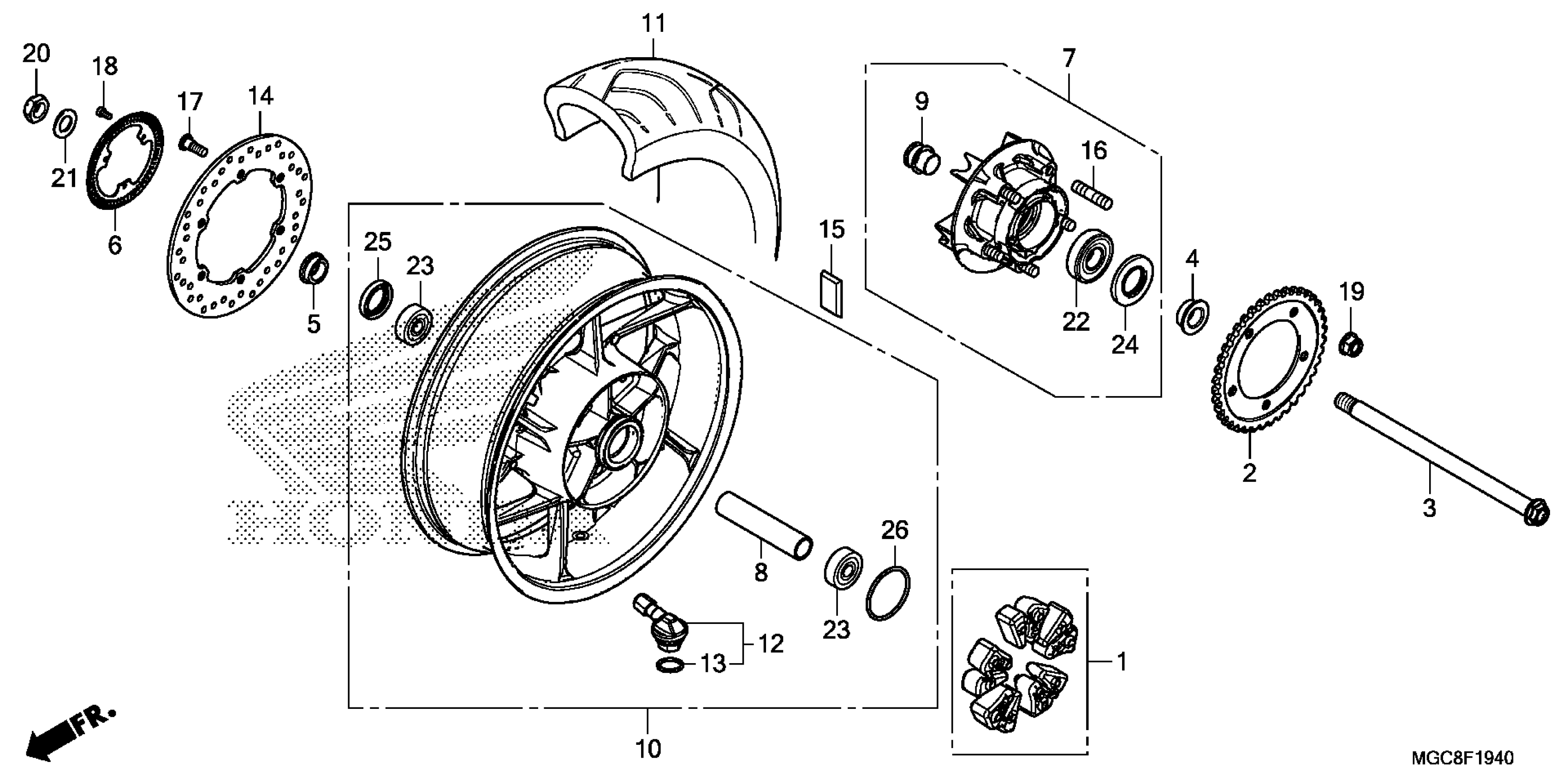

Honda CB1100NAAC (17) CB1100NA, JPN, VIN# JH2SC658-HK200001 TO JH2SC658-HK299999 REAR WHEEL (2) Diagram
