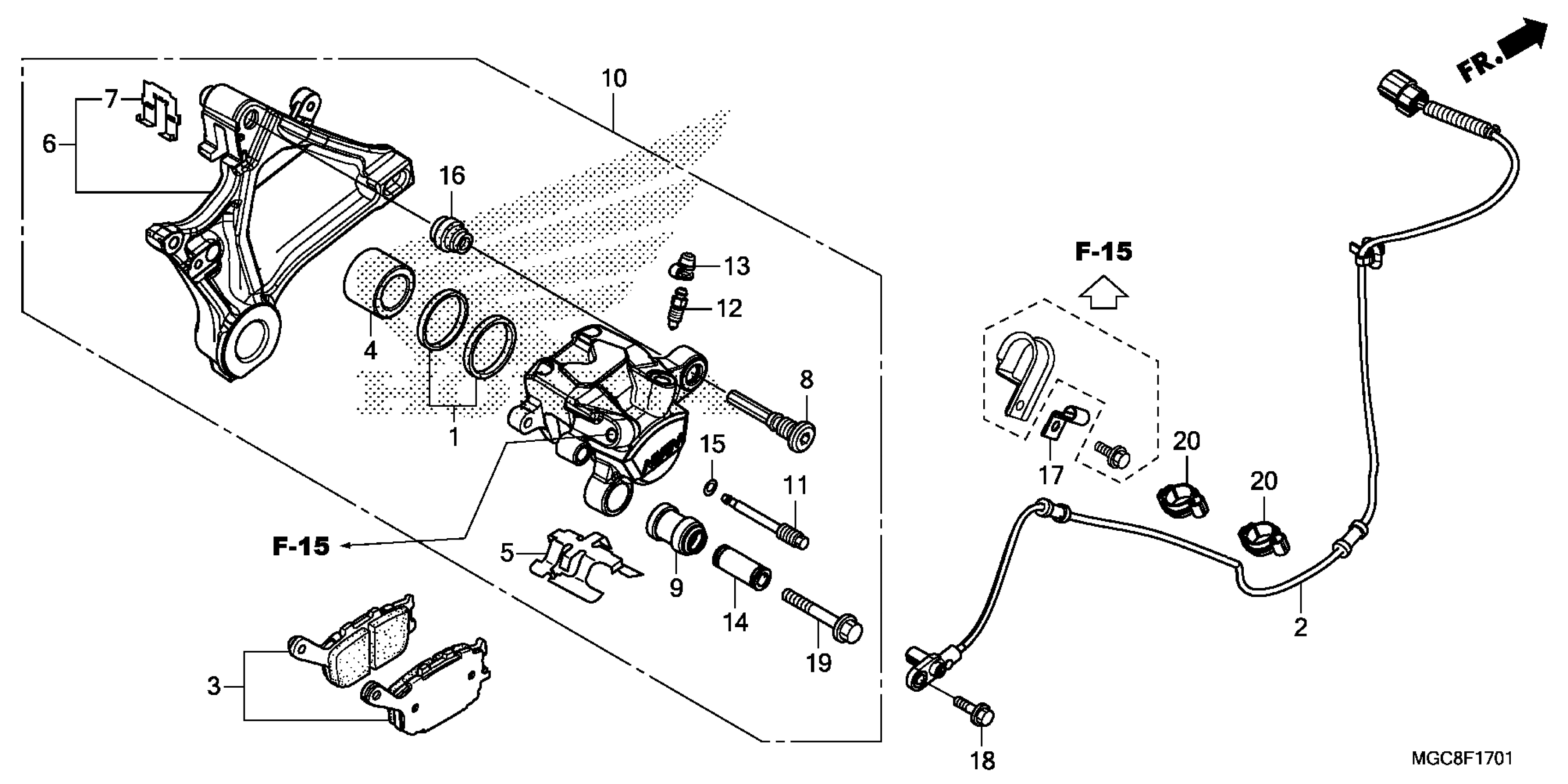

Honda CB1100NAAC (17) CB1100NA, JPN, VIN# JH2SC658-HK200001 TO JH2SC658-HK299999 REAR BRAKE CALIPER (2) Diagram

Description

Price

SEAL SET, PISTON

06451-443-405

$12.15

SENSOR, RR. WHEEL SPEED

38510-MGC-JD1

$189.81

PAD SET, RR.

43105-MW0-425

$47.63

PISTON

43107-KT7-761

$34.77

SPRING, PAD

43108-MBB-006

$5.90

BRACKET, RR.

43110-MGC-JD1

$158.16

RETAINER

43112-MV9-016

$9.79

BOLT, PIN

43131-KW3-006

$9.48

BOOT, SLEEVE

43132-KT7-761

$7.85

CALIPER SUB-ASSY., RR. (NISSIN)

43150-MGC-JD1

$337.25

PIN, HANGER

43215-KZ4-J41

$5.02

SCREW, BLEEDER (NISSIN)

43352-568-003

$9.83

CAP, BLEEDER

43353-461-771

$4.83

SLEEVE

45111-MA3-006

$12.28

RING, STOPPER

45111-MAJ-G41

$3.63

BOOT B

45133-MA3-006

$5.21

CLAMP A, SENSOR CORD

45157-MEJ-J00

$3.26

BOLT, FLANGE (6X14)

90117-MJP-G60

$2.04

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80

CLIP, CABLE (12MM)

90690-MGS-D81

$2.06
