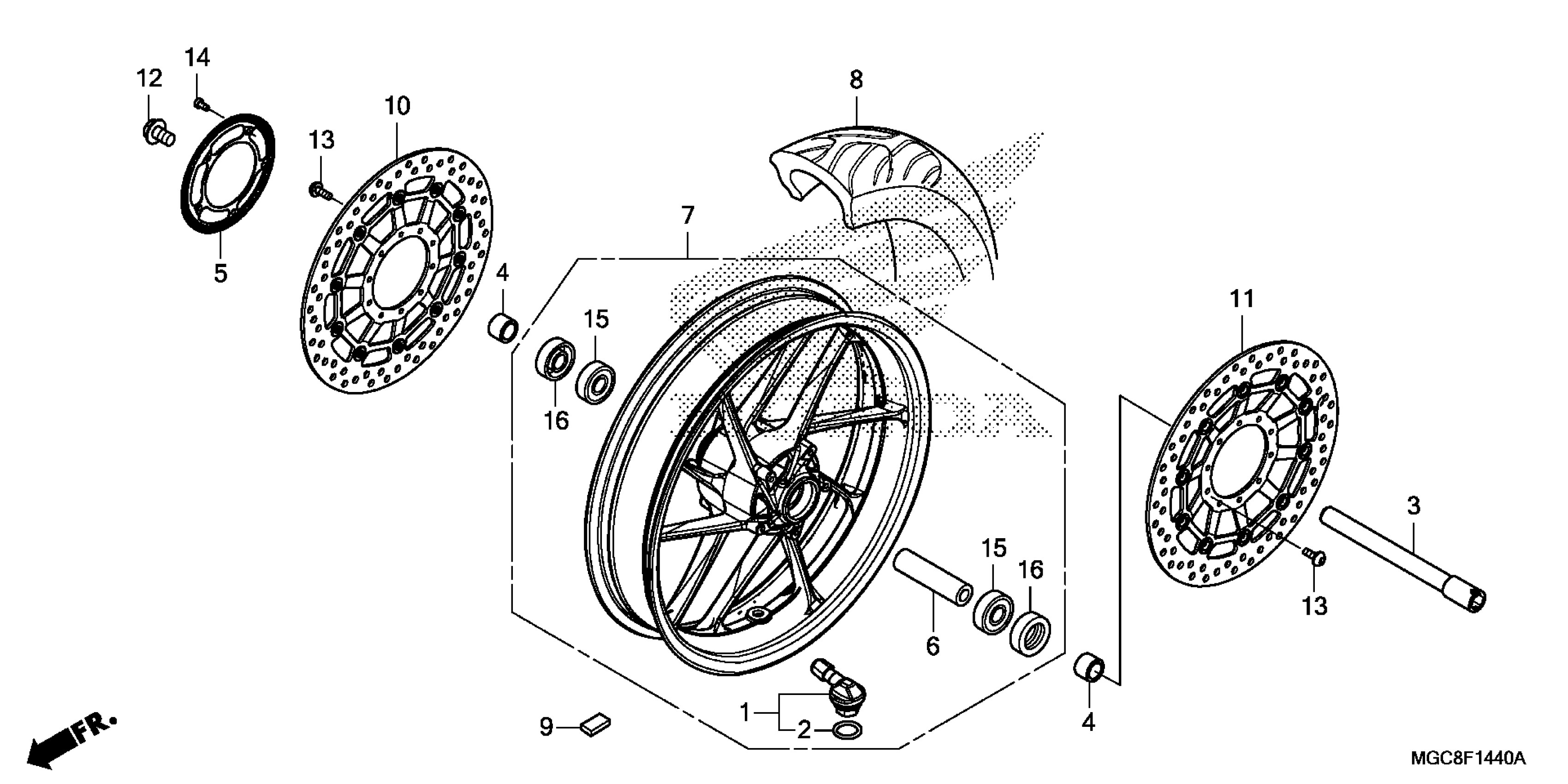

Honda CB1100NAAC (17) CB1100NA, JPN, VIN# JH2SC658-HK200001 TO JH2SC658-HK299999 FRONT WHEEL (2) Diagram

VALVE ASSY., CLAMP IN

42755-MKA-D81

$16.58

O-RING

42758-MKA-D81

$1.52

AXLE, FR. WHEEL

44301-MJM-D60

$56.92

COLLAR, L. FR. WHEEL SIDE (BOTH SIDES)

44312-MCE-950

$10.72

RING, FR. PULSER

44515-MGC-JD0

$46.16

COLLAR, FR. AXLE DISTANCE

44620-MGC-N20

$14.92

WHEEL SUB-ASSY., FR. (TYPE2)

44650-MGC-JD0ZA

$880.59

TIRE, FR. (120/70ZR17) (M/C 58W) (BS)

44711-MGC-JD1

$190.88

TIRE, FR. (120/70ZR17) (M/C 58W) (DUNLOP)

44711-MGC-JD2

Unavailable

WEIGHT, BALANCE (10G)

44721-MGH-H21

$3.24

WEIGHT, BALANCE (15G)

44722-MGH-H21

$3.86

WEIGHT, BALANCE (20G)

44723-MGH-H21

$4.18

DISK, R. FR. BRAKE

45120-MGC-JD1

$595.43

DISK, L. FR. BRAKE

45220-MGC-JD1

$595.43

BOLT, FR. AXLE

90105-MBT-610

$5.76

BOLT, BRAKE DISK (6X17)

90106-MFL-D20

$2.48

BOLT, TORX (5X10)

90131-KFK-630

$3.03

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$12.93

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.98
