Description

Price

1

REFLECTOR, FR. REFLEX (AMBER)

33741-KTG-U01

$6.36

2

FORK ASSY., R. FR. (SHOWA)

51400-MGC-JD1

$829.49

3

SPRING, R. FR.

51401-MGC-JD1

$71.57

4

COLLAR, SPRING (SHOWA) (R. SIDE)

51402-MN8-911

$18.54

5

COLLAR, SPRING (L. SIDE)

51402-MV8-901

$17.70

6

SEAT, SPRING

51405-KA4-711

$6.23

7

PIPE, FR. FORK (SHOWA)

51410-MGC-JD1

$349.21

8

RING, BACK-UP

51412-KA4-711

$9.65

9

BUSH, GUIDE

51414-MFN-D01

$7.08

10

BUSH, SLIDER

51415-MFN-D01

$31.52

11

SPRING, FR. REBOUND

51416-MFR-671

$8.30

12

CASE, R. (LOWER) (SHOWA)

51420-MGC-JD1

$481.69

13

PIECE, OIL LOCK

51432-MV4-003

$14.02

14

RING, PISTON (SHOWA)

51437-MGC-JD1

$7.56

15

PIPE, SEAT (SHOWA)

51440-MGC-JD1

$45.74

16

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

17

BOLT ASSY., FR. FORK (SHOWA)

51450-MGC-JD1

$66.43

18

SEAL SET, FR. FORK

51490-MFL-003

$19.85

19

FORK ASSY., L. FR. (SHOWA)

51500-MGC-JD1

$829.49

20

SPRING, L. FR.

51501-MGC-JD1

$93.46

21

CASE, L. (LOWER) (SHOWA)

51520-MGC-JD1

$481.69

22

STAY, R. FR. REFLECTOR

61101-MGC-DC0

$12.26

23

STAY, L. FR. REFLECTOR

61104-MGC-DC0

$12.26

24

BOLT, FLANGE (6X12) (L. SIDE ONLY)

90013-GHB-610

$2.33

25

BOLT, SOCKET (8X45)

90109-MBT-611

$3.79

26

BOLT, SOCKET (8X27) BOLT, SOCKET (8MM) (SHOWA)

90116-383-721

$5.13

27

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

28

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

29

DUST SEAL

91254-MEJ-013

$12.93

30

O-RING (35.2X2.4)

91356-KA4-711

$3.76

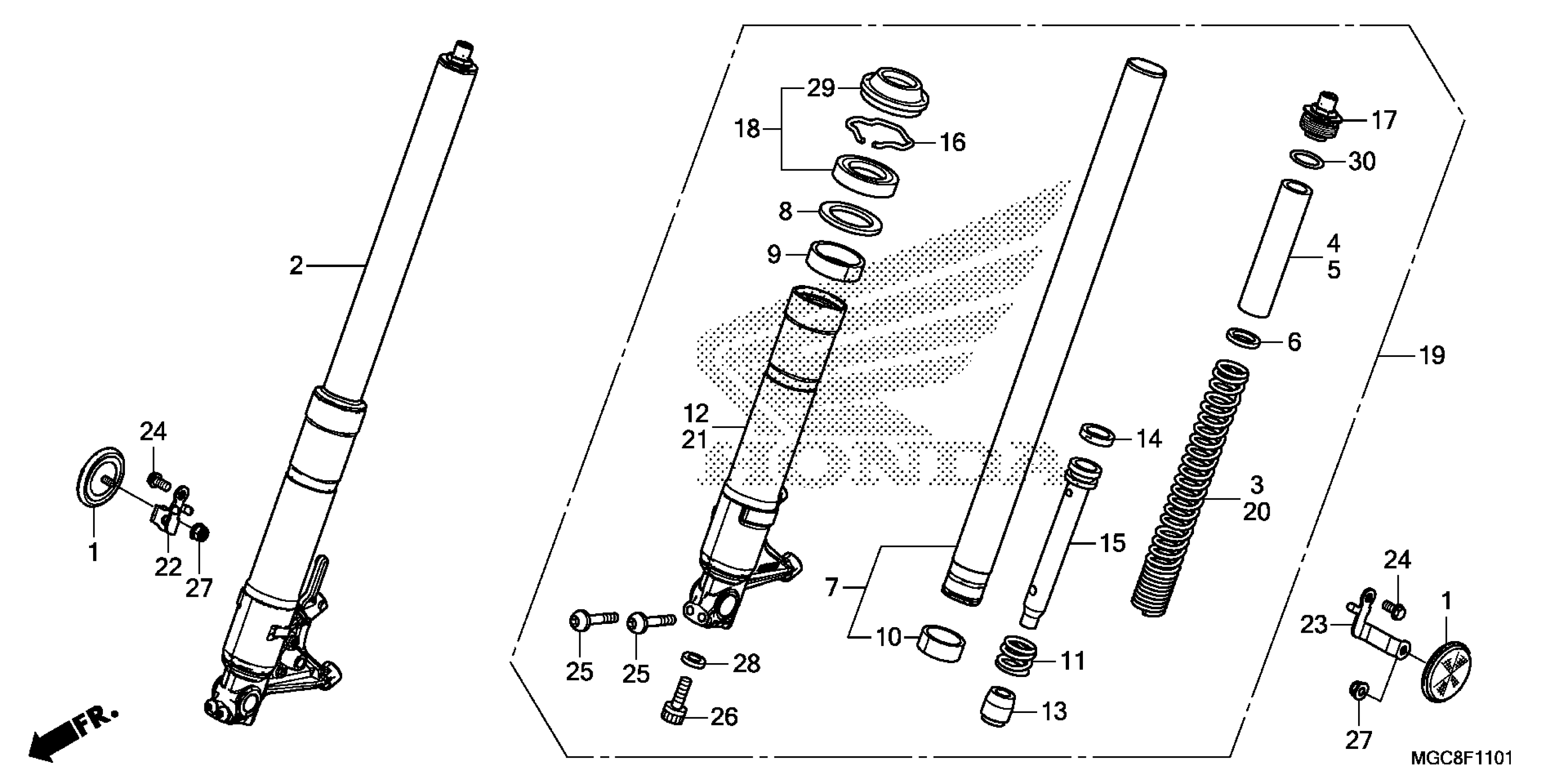

Honda CB1100NAAC (17) CB1100NA, JPN, VIN# JH2SC658-HK200001 TO JH2SC658-HK299999 FRONT FORK (2) Diagram
