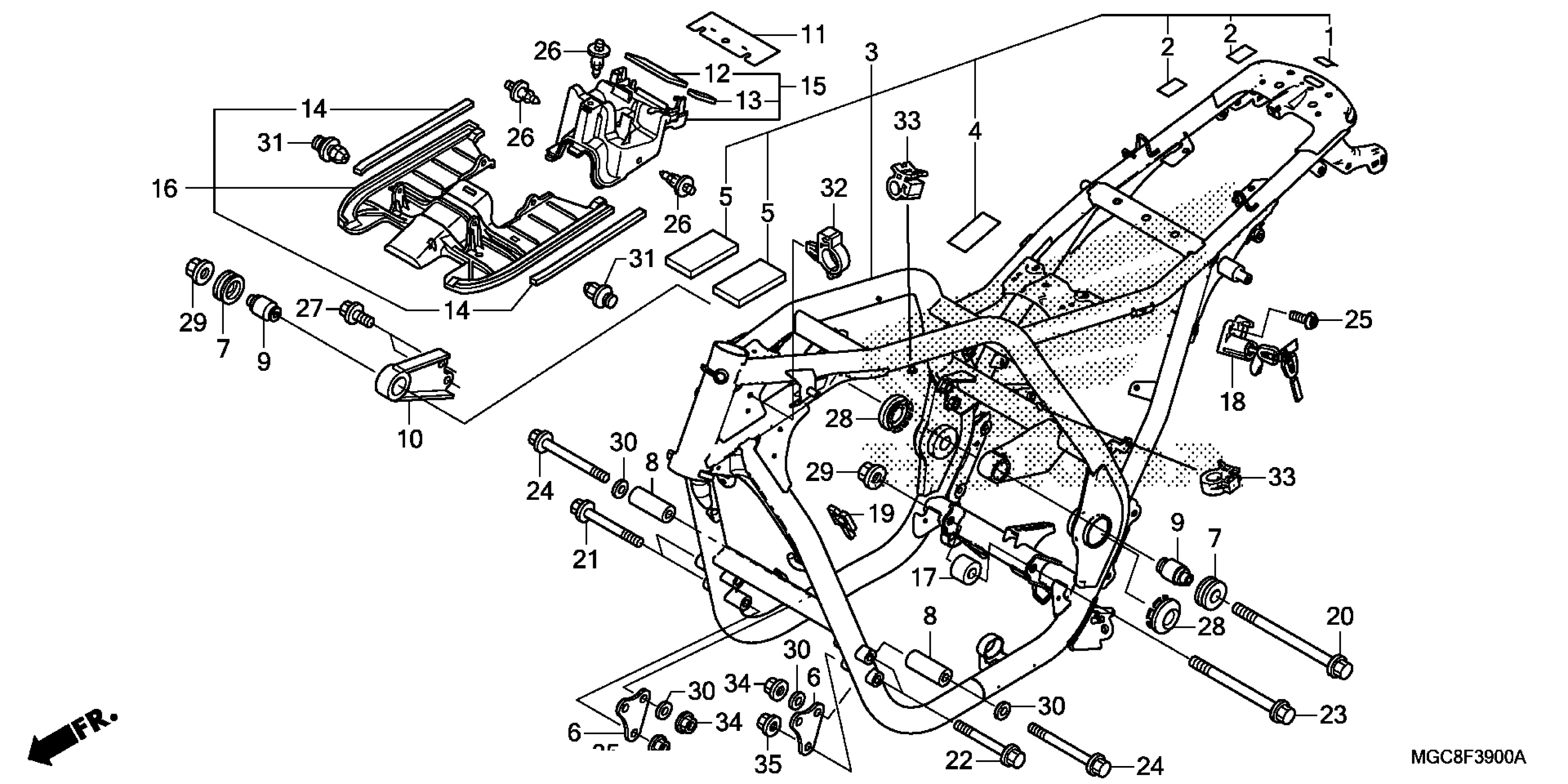

Honda CB1100NAAC (17) CB1100NA, JPN, VIN# JH2SC658-HK200001 TO JH2SC658-HK299999 FRAME Diagram

FILM, PROTECTOR

17503-KCM-620

$3.75

TAPE, TANK GUARD

17528-MR4-900

$2.33

FRAME SET *NH1* (BLACK)

50010-MGC-JB0ZA

$2,669.15

FILM, FRAME PIPE (UPPER) SCREW-WASHER (5X25)

50159-KR3-300

$4.16

MAT, FRAME

50177-MGC-300

$3.08

PLATE A, ENGINE HANGER

50201-MGC-N20

$10.89

RUBBER C, MOUNTING

50203-MEJ-000

$14.07

COLLAR A, ENGINE MOUNTING

50203-MGC-N20

$16.16

RUBBER E, MOUNTING

50205-MEJ-000

$10.97

BRACKET B, R. ENGINE HANGER

50216-MGC-A20

$35.20

GUARD, ECU

50334-MGC-000

$7.97

SPONGE A, ECU BOX

50335-MGC-300

$4.30

SPONGE B, ECU BOX

50336-MGC-300

$1.49

MAT, HEAT GUARD

50337-MGC-JB0

$2.48

BOX SET, ECU

50340-MGC-010

$20.36

GUARD SET, HEAT

50341-MGC-JB0

$28.61

COLLAR, RR. ENGINE HANGER

50357-MEJ-000

$7.23

HOLDER ASSY., HELMET (HONDALOCK)

50710-MGC-JB1

$57.66

E-CLIP, WIRE HARNESS

80111-KE5-000

$2.78

BOLT, FLANGE (12X250)

90102-MGC-JB0

$17.95

BOLT, FLANGE (10X100)

90103-MGC-JB0

$7.26

BOLT, FLANGE (10X85)

90104-MGC-JB0

$7.26

BOLT, FLANGE (12X193)

90106-MGC-JB0

$19.49

BOLT, FLANGE (10X115)

90107-MGC-N20

$8.52

BOLT, ONE-WAY (6X14)

90108-MGC-JB1

$3.15

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

BOLT, FLANGE (10X20)

90165-GHB-650

$3.07

CAP B, PIVOT

90306-MBR-000

$21.92

NUT, FLANGE (12MM)

90364-MEJ-000

$1.72

WASHER, SPECIAL (11X28)

90451-PE2-000

$10.79

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

CLIP, CLUTCH HOSE

90681-MGC-JB1

$2.90

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.18

NUT, FLANGE (10MM)

94050-10000

$1.59

NUT, FLANGE (10MM)

90303-428-900

$3.35

NUT, FLANGE (10MM) This part replaces 94050-10070.

90303-428-900

$3.35
