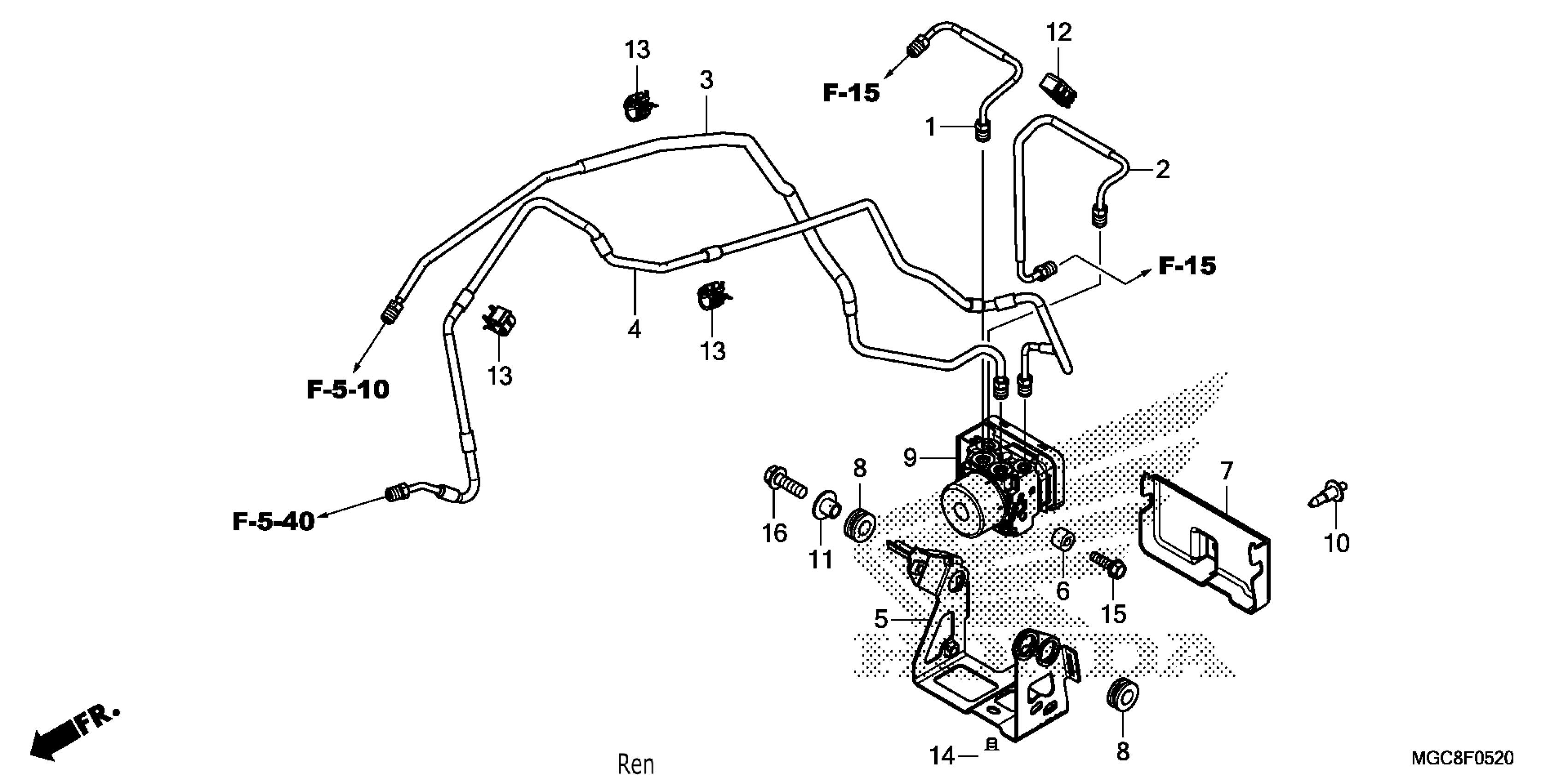

Honda CB1100NAAC (17) CB1100NA, JPN, VIN# JH2SC658-HK200001 TO JH2SC658-HK299999 ABS MODULATOR Diagram

PIPE A, RR. BRAKE

43311-MGC-JB0

$12.90

PIPE B, RR. BRAKE

43312-MGC-JB0

$17.99

PIPE A, FR. BRAKE

45126-MGC-JB0

$31.62

PIPE B, FR. BRAKE

45127-MGC-JB0

$47.43

BRACKET, MODULATOR

50210-MGC-JB0

$67.96

COLLAR, MODULATER

50211-MGC-JB0

$3.99

SPLASH GUARD, RR.

50220-MGC-JD0

$13.97

RUBBER, BATTERY BOX MOUNTING

50329-HA7-670

$2.80

MODULATOR ASSY.

57110-MGC-JD2

$1,049.28

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

COLLAR (8.8X11)

90551-MG7-000

$5.54

CLIP, BRAKE PIPE (6.9X2)

90661-KVK-B11

$4.03

CLIP, CABLE (10MM) CLIP, CABLE (8MM)

90690-GHB-641

$2.01

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.16

BOLT, FLANGE (6X20) BOLT, SPECIAL FLANGE (6X22)

95701-06020-00

$1.63

BOLT, FLANGE (8X25)

95701-08025-00

$1.65
