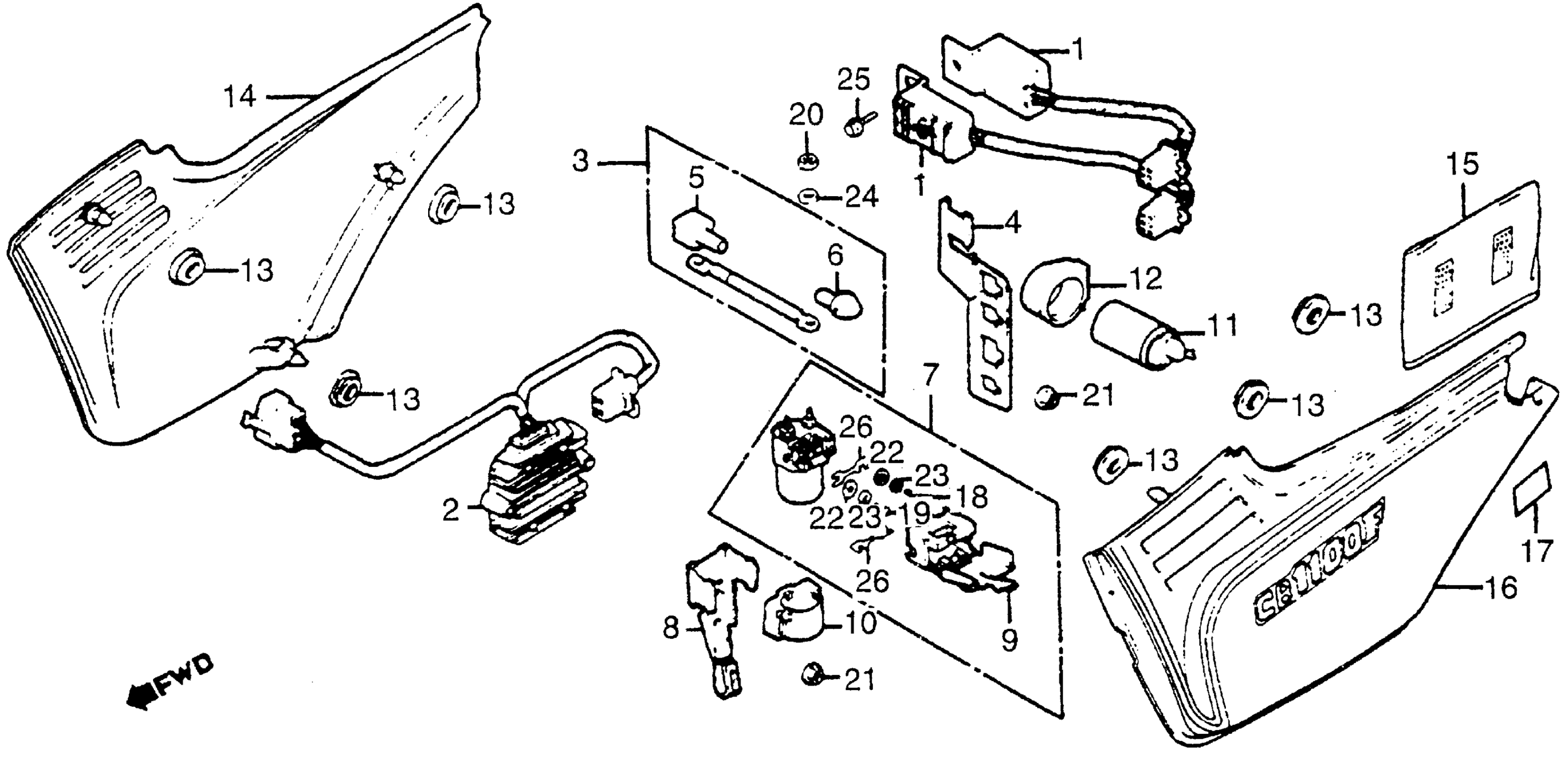

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 SIDE COVER + SPARK UNIT + RECTIFIER Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE)

30400-MA4-601

Unavailable

1

MODULE, IGNITION CONTROL (CDI) (OKI) (NOT AVAILABLE) This part replaces 30400-461-155.

30400-MA4-601

Unavailable

2

RECTIFIER ASSY., REGULATE (NOT AVAILABLE) This part replaces 31600-MG5-000.

31600-MA7-008

Unavailable

3

CABLE, STARTER BATTERY

32401-425-010

Unavailable

4

HOLDER, CONNECTOR (NOT AVAILABLE)

32412-425-000

Unavailable

5

COVER B, TERMINAL (NOT AVAILABLE)

32414-425-000

Unavailable

5

COVER B, TERMINAL (NOT AVAILABLE)

32414-425-910

Unavailable

6

COVER A, MAGNETIC SWITCH

32415-425-000

$3.30

7

SWITCH ASSY., STARTER MAGNETIC

35850-MB0-007

$131.64

8

STAY, STARTER MAGNETIC SWITCH (NOT AVAILABLE)

35851-MA3-660

Unavailable

9

COVER, FUSE

35852-MB0-007

Unavailable

10

RUBBER, SHOCK ABSORBER

35856-MB0-007

Unavailable

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MB0-004.

38301-KK9-952

$67.94

11

RELAY, TURN SIGNAL (MITSUBA) This part replaces 38301-MG9-681.

38301-KK9-952

$67.94

12

SUSPENSION, TURN SIGNAL RELAY

38306-KB4-010

Unavailable

12

SUSPENSION, TURN SIGNAL RELAY This part replaces 38306-438-000.

38306-KB4-010

Unavailable

13

GROMMET, AIR CLEANER HOUSING

83551-300-000

$3.67

14

COVER ASSY., R. SIDE *R125CA* (CANDY PEARL MAUI RED) (NOT AVAILABLE)

83630-MG5-670ZA

Unavailable

14

COVER ASSY., R. SIDE *PB126CA* (CANDY PEARL KAPIOLANI BLUE) (NOT AVAILABLE)

83630-MG5-670ZB

Unavailable

15

BAG, OWNER'S MANUAL

83642-355-000

$26.87

16

COVER ASSY., L. SIDE *R125CA* (CANDY PEARL MAUI RED) (NOT AVAILABLE)

83730-MG5-670ZA

Unavailable

16

COVER ASSY., L. SIDE *PB126CA* (CANDY PEARL KAPIOLANI BLUE) (NOT AVAILABLE)

83730-MG5-670ZB

Unavailable

17

LABEL, HELMET HOLDER

87511-323-670

$2.72

18

SCREW, PAN (4X6)

93500-04006-0H

$1.49

18

SCREW, PAN (4X6) This part replaces 93500-04006-1H.

93500-04006-0H

$1.49

19

SCREW, PAN (4X10)

93500-04010-0H

$1.49

19

SCREW, PAN (4X10) This part replaces 93500-04010-1H.

93500-04010-0H

$1.49

20

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.49

20

NUT, HEX. (6MM)

94002-06000-0S

$1.49

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

WASHER, PLAIN (4MM)

94101-04800

$1.49

23

WASHER, SPRING (4MM)

94111-04800

$1.49

24

WASHER, SPRING (6MM)

94111-06000

$1.49

25

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

25

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

26

FUSE F (30A)

98200-53000

$1.49
