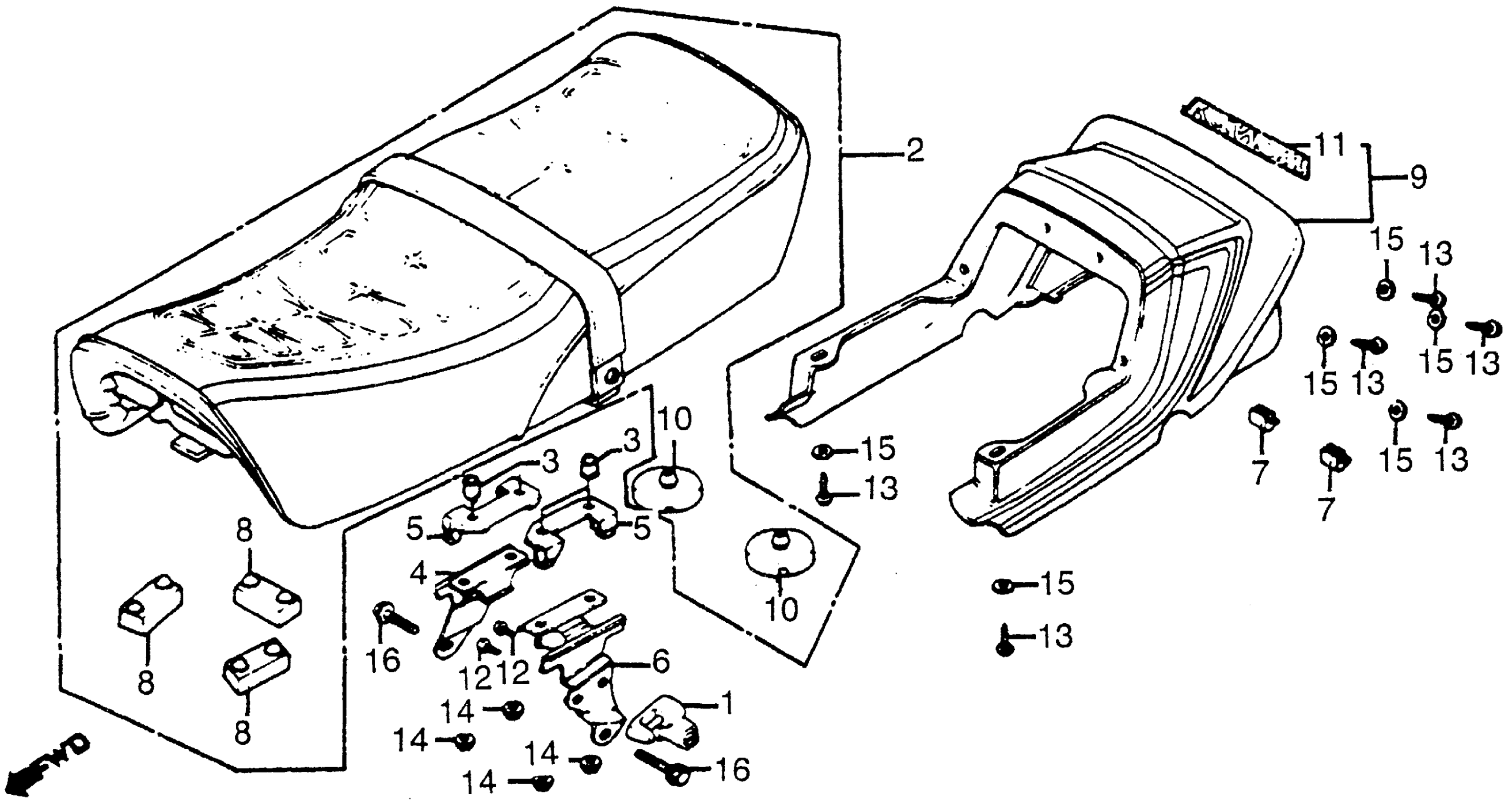

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 SEAT Diagram

#

Description
Price

1

HOLDER ASSY., HELMET (HONDALOCK)

50710-086-007

$70.34

1

HOLDER ASSY., HELMET (HONDALOCK) This part replaces 50710-371-007.

50710-086-007

$70.34

2

SEAT This part replaces 77100-445-841.

77100-MG5-640

Unavailable

3

COLLAR, RR. SEAT STAY (NOT AVAILABLE)

77121-438-000

Unavailable

4

STAY, R. RR. SEAT (NOT AVAILABLE)

77130-438-000

Unavailable

5

PLATE, SEAT STOPPER (NOT AVAILABLE)

77131-438-000

Unavailable

6

STAY, L. RR. SEAT (NOT AVAILABLE)

77140-438-000

Unavailable

7

RUBBER, RR. COWL STOPPER (NOT AVAILABLE)

77203-438-000

Unavailable

8

RUBBER B, SEAT SETTING

77205-286-000

$5.28

9

COWL ASSY., RR. *R125CA* (CANDY PEARL MAUI RED) (NOT AVAILABLE)

77210-MG5-670ZA

Unavailable

9

COWL ASSY., RR. *PB126CA* (CANDY PEARL KAPIOLANI BLUE) (NOT AVAILABLE)

77210-MG5-670ZB

Unavailable

10

RUBBER, SEAT STOPPER

77211-438-000

Unavailable

11

MARK, RR. COWL (TYPE1)

87110-MJ0-630ZA

Unavailable

11

MARK, RR. COWL (TYPE1) This part replaces 87127-438-300.

87110-MJ0-630ZA

Unavailable

12

SCREW-WASHER (6X10)

93892-06010-00

$1.49

13

SCREW, TAPPING (5X8)

93901-25020

$1.49

14

NUT, FLANGE (6MM)

94050-06000

$1.49

15

WASHER, PLAIN (5MM)

94101-05800

$1.49

16

BOLT, FLANGE (8X16) This part replaces 95700-08016-00.

95701-08016-00

$1.80

16

BOLT, FLANGE (8X16)

95701-08016-00

$1.80
