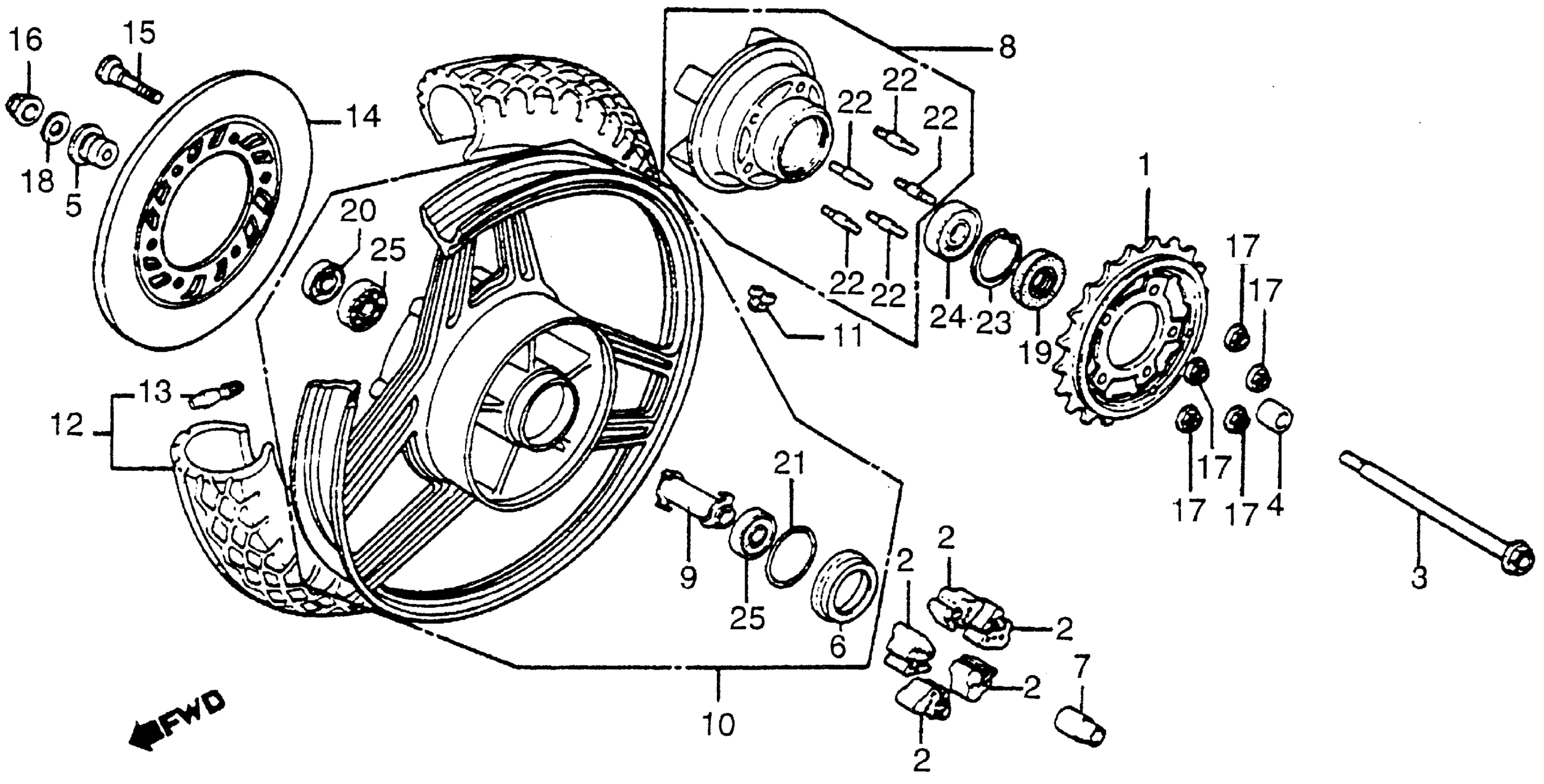

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (42T) This part replaces 41200-MG5-670.

41200-MZ2-890

Unavailable

1

SPROCKET, FINAL DRIVEN (42T)

41200-MZ2-890

Unavailable

2

DAMPER, RR. WHEEL

41241-422-000

Unavailable

3

AXLE, RR. WHEEL (NOT AVAILABLE)

42301-MG5-670

Unavailable

4

COLLAR, RR. WHEEL SIDE

42311-MG5-670

$16.43

5

COLLAR, RR. BRAKE PANEL SIDE

42313-422-000

$38.23

6

SLEEVE, RR. WHEEL HUB

42604-438-710

Unavailable

7

SLEEVE, RR. AXLE

42605-393-000

Unavailable

8

FLANGE, FINAL DRIVEN

42610-MG5-670

Unavailable

9

COLLAR, RR. AXLE DISTANCE (NOT AVAILABLE)

42620-422-010

Unavailable

10

WHEEL, RR.

42650-MG5-670

Unavailable

11

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.74

11

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$15.38

11

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$14.48

11

WEIGHT, BALANCE (30)

42706-MCF-D60

$14.48

12

TIRE ASSY., RR. (130/90V17) (BS) (NOT AVAILABLE)

42710-MG5-671

Unavailable

12

TIRE ASSY., RR. (130/90V17) (DUNLOP) (NOT AVAILABLE)

42710-MG5-672

Unavailable

13

VALVE, RIM (BS)

42753-425-003

$11.00

13

VALVE, RIM (BS) This part replaces 42753-425-004.

42753-425-003

$11.00

14

DISK, RR. BRAKE

43351-MB2-000

Unavailable

14

DISK, RR. BRAKE This part replaces 43351-MG5-670.

43351-MB2-000

Unavailable

15

BOLT, FR. DISK (8X33) This part replaces 90105-MB0-000.

90105-MB0-010

Unavailable

15

BOLT, FR. DISK (8X33)

90105-MB0-010

Unavailable

16

NUT, AXLE (18MM)

90305-KA4-003

Unavailable

17

NUT, FLANGE (12MM)

90309-375-003

$8.61

18

WASHER, PLAIN (18MM)

90501-MG5-670

$10.18

19

OIL SEAL (34X62.2X7)

90753-MG5-670

$12.86

20

DUST SEAL (30X52X7)

91253-442-003

$13.96

21

O-RING (66X3.6)

91258-438-711

Unavailable

22

BOLT, STUD (12X55)

92716-12055-0E

Unavailable

23

CIRCLIP (INNER) (62MM)

94520-62000

$2.13

24

BEARING, RADIAL BALL (6305U)

96140-63050-10

Unavailable

25

BEARING, RADIAL BALL (6304UU)

96150-63040-10

$18.04
