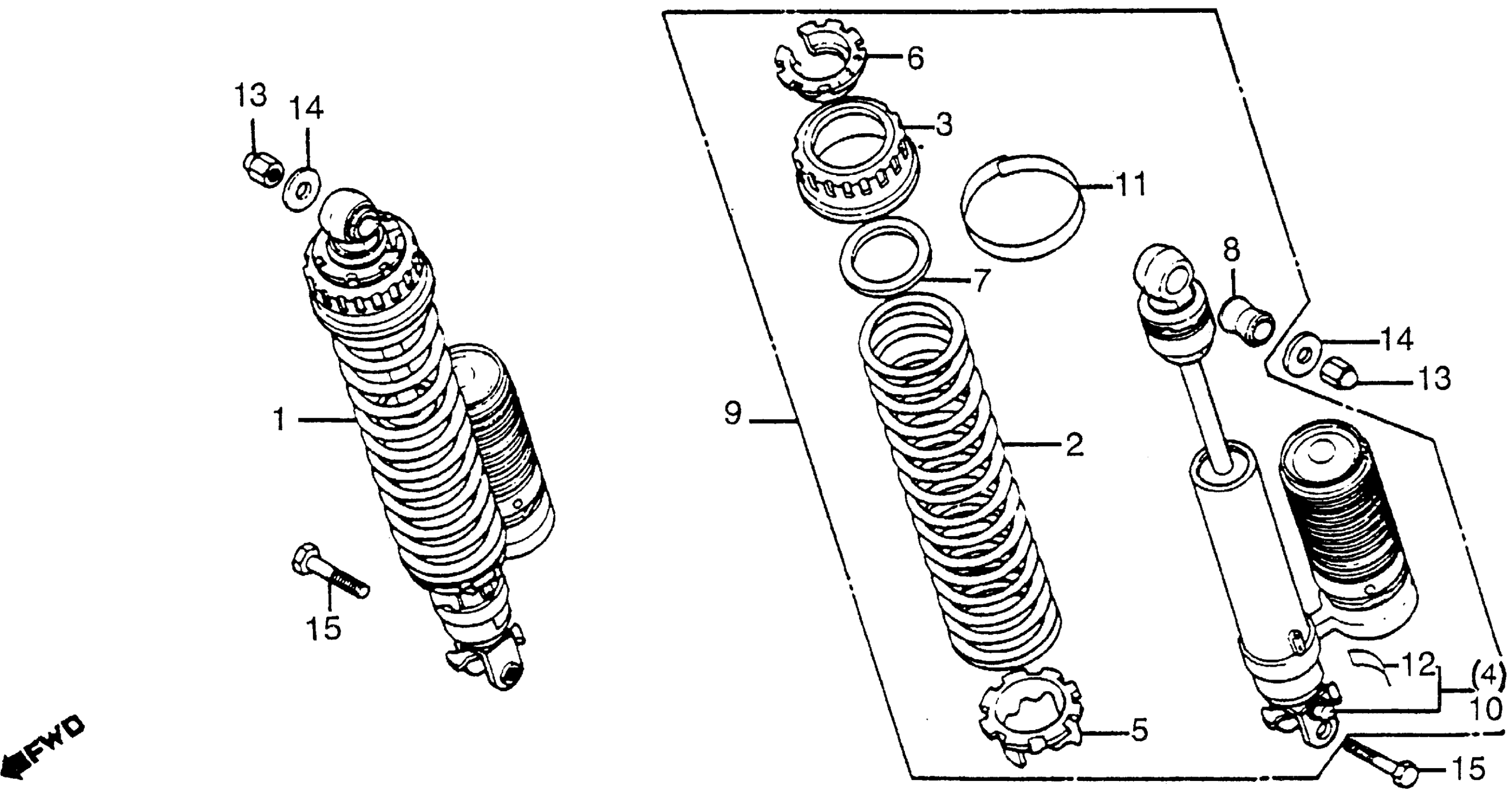

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 REAR SHOCK ABSORBER Diagram

SHOCK ABSORBER ASSY., R. RR. (NOT AVAILABLE)

52400-MG5-671

Unavailable

SPRING, RR. SHOCK ABSORBER (NOT AVAILABLE)

52401-438-612

Unavailable

COVER, SPRING (NOT AVAILABLE)

52402-MG5-671

Unavailable

DAMPER, R. RR. (NOT AVAILABLE)

52410-MG5-671

Unavailable

ADJUSTER, SPRING (NOT AVAILABLE)

52422-422-003

Unavailable

SEAT, SPRING (NOT AVAILABLE)

52451-422-611

Unavailable

PROTECTOR, COVER (NOT AVAILABLE)

52452-MG5-671

Unavailable

RUBBER, JOINT

52484-292-000

$5.87

SHOCK ABSORBER ASSY., L. RR. (NOT AVAILABLE)

52500-MG5-671

Unavailable

DAMPER, L. RR.

52510-MG5-671

Unavailable

LABEL A (NOT AVAILABLE)

52758-438-670

Unavailable

LABEL B (NOT AVAILABLE)

52759-438-670

Unavailable

NUT, FLANGE (10MM)

90309-315-000

$5.35

WASHER (10.3MM)

90521-292-000

$3.42

BOLT, HEX. (10X32) This part replaces 93000-10032-0A.

93101-10032-0A

Unavailable
