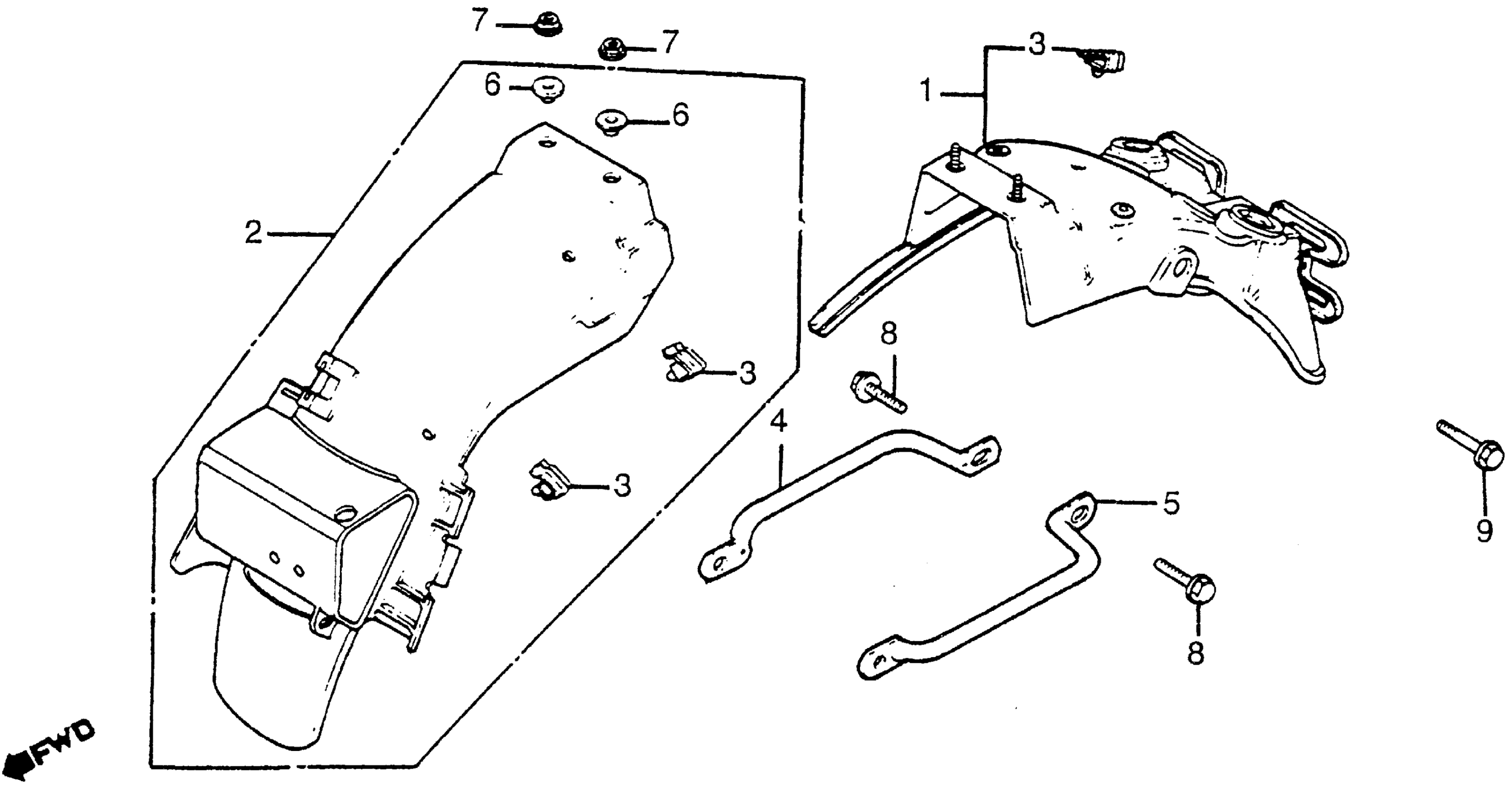

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 REAR FENDER Diagram

#

Description

Price

1

FENDER A, RR. NH105 (MAT BLACK) (NOT AVAILABLE)

80100-445-671ZA

Unavailable

2

FENDER B, RR.

80105-MG5-670

Unavailable

3

CLAMP, CABLE

80110-147-000

$2.64

4

PIPE, R. RR. GRIP

84100-MG5-670

Unavailable

5

PIPE, L. RR. GRIP (NOT AVAILABLE)

84200-MG5-670

Unavailable

6

WASHER (6X20)

90512-300-000

$3.08

7

NUT, FLANGE (6MM)

94050-06000

$1.49

8

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

8

BOLT, FLANGE (8X20)

95701-08020-07

$1.87

9

BOLT, FLANGE (8X25) This part replaces 95700-08025-07.

95701-08025-07

$1.49

9

BOLT, FLANGE (8X25)

95701-08025-07

$1.49
