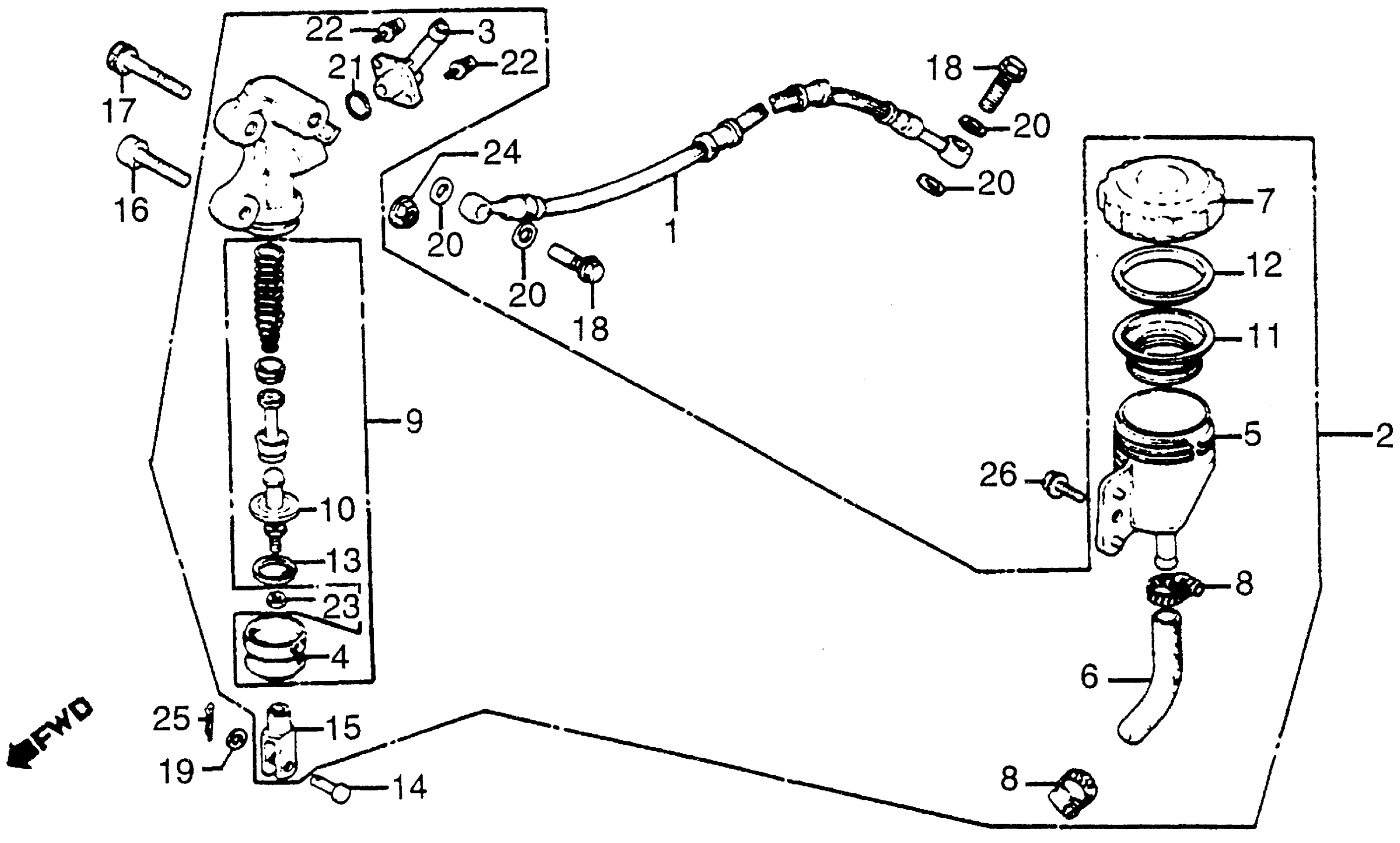

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 REAR BRAKE MASTER CYL. Diagram

#

Description
Price

1

HOSE, RR. BRAKE This part replaces 43310-MG5-671.

43310-MG5-672

Unavailable

2

MASTER CYLINDER ASSY., RR. (NISSHIN) (NA USE ALT:43510-MA5-P10) This part replaces 43500-MG5-671.

43500-MG5-672

Unavailable

2

MASTER CYLINDER ASSY., RR. (NISSHIN) (NA USE ALT:43510-MA5-P10)

43500-MG5-672

Unavailable

2

MASTER CYLINDER ASSY., RR. (NISSHIN) (NA USE ALT:43510-MA5-P10) This part replaces 43500-445-633.

43500-MG5-672

Unavailable

3

CONNECTOR, MASTER CYLINDER

43503-422-006

Unavailable

4

BOOT, MASTER CYLINDER

43504-371-013

$9.54

5

CUP, MASTER CYLINDER OIL

43511-461-006

Unavailable

6

HOSE, MASTER CYLINDER OIL This part replaces 43512-MG5-672.

43512-438-026

Unavailable

6

HOSE, MASTER CYLINDER OIL

43512-438-026

Unavailable

7

CAP, OIL CUP

43513-MJ6-006

Unavailable

7

CAP, OIL CUP This part replaces 43513-461-771.

43513-MJ6-006

Unavailable

8

CLAMP, MASTER CYLINDER OIL HOSE

43514-445-771

$12.27

9

MASTER CYLINDER SET

43520-461-771

Unavailable

10

ROD, PUSH (NOT AVAILABLE)

43530-461-771

Unavailable

11

DIAPHRAGM

45520-300-000

$9.05

12

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

12

PLATE, DIAPHRAGM This part replaces 45521-300-010.

45521-MJ6-006

$4.06

13

CIRCLIP, MASTER CYLINDER

46182-500-013

$4.90

14

PIN, BRAKE ROD

46503-371-000

Unavailable

15

JOINT, BRAKE ROD (NOT AVAILABLE)

46504-445-771

Unavailable

16

BOLT, SOCKET (8X38) (NOT AVAILABLE)

90105-438-000

Unavailable

17

BOLT, SOCKET (8X48) (NOT AVAILABLE)

90106-438-000

Unavailable

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

18

BOLT, OIL (10X22)

90145-KM3-751

$11.02

18

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

18

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

19

WASHER (7X12)

90501-310-000

$1.74

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

O-RING (14.8X2.4)

91212-422-006

$2.56

22

SCREW-WASHER (4X12)

93893-04012-08

$1.49

22

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

23

NUT, HEX. (8MM)

94002-08000-0S

$1.49

24

NUT, FLANGE (8MM)

94050-08000

$1.49

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

25

PIN, COTTER (1.6X25)

94201-16250

$1.49

26

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

26

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
