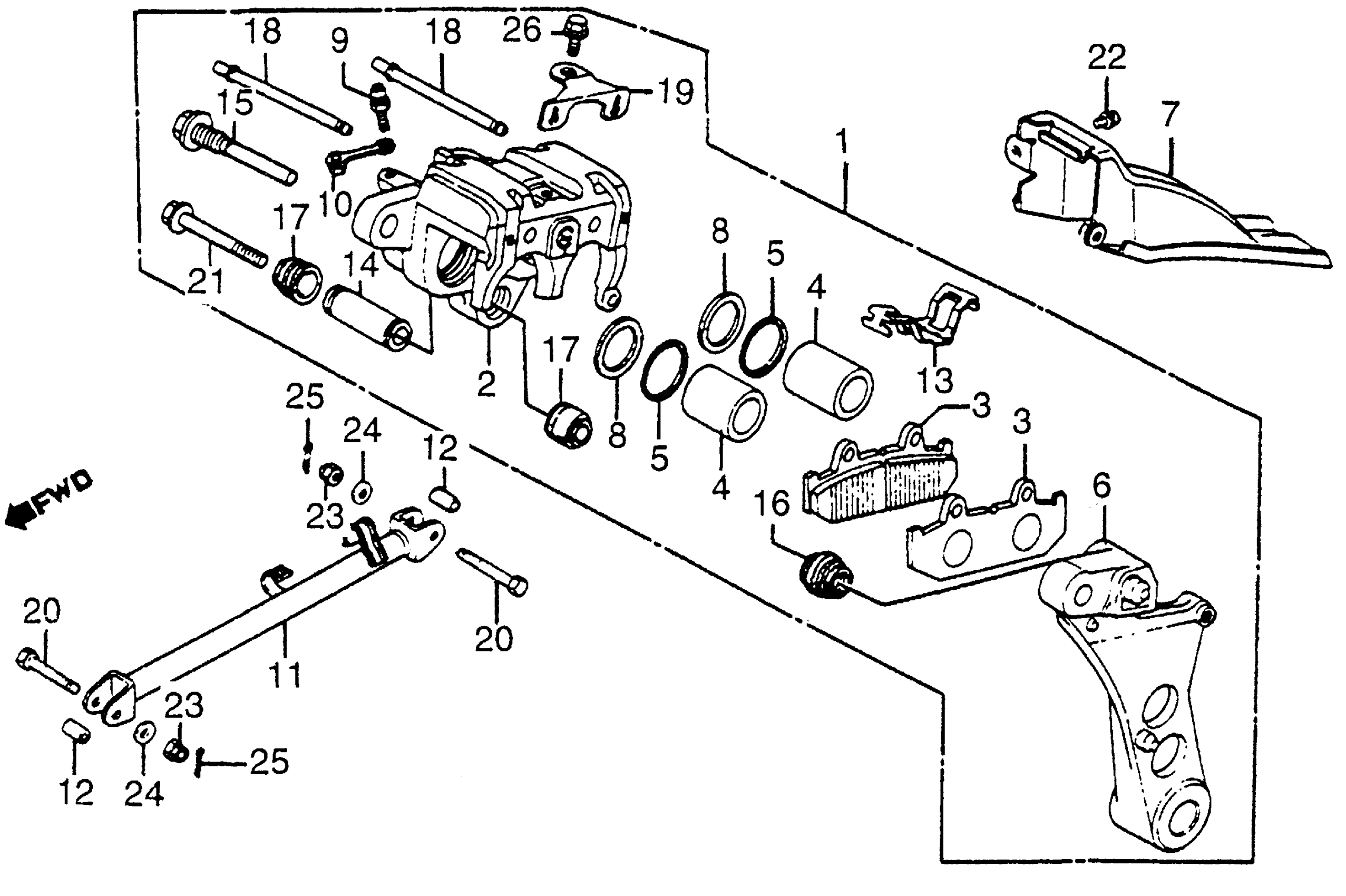

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 REAR BRAKE CALIPER Diagram

#

Description
Price

NI

PAD SET This part replaces 431A0-MC7-024.

06435-MC7-405

Unavailable

1

CALIPER ASSY., RR. (JB) (NISSHIN) (NOT AVAILABLE)

43100-MG5-671

Unavailable

1

CALIPER ASSY., RR. (JB) (NISSHIN) (NOT AVAILABLE) This part replaces 43100-MG5-672.

43100-MG5-671

Unavailable

2

CALIPER, RR. (NOT AVAILABLE)

43101-MA3-006

Unavailable

3

PAD SET This part replaces 43105-MC7-007.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MC7-014.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MJ6-004.

06435-MC7-405

Unavailable

3

PAD SET This part replaces 43105-MJ6-014.

06435-MC7-405

Unavailable

4

PISTON

43107-MA3-006

$32.99

5

DUST SEAL

43109-MA3-006

$5.73

6

BRACKET, RR.

43110-MG5-671

Unavailable

7

COVER, RR. DISK (NOT AVAILABLE)

43140-MA3-000

Unavailable

8

SEAL, PISTON

43209-MA3-006

$7.04

9

SCREW, BLEEDER

43352-568-003

$7.95

10

CAP, BLEEDER

43353-461-771

$5.05

11

LINK, TORQUE (NOT AVAILABLE)

43431-425-700

Unavailable

12

COLLAR, LINK

43435-392-000

$5.90

13

SPRING, PAD

45108-MA3-006

$6.28

14

SLEEVE

45111-MA3-006

$13.38

15

PIN, BOLT

45131-MA3-006

$17.59

16

BOOT B

45133-MA3-006

$5.46

17

BOOT, PIN

45133-166-016

$3.85

18

PIN, HANGER

45215-MA3-006

$12.77

19

PLATE

45217-MA3-006

$4.45

20

BOLT, RR. BRAKE STOPPER ARM

90124-392-000

Unavailable

21

BOLT, FLANGE (8X49) This part replaces 90180-MA3-006.

90180-MN8-006

$6.07

22

SCREW-WASHER (5X10)

93892-05010-07

$1.49

23

NUT, SELF-LOCK (8MM)

94011-08000-0S

$9.38

24

WASHER, PLAIN (8MM)

94101-08000

$1.49

25

PIN, COTTER (2.0X22) This part replaces 94201-20180.

94201-29220

$1.49

25

PIN, COTTER (2.0X22) This part replaces 94201-20200.

94201-29220

$1.49

25

PIN, COTTER (2.0X22)

94201-20220

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20250.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20280.

94201-20350

$1.49

25

PIN, COTTER (2.0X35) This part replaces 94201-20320.

94201-20350

$1.49

25

PIN, COTTER (2.0X35)

94201-20350

$1.49

25

PIN, COTTER (2.0X22)

94201-29220

$1.49

26

BOLT, FLANGE (6X10) This part replaces 95700-06010-07.

95701-06010-07

$1.62

26

BOLT, FLANGE (6X10)

95701-06010-07

$1.62
