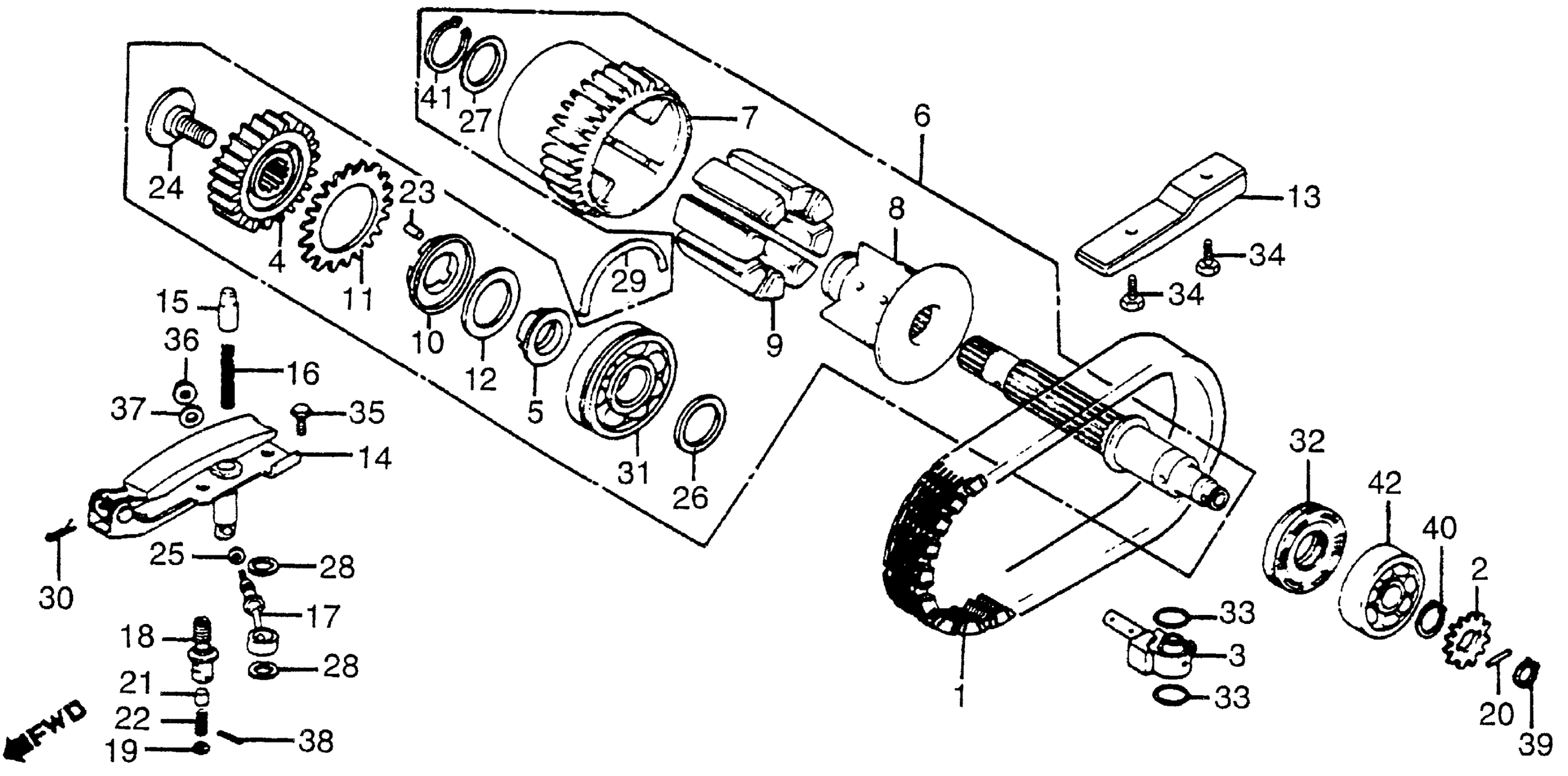

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 PRIMARY SHAFT Diagram

#

Description
Price

1

CHAIN, PRIMARY (NOT AVAILABLE)

13610-MA3-003

Unavailable

2

GEAR, OIL PUMP DRIVE (17T) (NOT AVAILABLE)

15211-425-000

Unavailable

3

NOZZLE, CHAIN OIL FEED (NOT AVAILABLE)

15710-438-000

Unavailable

4

GEAR, PRIMARY DRIVE (24T) (NOT AVAILABLE)

23103-MG5-670

Unavailable

5

COLLAR, PRIMARY DRIVE GEAR (NOT AVAILABLE)

23105-MG5-670

Unavailable

6

SHAFT, PRIMARY

23110-MG5-670

Unavailable

7

SPROCKET, PRIMARY (28T)

23112-MA3-300

Unavailable

8

HUB, DRIVEN SPROCKET (NOT AVAILABLE)

23114-425-300

Unavailable

9

RUBBER, DAMPER

23115-MA3-300

Unavailable

10

PLATE, SIDE (NOT AVAILABLE)

23123-MG5-670

Unavailable

11

SUB-GEAR, PRIMARY DRIVE (23T)

23124-425-300

Unavailable

12

SPRING, DISK

23125-MG5-670

Unavailable

13

GUIDE, PRIMARY CHAIN (NOT AVAILABLE)

23132-393-000

Unavailable

14

BASE, PRIMARY TENSIONER (NOT AVAILABLE)

23160-MA3-010

Unavailable

15

BAR ASSY., TENSIONER PUSH (NOT AVAILABLE)

23167-422-010

Unavailable

16

SPRING, PRIMARY CHAIN TENSIONER (NOT AVAILABLE)

23168-425-000

Unavailable

17

PIPE, PRIMARY CHAIN TENSIONER (NOT AVAILABLE)

23175-425-000

Unavailable

18

BODY, TENSIONER VALVE (NOT AVAILABLE)

23180-425-000

Unavailable

19

WASHER, STOPPER (NOT AVAILABLE)

23182-425-000

Unavailable

20

ROLLER (4X20.8) This part replaces 24444-300-000.

96220-40208

$1.49

20

ROLLER (4X20.8)

96220-40208

$1.49

21

VALVE, TORQUE CONVERTER FLUID CHECK (NOT AVAILABLE)

27611-393-000

Unavailable

22

SPRING, TORQUE CONVERTER FLUID VALVE

27621-393-000

Unavailable

23

PIN, CAMSHAFT (3X5.2)

30905-216-000

$2.67

24

BOLT, PRIMARY SHAFT

90013-425-003

Unavailable

25

WASHER (8.2MM) (NOT AVAILABLE)

90428-425-000

Unavailable

26

WASHER, THRUST (22.5MM) (NOT AVAILABLE)

90453-426-000

Unavailable

27

WASHER, THRUST (30MM) (NOT AVAILABLE)

90475-425-000

Unavailable

28

WASHER (14MM) (NOT AVAILABLE)

90483-700-000

Unavailable

29

SET-RING (56MM) (NOT AVAILABLE)

90601-393-000

Unavailable

30

PIN, LOCK (10MM) (NOT AVAILABLE)

90731-425-000

Unavailable

31

BEARING, RADIAL BALL (63/22) (NOT AVAILABLE)

91007-438-003

Unavailable

32

OIL SEAL (25X47X10)

91257-425-013

Unavailable

33

O-RING (15X2.5)

91302-377-000

$5.31

34

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

34

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

34

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

35

BOLT, HEX. (6X14) BOLT, FLANGE (6X14) This part replaces 92000-06014.

92101-06014-0A

$1.49

35

BOLT, HEX. (6X14)

92101-06014-0A

$1.49

36

NUT, FLANGE (6MM)

94050-06000

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

37

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

37

WASHER, PLAIN (6MM)

94101-06800

$1.49

38

PIN, COTTER (1.6X22)

94201-16220

$1.49

39

CIRCLIP (OUTER) (17MM)

94510-17000

$1.49

40

CIRCLIP (OUTER) (20MM)

94510-20000

$1.49

41

CIRCLIP (OUTER) (30MM)

94510-30000

$1.49

42

BEARING, RADIAL BALL (6204) This part replaces 96100-62040.

96100-62040-00

$12.22

42

BEARING, RADIAL BALL (6204)

96100-62040-00

$12.22
