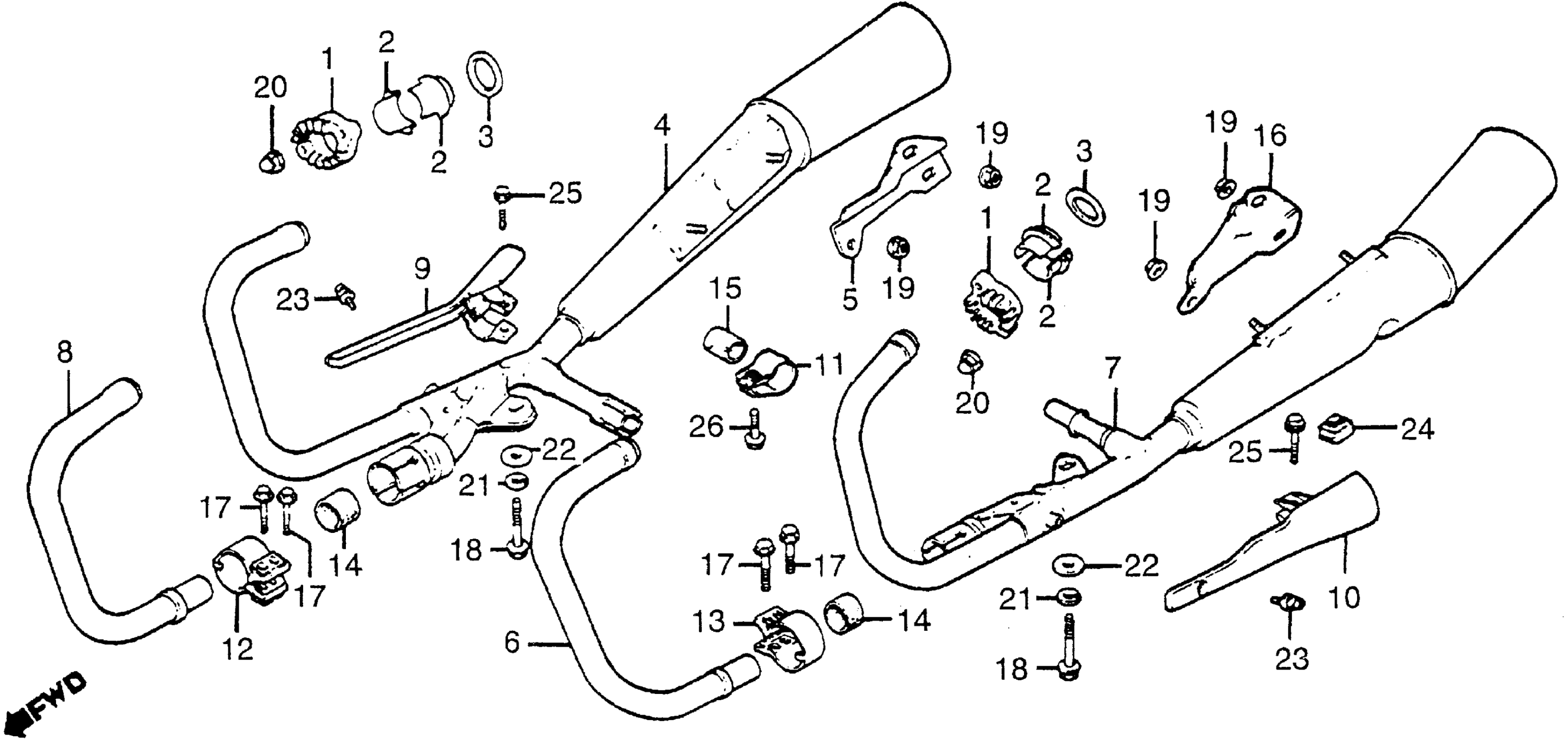

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 MUFFLER Diagram

#

Description
Price

1

JOINT, EX. PIPE

18231-425-000

Unavailable

2

COLLAR, EX. PIPE JOINT

18233-425-000

$16.69

3

GASKET, EX. PIPE

18291-MM5-860

$5.17

3

GASKET, EX. PIPE This part replaces 18291-254-000.

18291-MM5-860

$5.17

4

MUFFLER, R. (NOT AVAILABLE) | Use up to Frame SN DM006673 This part replaces 18315-MG5-670.

18315-MG5-671

Unavailable

4

MUFFLER, R. (NOT AVAILABLE)

18315-MG5-671

Unavailable

5

STAY, R. MUFFLER (NOT AVAILABLE)

18316-438-670

Unavailable

6

PIPE 2, EX. (NOT AVAILABLE)

18320-MG5-670

Unavailable

7

MUFFLER, L. (NOT AVAILABLE) | Use up to Frame SN DM006673 This part replaces 18325-MG5-670.

18325-MG5-671

Unavailable

7

MUFFLER, L. (NOT AVAILABLE)

18325-MG5-671

Unavailable

8

PIPE 3, EX. (NOT AVAILABLE)

18330-MG5-670

Unavailable

9

PROTECTOR, R. MUFFLER JOINT

18345-MG5-670

Unavailable

10

PROTECTOR, L. MUFFLER JOINT (NOT AVAILABLE)

18355-MG5-670

Unavailable

11

BAND, EX. PIPE (NOT AVAILABLE)

18372-MG5-670

Unavailable

12

BAND, L. MUFFLER (NOT AVAILABLE)

18373-MG5-670

Unavailable

13

BAND, R. MUFFLER (NOT AVAILABLE)

18374-MG5-670

Unavailable

14

GASKET, MUFFLER This part replaces 18391-438-000.

18391-438-306

$9.62

14

GASKET, MUFFLER

18391-438-306

$9.62

15

GASKET, MUFFLER

18391-HB7-000

$11.62

15

GASKET, MUFFLER This part replaces 18391-461-000.

18391-HB7-000

$11.62

16

STAY, L. MUFFLER (NOT AVAILABLE)

18416-438-670

Unavailable

17

BOLT, FLANGE (8X30) This part replaces 90104-MG5-670.

90111-GC8-720

Unavailable

17

BOLT, FLANGE (8X30)

90111-GC8-720

Unavailable

18

BOLT, UBS (10X48) This part replaces 90151-438-670.

90163-HA8-000

Unavailable

18

BOLT, UBS (10X48)

90163-HA8-000

Unavailable

19

NUT, FLANGE (8MM)

90208-425-870

Unavailable

20

NUT, CAP (8MM)

90304-ME1-670

$5.94

21

WASHER, SPRING (10MM)

90481-430-000

$6.19

22

WASHER (10X32)

90531-438-670

Unavailable

23

SCREW-WASHER (6X10)

93893-06010-07

Unavailable

24

RUBBER A, STAND STOPPER

95011-61000

$1.49

25

BOLT, FLANGE (6X25) This part replaces 95700-06025-07.

95701-06025-07

$1.80

25

BOLT, FLANGE (6X25)

95701-06025-07

$1.80

26

BOLT, FLANGE (8X20) This part replaces 95700-08020-07.

95701-08020-07

$1.87

26

BOLT, FLANGE (8X20)

95701-08020-07

$1.87
