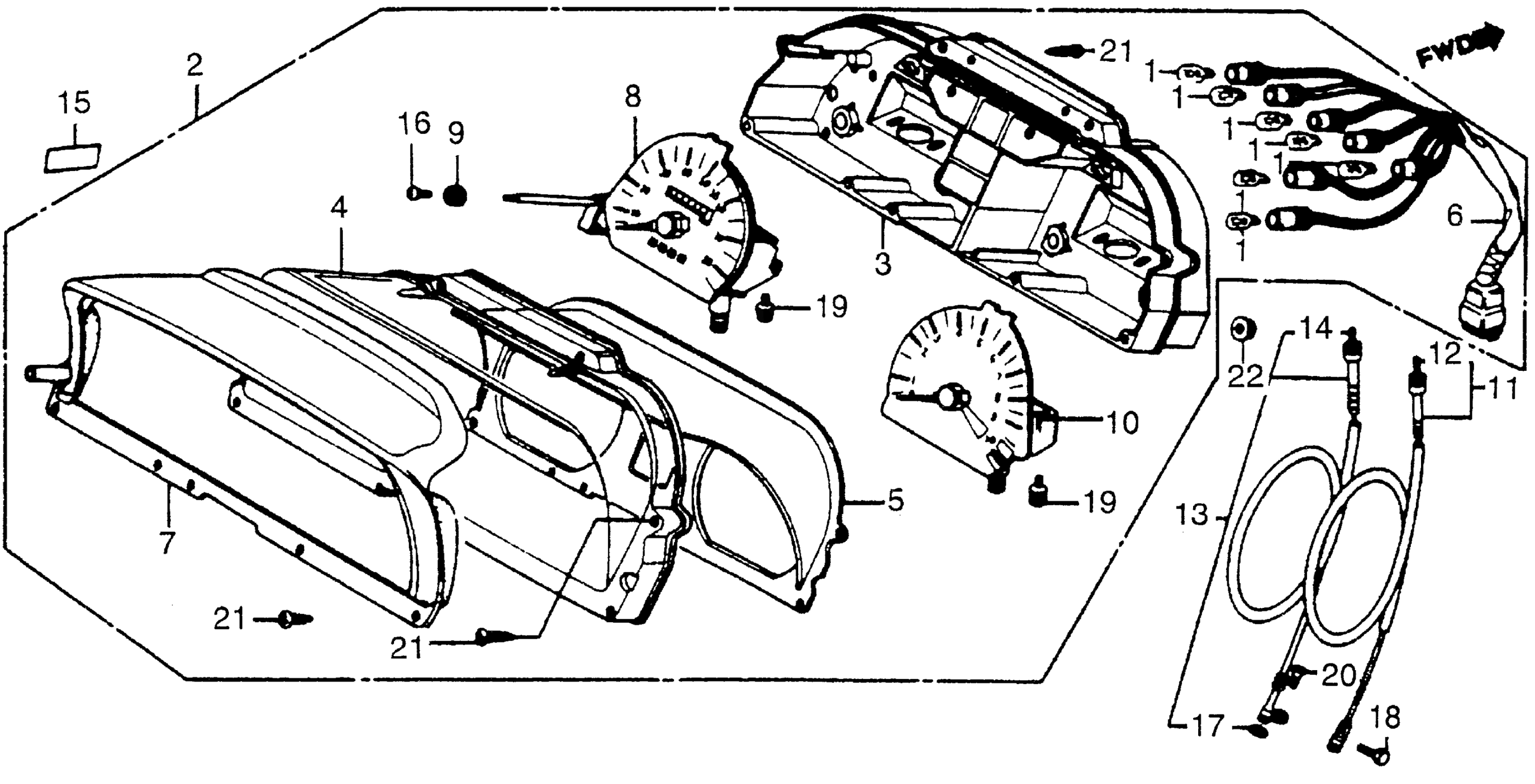

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 INSTRUMENTS Diagram

#

Description
Price

1

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

1

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

1

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

2

METER ASSY., COMBINATION (MPH) (NOT AVAILABLE)

37100-MG5-671

Unavailable

3

CASE ASSY., INSTRUMENT (NOT AVAILABLE)

37101-MG5-008

Unavailable

4

GLASS (NOT AVAILABLE)

37102-MC5-008

Unavailable

5

PLATE ASSY., REFLECTING (NOT AVAILABLE)

37103-MG5-008

Unavailable

6

SOCKET

37105-MG5-008

Unavailable

7

COVER, INSTRUMENT (UPPER) (NOT AVAILABLE)

37110-MC5-008

Unavailable

8

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37200-MG5-671

Unavailable

9

KNOB, TRIP METER (NOT AVAILABLE) This part replaces 37204-MC7-611.

37204-MC7-612

Unavailable

9

KNOB, TRIP METER (NOT AVAILABLE)

37204-MC7-612

Unavailable

10

TACHOMETER ASSY. (NOT AVAILABLE)

37250-MG5-671

Unavailable

11

CABLE ASSY., TACHOMETER (NOT AVAILABLE)

37260-MF8-000

Unavailable

11

CABLE ASSY., TACHOMETER This part replaces 37260-MG5-670.

37260-MF8-000

Unavailable

12

CABLE (INNER) (NOT AVAILABLE)

37261-MG5-670

Unavailable

13

CABLE ASSY., SPEEDOMETER

44830-MB9-780

Unavailable

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-ME2-000.

44830-MB9-780

Unavailable

13

CABLE ASSY., SPEEDOMETER This part replaces 44830-MG5-670.

44830-MB9-780

Unavailable

14

CABLE (INNER) (NOT AVAILABLE) This part replaces 44831-MB9-780.

44831-MC1-770

Unavailable

14

CABLE (INNER) (NOT AVAILABLE)

44831-MC1-770

Unavailable

14

CABLE (INNER) (NOT AVAILABLE) This part replaces 44831-MG5-670.

44831-MC1-770

Unavailable

15

LABEL, BREAK IN CAUTION (NOT AVAILABLE)

87523-102-720

Unavailable

16

SCREW, FLAT (2.3X8) (NOT AVAILABLE) This part replaces 90600-MC7-611.

90600-MC7-612

Unavailable

16

SCREW, FLAT (2.3X8) (NOT AVAILABLE)

90600-MC7-612

Unavailable

17

O-RING (6.8X1.9) This part replaces 91301-027-000.

91306-PJ4-000

$3.01

17

O-RING (6.8X1.9)

91306-PJ4-000

$3.01

17

O-RING (6.8X1.9) This part replaces 91310-MC7-003.

91306-PJ4-000

$3.01

18

BOLT, HEX. (5X20) This part replaces 92000-05020-0A.

92101-05020-0A

$1.49

18

BOLT, HEX. (5X20)

92101-05020-0A

$1.49

18

BOLT, HEX. (5X20) This part replaces 92301-05020-0A.

92101-05020-0A

$1.49

19

SCREW, PAN (4X6)

93500-04006-0H

$1.49

20

SCREW, OVAL (5X20)

93700-05020-0G

$1.49

21

SCREW, TAPPING (4X16)

93901-34410

$1.49

22

NUT, CAP (6MM)

94021-06020

$1.73
