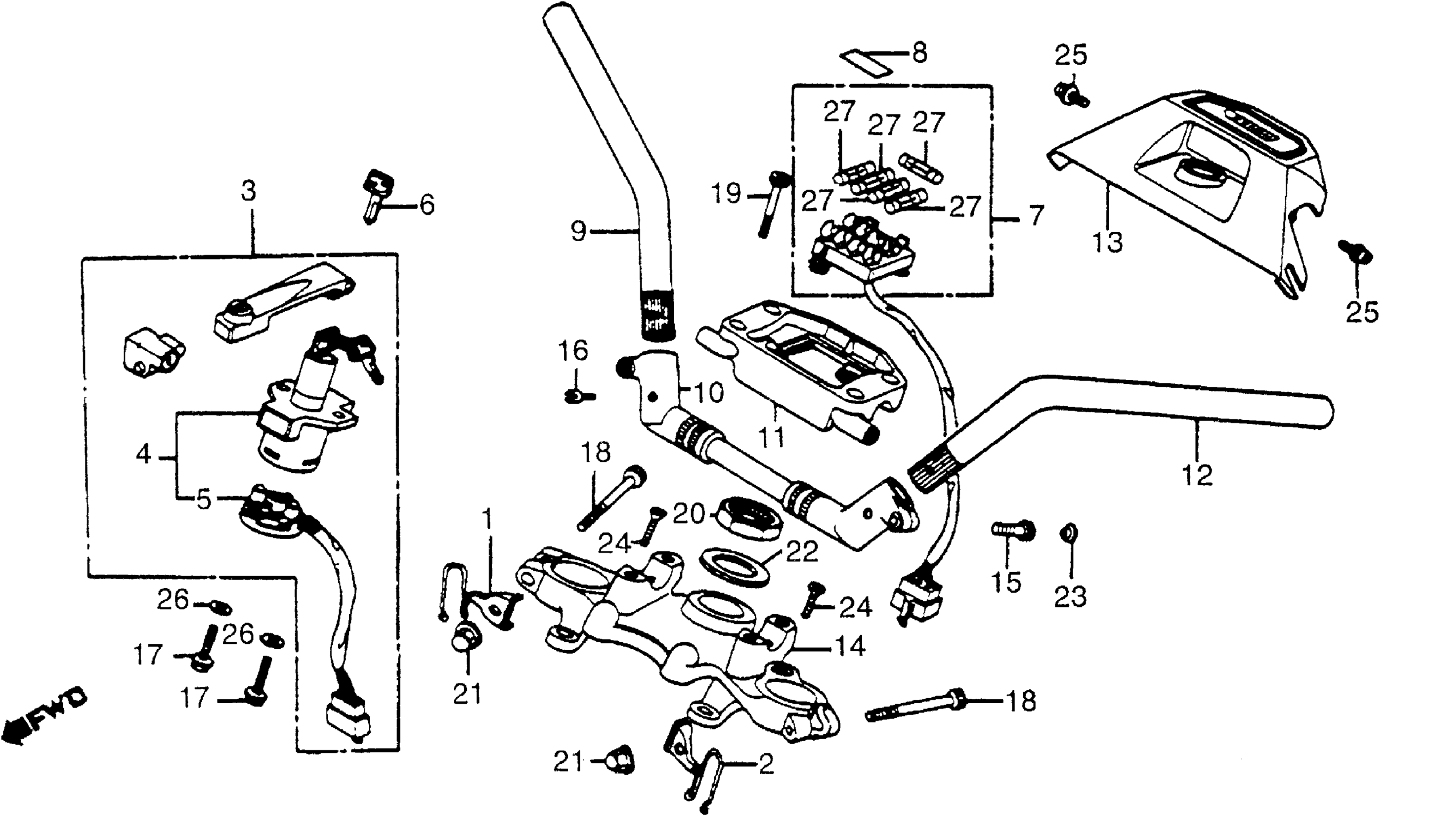

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 HANDLEBAR + TOP BRIDGE Diagram

GUIDE, R. CABLE (NOT AVAILABLE)

17908-MG5-670

Unavailable

GUIDE, L. CABLE (NOT AVAILABLE)

17909-MG5-670

Unavailable

LOCK SET (NOT AVAILABLE)

35010-MG5-670

Unavailable

SWITCH ASSY., COMBINATION This part replaces 35100-MA6-007.

35100-MC5-007

Unavailable

SWITCH ASSY., COMBINATION

35100-MC5-007

Unavailable

BASE, CONTACT This part replaces 35101-MA6-007.

35101-MC5-000

Unavailable

BASE, CONTACT

35101-MC5-000

Unavailable

KEY, BLANK (TYPE1)

35121-KW3-771

$10.10

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) This part replaces 35121-MA6-811.

35121-KW3-771

$10.10

KEY, BLANK (TYPE2)

35122-KW3-771

$10.10

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) This part replaces 35122-MA6-811.

35122-KW3-771

$10.10

PLATE ASSY., FUSE This part replaces 38200-MA4-671.

38200-MF9-405

Unavailable

PLATE ASSY., FUSE

38200-MF9-405

Unavailable

LABEL, FUSE (NOT AVAILABLE)

38215-MG5-670

Unavailable

HANDLEBAR, R.

53100-MG5-670

Unavailable

HOLDER, HANDLEBAR ADJ. (NOT AVAILABLE)

53101-MG5-670

Unavailable

HOLDER, HANDLEBAR (UPPER)

53131-MG5-670

Unavailable

HANDLEBAR, L.

53150-MG5-670

Unavailable

COVER, HANDLEBAR (NOT AVAILABLE)

53205-MG5-670

Unavailable

BRIDGE, FORK TOP

53230-MG5-670

Unavailable

BOLT, SOCKET (8X22)

90061-MB0-000

$5.44

SCREW, STOPPER (4MM)

90101-MG5-670

Unavailable

BOLT, FLANGE (8X19) (NOT AVAILABLE)

90105-KB7-000

Unavailable

BOLT, SOCKET (7X55)

90167-422-000

Unavailable

BOLT, HEX. SOCKET (8X32)

90185-371-000

$6.28

NUT, STEERING STEM

90304-425-000

$9.69

NUT, CAP. (7MM) This part replaces 90360-422-000.

90360-428-900

Unavailable

WASHER, STEERING STEM

90503-425-000

$4.21

CAP, SOCKET BOLT

91456-371-770

$3.47

SCREW, OVAL (6X40)

93700-06040-0G

$1.49

SCREW, OVAL (6X40) This part replaces 93700-06040-07.

93700-06040-0G

$1.49

SCREW-WASHER (5X12)

93891-05012-07

$1.49

WASHER, FLAT (8MM)

94102-08200

$1.49

FUSE B (15A)

98200-21500

$1.49
