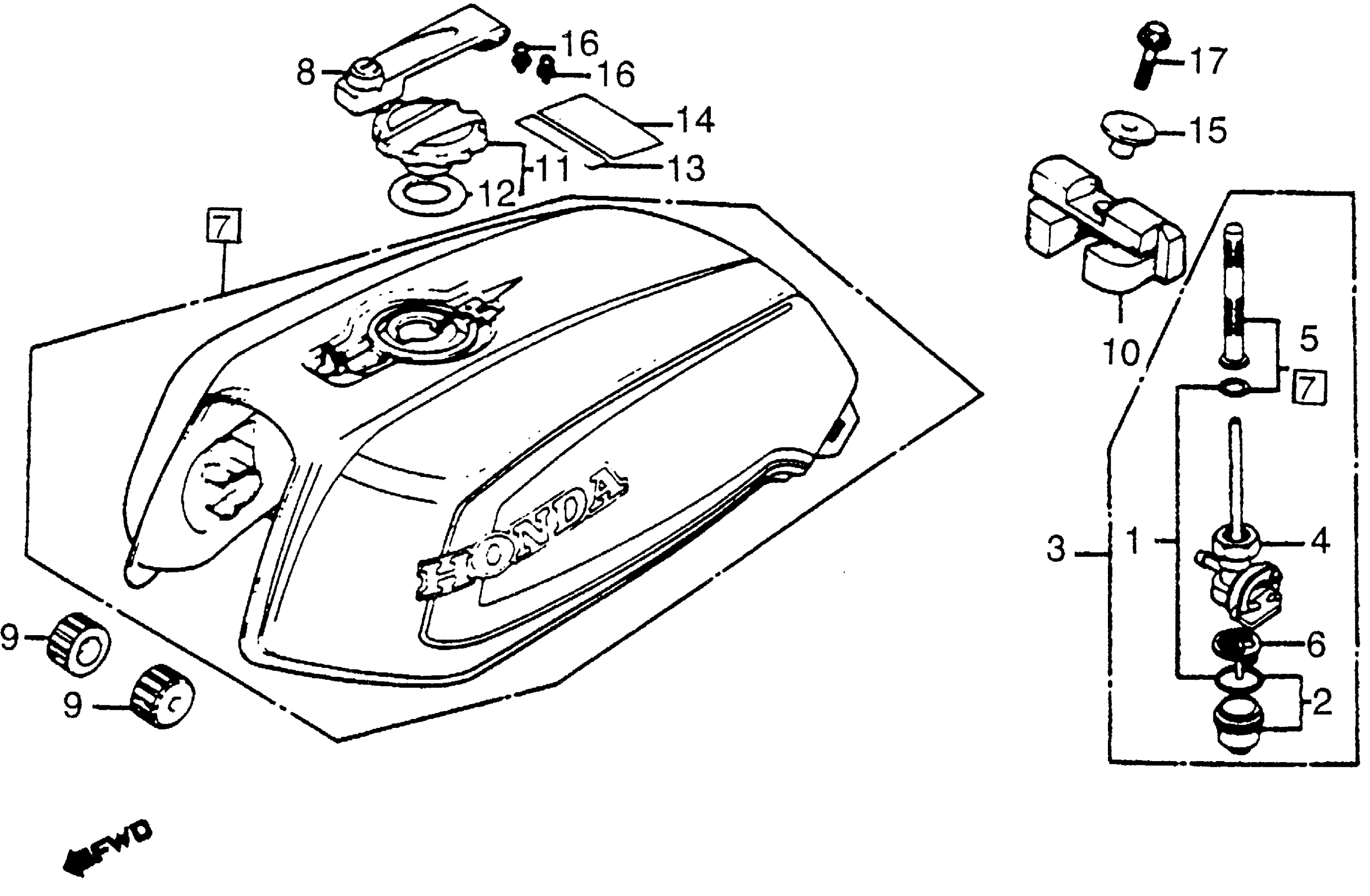

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 FUEL TANK Diagram

#

Description
Price

1

O-RING SET

16080-461-751

Unavailable

2

CUP, FUEL STRAINER

16081-471-831

$25.14

3

PETCOCK ASSY.

16950-461-751

$219.33

4

BODY, PETCOCK

16951-461-751

Unavailable

5

SCREEN, FUEL STRAINER

16952-461-751

Unavailable

6

FILTER, CUP

16959-461-751

$17.88

7

TANK SET, FUEL *R125CA* (CANDY PEARL MAUI RED) (NOT AVAILABLE)

175A1-MG5-670ZA

Unavailable

7

TANK SET, FUEL *PB126CA* (CANDY PEARL KAPIOLANI BLUE) (NOT AVAILABLE)

175A1-MG5-670ZB

Unavailable

8

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-422-017.

17530-443-305

Unavailable

8

LID, FUEL TANK (NOT AVAILABLE)

17530-443-305

Unavailable

8

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-611.

17530-443-305

Unavailable

8

LID, FUEL TANK (NOT AVAILABLE) This part replaces 17530-443-612.

17530-443-305

Unavailable

9

RUBBER, FR. FUEL TANK

17611-425-000

$8.18

10

RUBBER, RR. FUEL TANK (NOT AVAILABLE)

17613-MB7-670

Unavailable

11

CAP, FUEL FILLER

17620-469-000

Unavailable

12

GASKET This part replaces 17632-176-771.

17632-176-772

$11.02

12

GASKET This part replaces 17632-469-000.

17632-176-772

$11.02

13

LABEL, FR. SHOCK CAUTION *R125CA* (CANDY PEARL MAUI RED) (NOT AVAILABLE)

87517-MG5-670ZA

Unavailable

14

LABEL, DRIVE CAUTION (NOT AVAILABLE)

87560-MB0-670

Unavailable

14

LABEL, DRIVE CAUTION (NOT AVAILABLE) This part replaces 87560-MB0-670ZA.

87560-MB0-670

Unavailable

15

COLLAR, FUEL TANK MOUNTING

90324-MA1-000

$8.20

16

SCREW-WASHER (4X6)

93892-04006-00

$1.49

17

BOLT, FLANGE (8X25) This part replaces 95700-08025-00.

95701-08025-00

$1.79

17

BOLT, FLANGE (8X25)

95701-08025-00

$1.79
