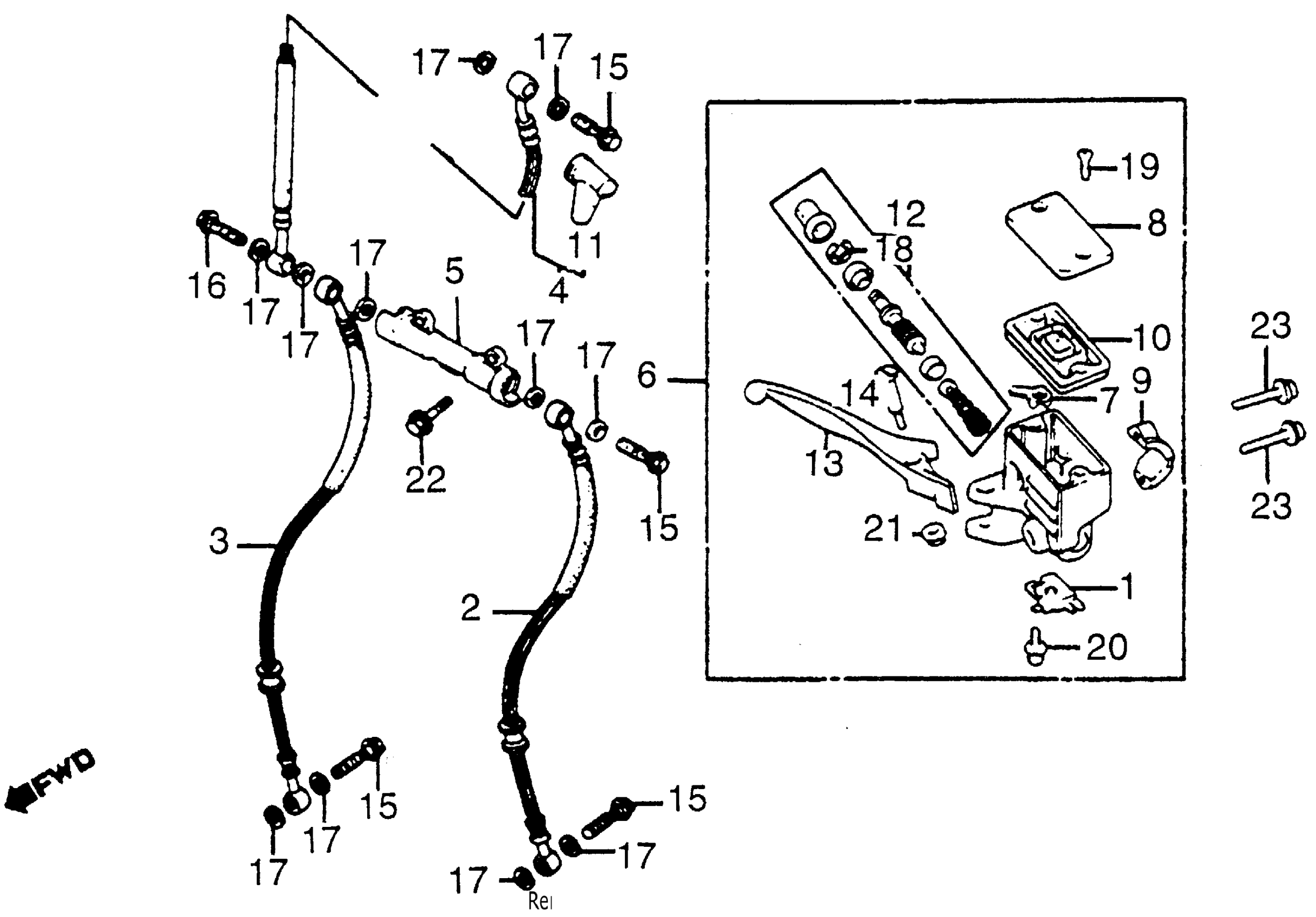

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 FRONT BRAKE MASTER CYL. Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MA5-671

$24.51

2

HOSE A, L. FR. BRAKE This part replaces 45124-MG5-671.

45124-MG5-672

Unavailable

3

HOSE A, R. FR. BRAKE (NOT AVAILABLE) This part replaces 45125-MG5-671.

45125-MG5-672

Unavailable

3

HOSE A, R. FR. BRAKE (NOT AVAILABLE)

45125-MG5-672

Unavailable

4

HOSE B, FR. BRAKE This part replaces 45126-MG5-671.

45126-MG5-672

Unavailable

5

JOINT (TWO-WAY)

45127-422-003

Unavailable

6

MASTER CYLINDER ASSY., FR. (NOT AVAILABLE)

45500-MA7-026

Unavailable

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP, OIL CUP

45513-MA5-671

Unavailable

9

HOLDER, MASTER CYLINDER

45517-MA5-671

$29.30

10

DIAPHRAGM This part replaces 45520-MA5-671.

45520-MA5-672

$18.13

10

DIAPHRAGM

45520-MA5-672

$18.13

11

BOOT, MASTER CYLINDER

45522-422-000

$8.68

12

MASTER CYLINDER SET

45530-MA5-671

$71.69

13

LEVER, R. HANDLEBAR This part replaces 53175-MA6-006.

53175-MA6-016

Unavailable

13

LEVER, R. HANDLEBAR

53175-MA6-016

Unavailable

14

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

15

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KE8-000.

90145-KM3-751

$11.02

15

BOLT, OIL (10X22) (SAGA) This part replaces 90145-KM3-750.

90145-KM3-751

$11.02

15

BOLT, OIL (10X22)

90145-KM3-751

$11.02

15

BOLT, OIL (10X22)

90145-VM0-000

Unavailable

15

BOLT, OIL (10X22) (SAGA) This part replaces 90145-961-010.

90145-KM3-751

$11.02

16

BOLT, OIL (10X34) This part replaces 90145-MG5-670.

90145-MR8-014

$7.28

16

BOLT, OIL (10X34) This part replaces 90145-MR8-004.

90145-MR8-014

$7.28

17

WASHER, OIL BOLT

90545-300-000

$3.99

18

CIRCLIP

90651-MA5-671

$2.66

19

SCREW, FLAT (4X45)

93600-04045-1G

$1.49

20

SCREW-WASHER (4X12)

93893-04012-08

$1.49

20

SCREW-WASHER (4X12) This part replaces 93893-04012-18.

93893-04012-08

$1.49

21

NUT, FLANGE (6MM)

94050-06000

$1.49

22

BOLT, FLANGE (6X20) This part replaces 95700-06020-07.

95701-06020-07

$1.62

22

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

23

BOLT, FLANGE (6X25) This part replaces 96000-06025-07.

96001-06025-07

$1.49

23

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
