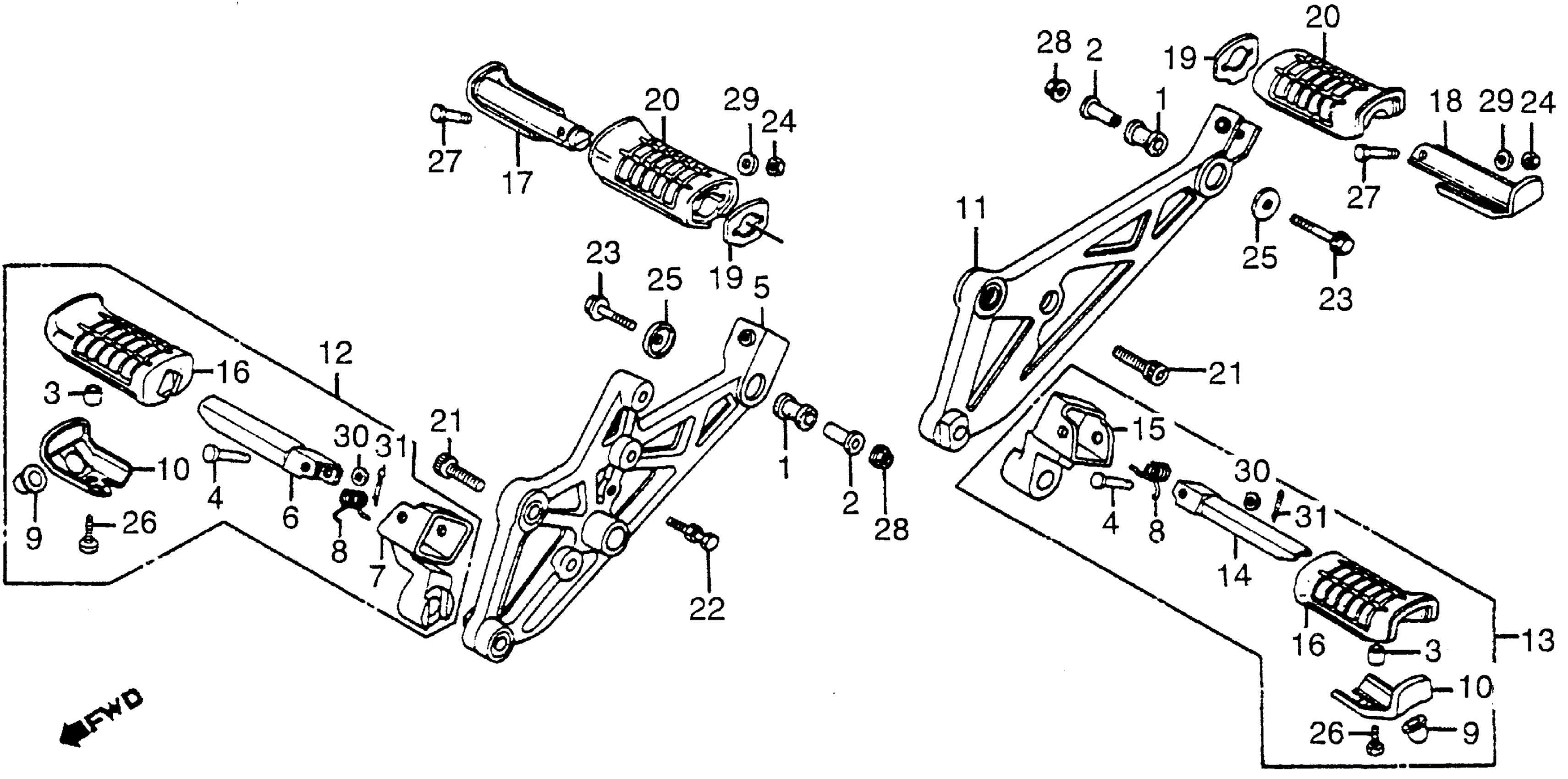

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 FOOTPEGS Diagram

#

Description
Price

1

RUBBER, MUFFLER SETTING

18421-438-000

$6.14

1

RUBBER, MUFFLER SETTING This part replaces 18421-438-670.

18421-438-000

$6.14

2

COLLAR, MUFFLER SETTING

18422-438-000

$9.03

3

COLLAR, CHAIN CASE

40515-413-000

$2.92

4

PIN, STEP BAR JOINT This part replaces 50603-033-000.

50603-033-010

$3.30

4

PIN, STEP BAR JOINT

50603-033-010

$3.30

5

HOLDER, R. FOOTPEG (NOT AVAILABLE)

50610-MG5-670

Unavailable

6

BAR, R. FOOTPEG (NOT AVAILABLE)

50612-MB0-000

Unavailable

7

BRACKET, R. FOOTPEG

50615-MG5-670

Unavailable

8

SPRING, STEP RETURN

50617-195-000

Unavailable

9

SLIDER, FOOTPEG (NOT AVAILABLE)

50618-MB0-000

Unavailable

10

STOPPER, STEP RUBBER

50619-MB0-000

Unavailable

11

HOLDER, L. FOOTPEG (NOT AVAILABLE)

50620-MG5-670

Unavailable

12

FOOTPEG ASSY., R. MAIN (NOT AVAILABLE)

50630-MG5-670

Unavailable

13

FOOTPEG ASSY., L. MAIN (NOT AVAILABLE)

50640-MG5-670

Unavailable

14

BAR, L. FOOTPEG (NOT AVAILABLE)

50642-MB0-000

Unavailable

15

BRACKET, L. FOOTPEG

50643-MG5-670

Unavailable

16

RUBBER, MAIN FOOTPEG

50661-MB0-000

Unavailable

17

BAR, R. PILLION STEP (NOT AVAILABLE)

50711-MB0-000

Unavailable

18

BAR, L. PILLION FOOTPEG

50712-MB0-000

Unavailable

19

WASHER, PILLION FOOTPEG

50714-MB0-000

Unavailable

20

RUBBER, PILLION FOOTPEG This part replaces 50715-MB0-000.

50715-MJ1-000

Unavailable

20

RUBBER, PILLION FOOTPEG

50715-MJ1-000

Unavailable

21

BOLT, SOCKET (10X35) (NOT AVAILABLE)

90109-422-670

Unavailable

22

BOLT, RR. BRAKE SPRING (NOT AVAILABLE)

90117-426-000

Unavailable

23

BOLT, FLANGE (10X50) This part replaces 90176-MA5-000.

96400-10050-00

$2.08

23

BOLT, FLANGE (10X50) This part replaces 90176-422-000.

96400-10050-00

$2.08

23

BOLT, FLANGE (10X50)

96400-10050-00

$2.08

24

NUT, U (6MM)

90301-473-003

$4.07

25

WASHER, SPECIAL (10MM)

90557-438-000

Unavailable

26

BOLT, HEX. (6X16) This part replaces 92000-06016-0A.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X16) This part replaces 92100-06016-0A.

92101-06016-0A

$1.49

26

BOLT, HEX. (6X16)

92101-06016-0A

$1.49

27

BOLT, HEX. (6X45) This part replaces 92200-06045-0B.

92201-06045-0B

Unavailable

27

BOLT, HEX. (6X45)

92201-06045-0B

Unavailable

28

NUT, FLANGE (10MM)

94050-10000

$1.59

29

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

29

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

29

WASHER, PLAIN (6MM)

94101-06800

$1.49

30

WASHER, PLAIN (8MM)

94101-08000

$1.49

31

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$1.49

31

PIN, COTTER (1.6X25)

94201-16250

$1.49
