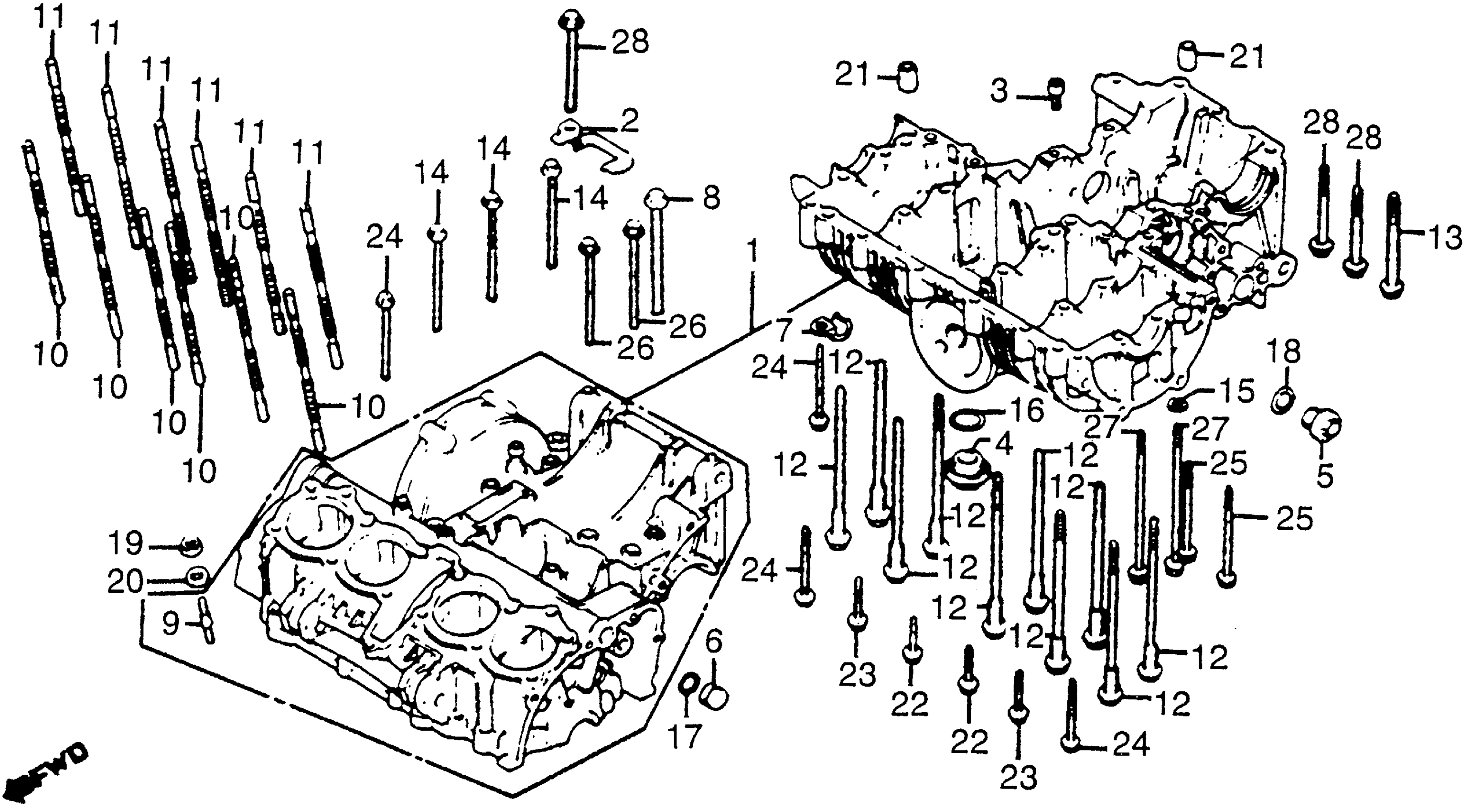

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11000-MG5-670

Unavailable

2

PLATE, TUBE GUARD (NOT AVAILABLE)

11618-MA3-000

Unavailable

3

ORIFICE, OIL CONTROL (NOT AVAILABLE) This part replaces 11620-425-000.

11620-425-003

Unavailable

3

ORIFICE, OIL CONTROL (NOT AVAILABLE)

11620-425-003

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

4

CAP, VALVE ADJ.

12361-300-000

Unavailable

4

CAP, VALVE ADJ. This part replaces 12361-371-980.

12361-300-000

Unavailable

5

CAP, OIL PASSAGE

15331-300-000

Unavailable

6

PLUG, OIL PASSAGE (NOT AVAILABLE)

15336-393-000

Unavailable

7

CLIP, COIL CABLE (NOT AVAILABLE) This part replaces 32900-438-000.

32921-115-000

Unavailable

7

CLIP, COIL CABLE (NOT AVAILABLE)

32921-115-000

Unavailable

8

BOLT, FLANGE (8X83) (NOT AVAILABLE)

90024-425-000

Unavailable

9

BOLT, STUD (6X34) (NOT AVAILABLE)

90028-425-000

Unavailable

10

BOLT, STUD (10X230.5) (TOKAI)

90031-438-003

Unavailable

11

BOLT, STUD (10X230.5) (TOKAI)

90031-438-003

Unavailable

11

BOLT, STUD (10X230.5) (TOKAI) This part replaces 90032-438-003.

90031-438-003

Unavailable

12

BOLT, UBS (8X118)

90042-393-000

Unavailable

13

BOLT, UBS (10X72) (NOT AVAILABLE)

90043-438-670

Unavailable

14

BOLT, FLANGE (7X85)

90055-MA3-000

Unavailable

15

WASHER, SEALING (6MM)

90441-706-000

$1.49

16

O-RING (30.8MM)

91302-001-020

$3.75

17

O-RING (16X1.9)

91306-329-000

$2.92

18

O-RING (19.4X2.8) (NOT AVAILABLE)

91306-425-003

Unavailable

19

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.49

19

NUT, HEX. (6MM)

94001-06200-0S

$1.49

19

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

$1.49

20

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

$1.49

20

WASHER, PLAIN (6MM)

94101-06800

$1.49

21

PIN A, DOWEL (10X16)

94301-10160

$2.28

22

BOLT, FLANGE (6X35) This part replaces 95700-06035-00.

95701-06035-00

$1.80

22

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

23

BOLT, FLANGE (6X40) This part replaces 95700-06040-00.

95701-06040-00

$1.80

23

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

24

BOLT, FLANGE (6X50) This part replaces 95700-06050-00.

95701-06050-00

$2.06

24

BOLT, FLANGE (6X50)

95701-06050-00

$2.06

25

BOLT, FLANGE (6X70) This part replaces 95700-06070-00.

95701-06070-00

$2.19

25

BOLT, FLANGE (6X70)

95701-06070-00

$2.19

26

BOLT, FLANGE (6X80) This part replaces 95700-06080-00.

95701-06080-00

$2.34

26

BOLT, FLANGE (6X80)

95701-06080-00

$2.34

27

BOLT, FLANGE (6X110) This part replaces 95700-06110-00.

95701-06110-00

$3.09

27

BOLT, FLANGE (6X110)

95701-06110-00

$3.09

28

BOLT, FLANGE (8X60) This part replaces 95700-08060-00.

95701-08060-00

$1.49

28

BOLT, FLANGE (8X60)

95701-08060-00

$1.49
