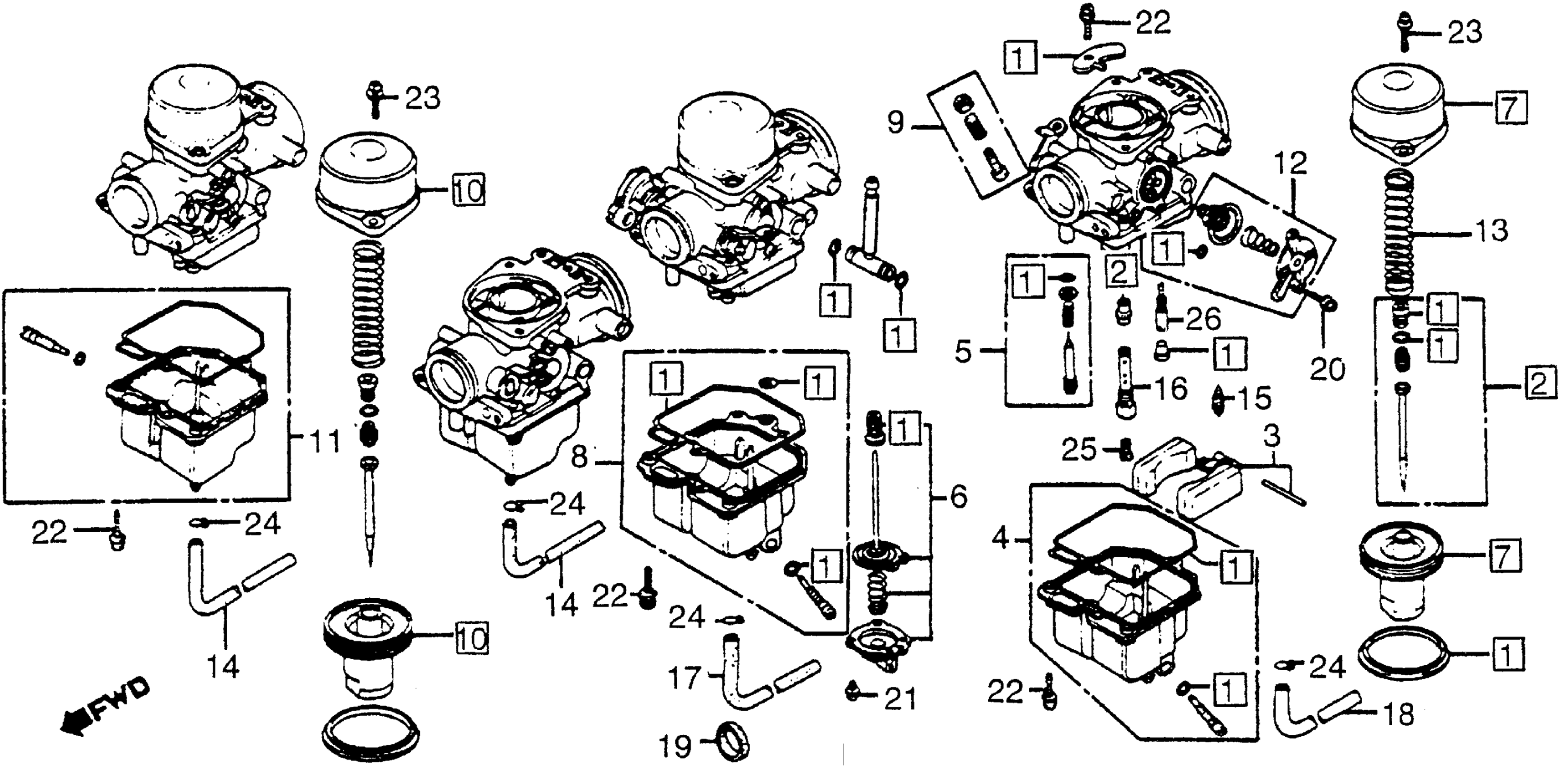

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 CARBURETOR COMP. PARTS Diagram

#

Description
Price

1

GASKET SET

16010-MG5-305

Unavailable

1

GASKET SET This part replaces 16010-MG5-671.

16010-MG5-305

Unavailable

2

NEEDLE SET, JET

16012-MG5-671

Unavailable

3

FLOAT SET This part replaces 16013-413-751.

16013-413-851

$90.77

3

FLOAT SET

16013-413-851

$90.77

4

CHAMBER SET, FLOAT This part replaces 16015-413-004.

16015-425-871

Unavailable

4

CHAMBER SET, FLOAT

16015-425-871

Unavailable

5

SCREW SET A

16016-KC2-970

$25.35

5

SCREW SET A This part replaces 16016-413-751.

16016-KC2-970

$25.35

6

DIAPHRAGM SET, PUMP (NOT AVAILABLE)

16021-MG1-671

Unavailable

7

PISTON SET, VACUUM (NOT AVAILABLE) This part replaces 16022-413-891.

16022-425-871

Unavailable

7

PISTON SET, VACUUM (NOT AVAILABLE)

16022-425-871

Unavailable

8

CHAMBER SET B, FLOAT (NOT AVAILABLE) This part replaces 16023-425-671.

16023-425-871

Unavailable

9

SCREW SET C

16029-PC6-005

Unavailable

9

SCREW SET C This part replaces 16029-413-004.

16029-PC6-005

Unavailable

10

PISTON SET, VACUUM

16044-425-771

Unavailable

11

CHAMBER SET C, FLOAT (NOT AVAILABLE) This part replaces 16045-425-671.

16045-425-871

Unavailable

12

VALVE SET, AIR CUT This part replaces 16048-KB7-004.

16048-KB7-901

$149.08

12

VALVE SET, AIR CUT

16048-KB7-901

$149.08

13

SPRING, VACUUM PISTON (NOT AVAILABLE)

16050-415-003

Unavailable

14

TUBE This part replaces 16144-413-751.

16199-MN5-405

$11.86

14

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

15

VALVE, FLOAT

16155-413-751

$32.50

16

HOLDER, NEEDLE JET

16165-438-003

Unavailable

17

TUBE This part replaces 16195-449-405.

16199-MN5-405

$11.86

17

TUBE This part replaces 16195-449-771.

16199-MN5-405

$11.86

18

BINDER

16179-ME5-761

Unavailable

18

BINDER This part replaces 16198-425-671.

16179-ME5-761

Unavailable

19

BAND, RUBBER (NOT AVAILABLE)

16291-300-300

Unavailable

20

SCREW-WASHER (4X10)

93892-04010-00

$1.49

21

SCREW-WASHER (4X12)

93892-04012-00

$1.49

22

SCREW-WASHER (4X16)

93892-04016-00

$1.49

23

SCREW-WASHER (5X16)

93892-05016-00

$1.49

24

CLIP, TUBE (B6.5)

95002-02650

$1.49

25

JET, MAIN (#122) This part replaces 99101-GHB-1220.

99101-HN5-1220

$9.13

25

JET, MAIN (#122) This part replaces 99101-393-1220.

99101-HN5-1220

$9.13

25

JET, MAIN (#122) This part replaces 99102-393-1220.

99101-HN5-1220

$9.13

26

JET, SLOW (#38)

99103-MA4-0380

$27.62
