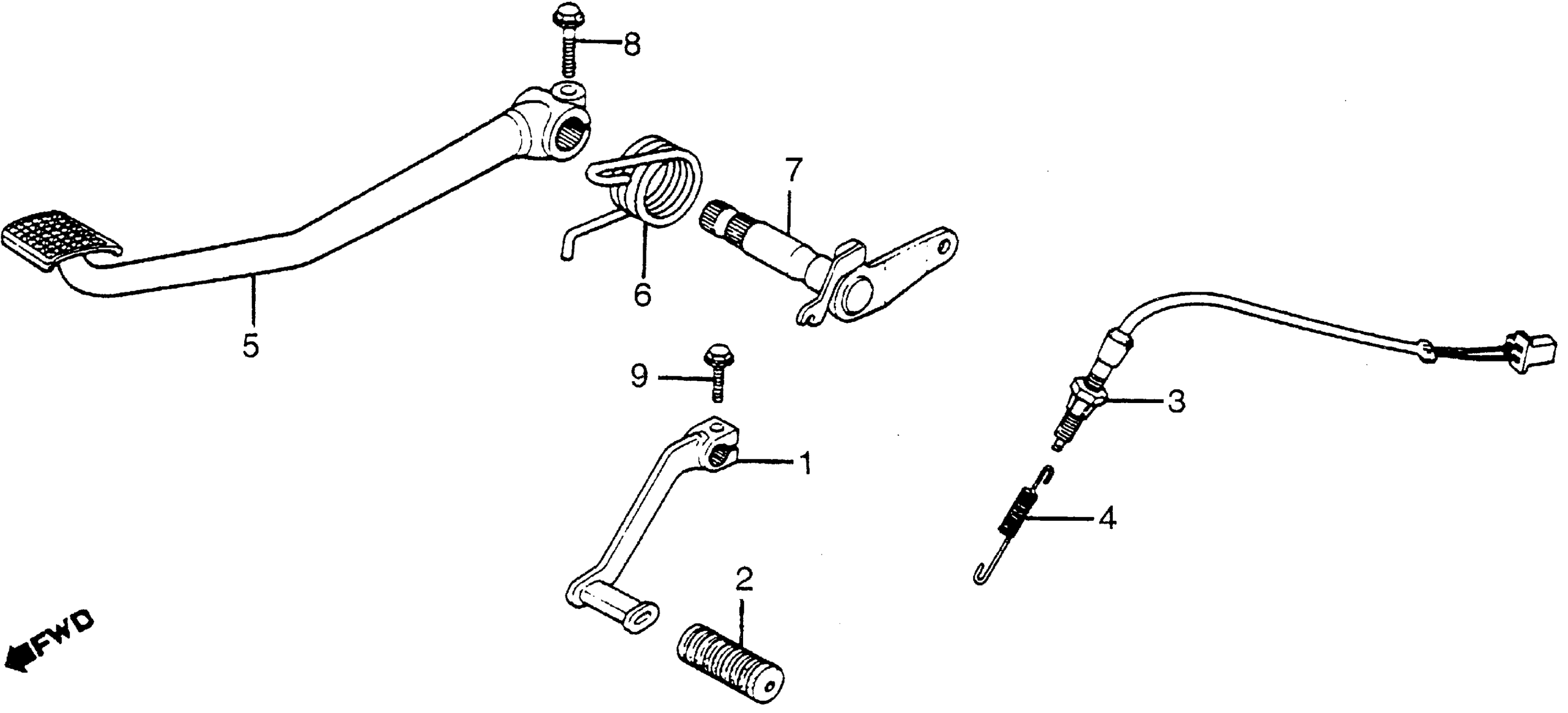

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 BRAKE PEDAL + GEARSHIFT PEDAL Diagram

#

Description

Price

1

PEDAL, GEARSHIFT (NOT AVAILABLE)

24701-MC3-670

Unavailable

2

RUBBER, GEARSHIFT PEDAL

24781-419-000

$5.23

3

SWITCH ASSY., RR. STOP

35350-KA2-405

$14.57

3

SWITCH ASSY., RR. STOP This part replaces 35350-438-000.

35350-KA2-405

$14.57

4

SPRING, STOP SWITCH

35357-KE4-730

Unavailable

4

SPRING, STOP SWITCH This part replaces 35357-425-610.

35357-KE4-730

Unavailable

5

PEDAL, RR. BRAKE (NOT AVAILABLE)

46500-MC3-670

Unavailable

6

SPRING, BRAKE PEDAL (NOT AVAILABLE)

46514-445-670

Unavailable

7

SHAFT, RR. BRAKE PIVOT (NOT AVAILABLE)

46515-445-670

Unavailable

8

BOLT, FLANGE (8X25) This part replaces 90168-MA3-660.

95701-08025-02

$2.07

8

BOLT, FLANGE (8X25)

95701-08025-02

$2.07

9

BOLT, FLANGE (6X20) This part replaces 96000-06020-02.

96001-06020-02

$1.19

9

BOLT, FLANGE (6X20)

96001-06020-02

$1.19
