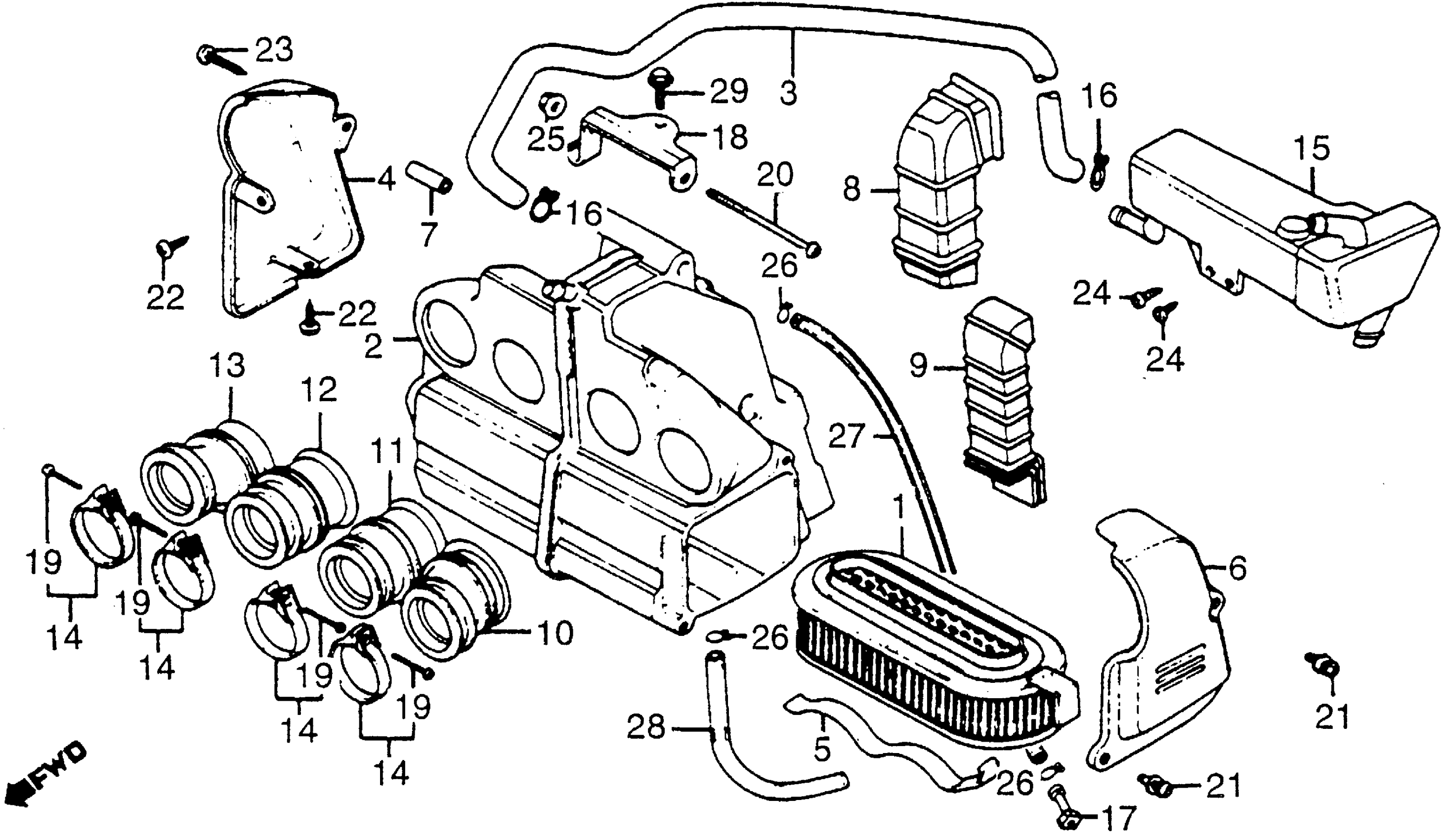

Honda CB1100FA (83) SUPER SPORT, JPN, VIN# JH2SC110-DM000001 AIR CLEANER Diagram

#

Description
Price

1

ELEMENT, AIR CLEANER

17211-425-000

$32.44

2

HOUSING, AIR CLEANER (NOT AVAILABLE)

17213-MA3-660

Unavailable

3

TUBE, BREATHER (D)

17217-MG5-670

Unavailable

4

COVER, R. AIR CLEANER (NOT AVAILABLE)

17222-438-000

Unavailable

5

SPRING, ELEMENT SETTING

17223-425-000

Unavailable

6

COVER, L. AIR CLEANER

17230-438-000

Unavailable

7

COLLAR, R. AIR CLEANER COVER (NOT AVAILABLE)

17231-438-000

Unavailable

8

DUCT, AIR CLEANER IN.

17240-MA3-000

Unavailable

9

SUB-DUCT, AIR CLEANER IN. (NOT AVAILABLE)

17241-MA3-660

Unavailable

10

TUBE 1, AIR CLEANER CONNECTING

17251-438-000

Unavailable

11

TUBE 2, AIR CLEANER CONNECTING

17252-438-000

Unavailable

12

TUBE 3, AIR CLEANER CONNECTING

17253-438-000

Unavailable

13

TUBE 4, AIR CLEANER CONNECTING

17254-438-000

Unavailable

14

BAND, AIR CLEANER CONNECTING TUBE (60) This part replaces 17256-425-010.

95018-60250

$6.25

15

TANK, BREATHER (NOT AVAILABLE)

17300-MG5-670

Unavailable

16

CLIP, BREATHER TUBE

17316-611-000

$9.23

17

PLUG, BREATHER TUBE

17370-419-700

$3.74

18

STAY, AIR CLEANER HANGER (NOT AVAILABLE)

17375-425-000

Unavailable

19

SCREW, PAN (5X25)

93500-05025-0G

$1.49

20

SCREW, PAN (6X70) This part replaces 93500-06070.

93500-06070-0A

$1.49

20

SCREW, PAN (6X70)

93500-06070-0A

$1.49

21

SCREW-WASHER (5X16)

93891-05016-07

$1.49

22

SCREW, TAPPING (4X12)

93903-14380

$1.49

23

SCREW, TAPPING (4X35) (NOT AVAILABLE)

93903-14880

Unavailable

24

SCREW, TAPPING (5X10)

93903-35110

$1.49

25

NUT, FLANGE (6MM)

94050-06000

$1.49

26

CLIP, TUBE (C12)

95002-80000

$1.49

27

TUBE, VINYL (8X12X3000) (8X12X360)

95003-23003-10M

$14.69

28

BULK HOSE, VINYL (8X12X8000) (8X12X470)

95003-23008-60M

Unavailable

29

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.55

29

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
