Description

Price

1

MAINSHAFT (12T)

23210-MGC-JB0

$200.11

2

COUNTERSHAFT

23220-MGC-JB0

$242.21

3

GEAR, COUNTERSHAFT FIRST (37T)

23421-MGC-JB0

$130.25

4

GEAR, MAINSHAFT SECOND (17T)

23431-MGC-JB0

$67.48

5

GEAR, COUNTERSHAFT SECOND (33T)

23441-MGC-JB0

$131.95

6

COLLAR (30X11.2)

23442-MS2-610

$23.74

7

GEAR, MAINSHAFT THIRD & FOURTH (23T/25T)

23451-MGC-JB0

$147.98

8

GEAR, COUNTERSHAFT THIRD (34T)

23461-MGC-JB0

$131.95

9

COLLAR, SPLINE (30X11)

23462-MAT-000

$23.00

10

GEAR, COUNTERSHAFT FOURTH (31T)

23481-MGC-JB0

$142.87

11

COLLAR, SPLINE (28X11)

23482-MGC-N20

$20.16

12

GEAR, MAINSHAFT FIFTH (27T)

23491-MGC-JB0

$129.21

13

COLLAR (28X13)

23495-MM5-000

$23.00

14

GEAR, COUNTERSHAFT FIFTH (29T)

23501-MGC-JB0

$142.87

15

GEAR, MAINSHAFT SIXTH (28T)

23511-MGC-N20

$122.89

16

GEAR, COUNTERSHAFT SIXTH (27T)

23521-MGC-N20

$136.05

17

SPROCKET, DRIVE (18T)

23801-MGC-JB0

$71.64

18

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.21

19

BOLT, SPECIAL (10MM)

90037-422-003

$7.32

20

WASHER, SPLINE (30X36X1.5)

90452-MAT-000

$3.30

21

WASHER, SPLINE (28X34X1.5)

90452-MR7-000

$6.33

22

WASHER B, THRUST (22MM) (BLUE)

90455-ML7-000

$4.85

23

WASHER, THRUST (28MM)

90458-729-920

$5.34

24

WASHER (10.2MM)

90459-438-000

$5.83

25

WASHER, SPLINE (30MM)

90463-MAT-000

$4.57

26

WASHER, SPLINE (28MM)

90463-MR7-000

$10.57

27

WASHER, LOCK (30MM)

90464-MAT-000

$6.12

28

WASHER, LOCK (28MM)

90464-MR7-000

$10.57

29

CIRCLIP (28MM)

90603-MN4-000

$4.11

30

CIRCLIP (30MM)

90604-MM5-000

$4.48

31

RING, SNAP (72MM)

90605-MM5-000

$9.05

32

RING, SNAP (62MM)

90606-MM5-000

$8.66

33

BEARING, NEEDLE (22X26X13)

91001-MB6-680

$34.56

34

BEARING, NEEDLE (22MM)

91022-MEJ-003

$23.92

35

BEARING, NEEDLE (22X38X16)

91022-MGC-N21

$23.77

36

ROLLER (5X10.8)

91101-MGC-N21

$3.03

37

OIL SEAL (45X72X8)

91207-MAT-003

$17.77

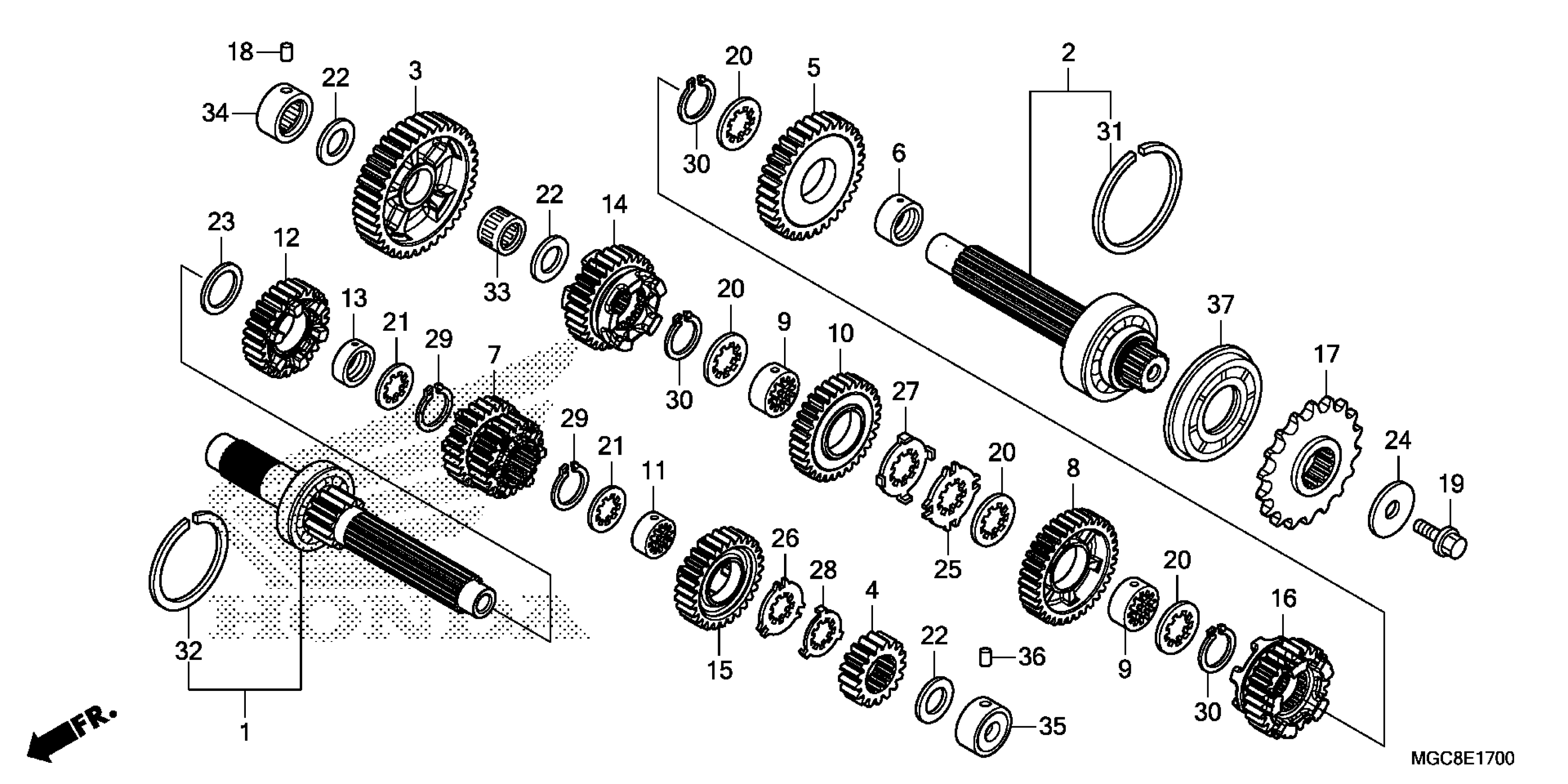

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 TRANSMISSION Diagram
