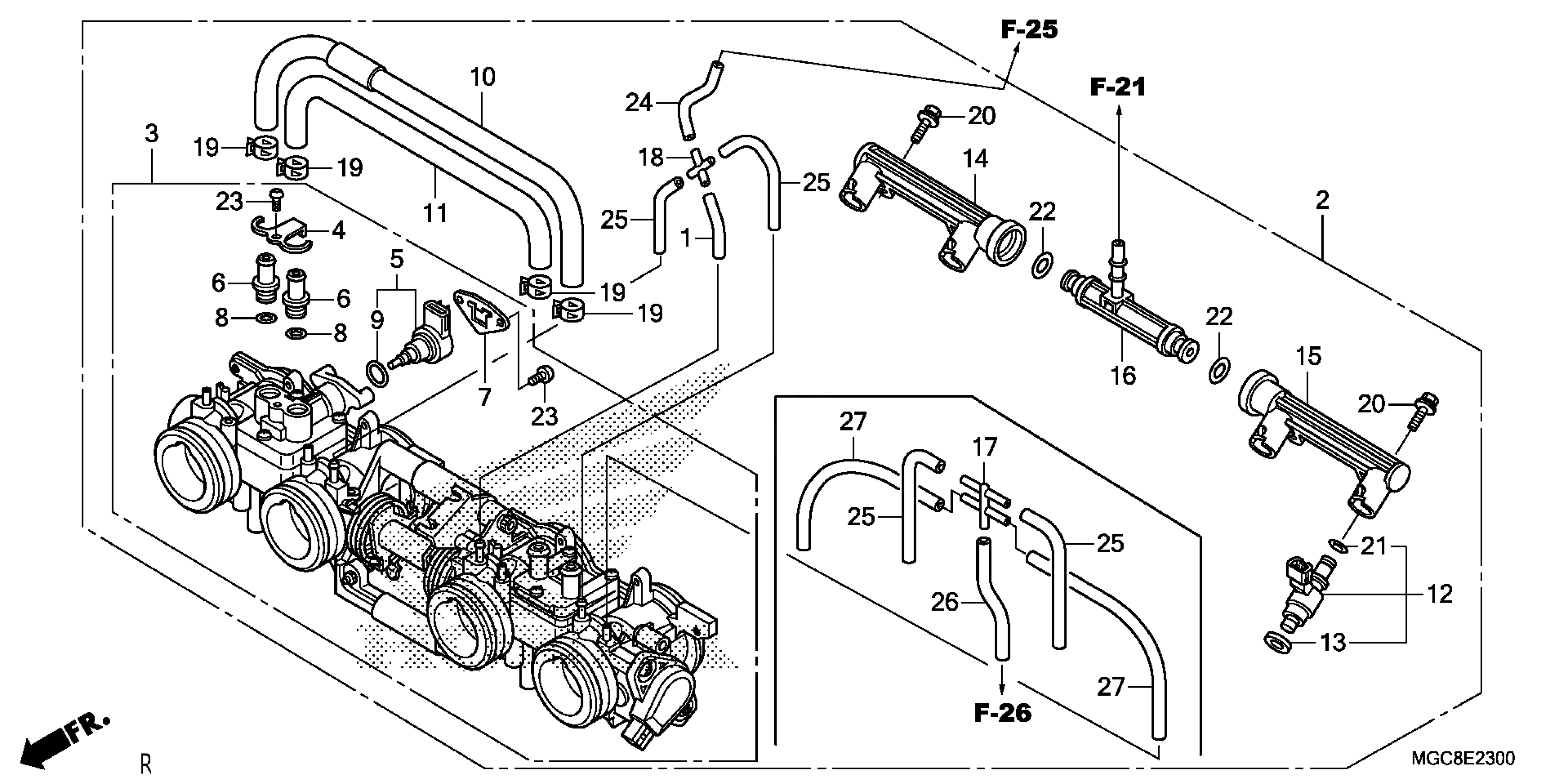

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 THROTTLE BODY Diagram

#

Description
Price

1

TUBE

16197-MGC-003

$3.98

2

BODY ASSY., THROTTLE (GQ8FB A)

16400-MGC-A22

$2,557.62

3

BODY ASSY., THROTTLE

16401-MGC-A22

$1,837.23

4

PLATE, JOINT

16431-MFJ-D01

$8.28

5

MOTOR ASSY.

16431-MGZ-D01

$150.64

6

JOINT, IDLE AIR CONTROL VALVE

16432-MFG-D01

$7.89

7

PLATE, IDLE AIR CONTROL VALVE

16433-MEW-921

$10.34

8

O-RING

16434-MFJ-D01

$3.03

9

O-RING (17.8X1.9)

16435-MFJ-D01

$3.03

10

TUBE (9X330)

16440-MGC-003

$14.49

11

TUBE

16441-MFP-003

$11.56

12

INJECTOR ASSY., FUEL

16450-MGC-D21

$223.33

13

RING, SEAL (Honda Code 8954000)

16472-KPC-D50

$2.14

14

PIPE, FUEL (A)

16610-MGC-D21

$61.54

15

PIPE, FUEL (B)

16620-MGC-D21

$61.54

16

T-JOINT, FUEL

16630-MGC-003

$48.07

17

JOINT, FIVE-WAY

17201-MCJ-003

$8.61

18

JOINT, FOUR-WAY

17201-MCZ-003

$7.30

19

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$14.40

20

BOLT, SHOULDER

90021-MGZ-D02

$2.90

21

O-RING (6.3X2.2)

91301-GGL-J01

$10.46

22

O-RING (7.47X3.6)

91301-PLC-000

$3.11

23

SCREW, PAN (4X8)

93500-04008-0H

$1.49

23

SCREW, PAN (4X8) This part replaces 93500-04008-1H.

93500-04008-0H

$1.49

24

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

25

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

26

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67

27

BULK HOSE, VACUUM (3.5X1000) (3.5X130) (BULK HOSE: 95005-35008-10M)

95005-35001-20M

$9.67
