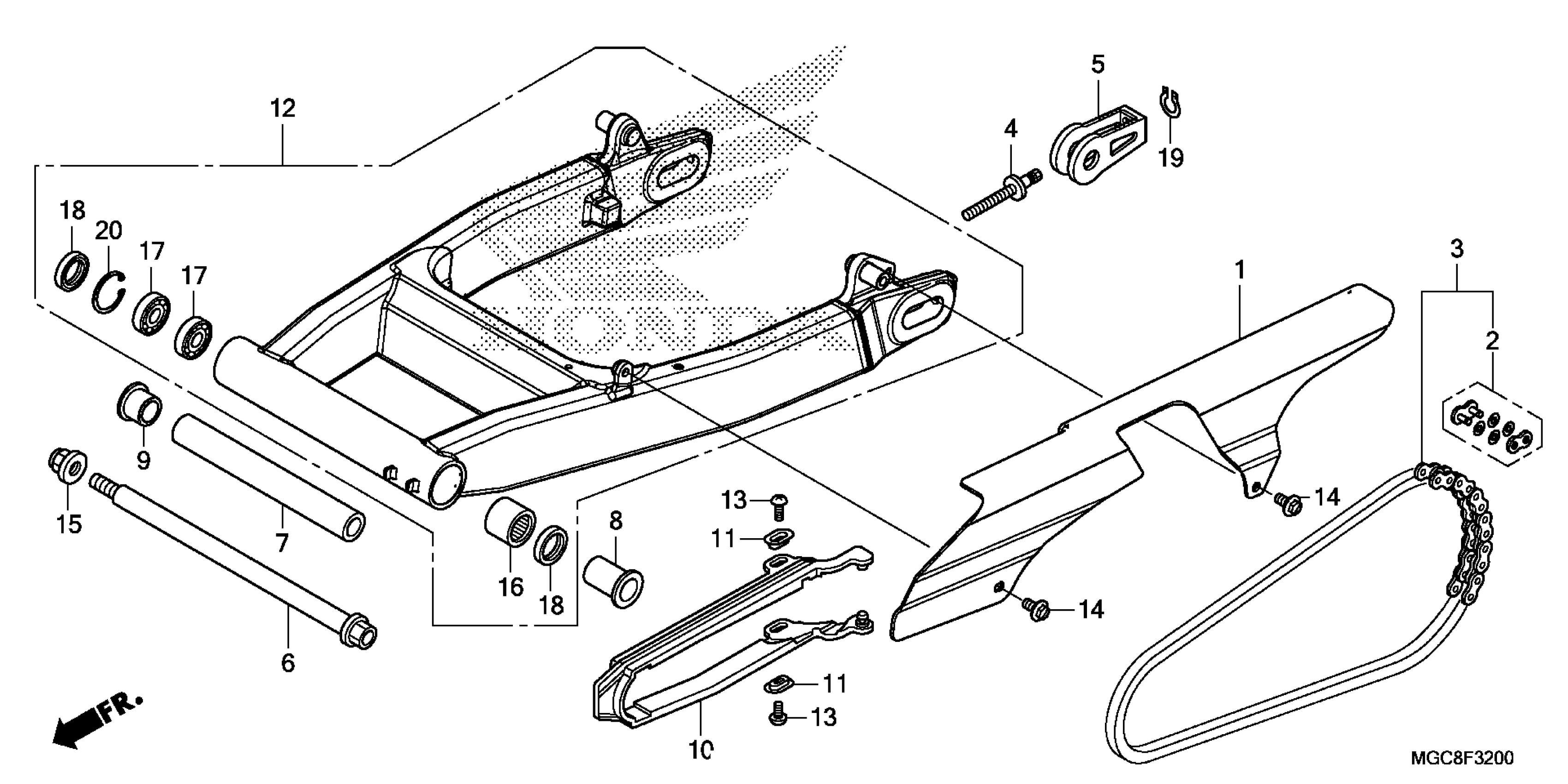

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 SWINGARM (1) Diagram

CASE, DRIVE CHAIN

40510-MGC-JB0

$163.01

MASTER LINK (RK EXCEL)

40531-MFL-005

$11.41

MASTER LINK (DAIDO)

40541-MFL-003

$7.87

CHAIN, DRIVE (DID50VA11-120ZB) (DAIDO) (STANDARD LINK 116L)

40540-MFL-003

$259.88

CHAIN, DRIVE (RK50HFOZ6-120L) (RK EXCEL) (STANDARD LINK 116L)

40540-MFL-005

$259.88

BOLT, CHAIN ADJUSTING

40542-MGC-N20

$7.38

ADJUSTER, CHAIN

40543-MGC-N20

$25.90

BOLT, SWINGARM PIVOT

52101-MGC-JB0

$36.82

COLLAR, SWINGARM PIVOT

52102-MGC-D30

$19.57

COLLAR B, PIVOT

52106-MGC-D30

$29.25

COLLAR, R. PIVOT DISTANCE

52142-MGC-JB0

$14.13

SLIDER, CHAIN

52170-MGC-000

$49.40

WASHER, CHAIN SLIDER

52171-KR6-000

$2.38

SWINGARM SUB-ASSY., RR.

52200-MGC-JB0

$869.12

SCREW, PAN (5X10)

90104-ML7-920

$2.80

BOLT, FLANGE (6X12)

90105-MGC-JB0

$2.25

NUT, FLANGE (18MM)

90305-MB4-003

$11.49

BEARING, NEEDLE

91071-MR7-003

$23.57

BEARING, RADIAL BALL (20X37X9)

91072-MR7-003

$16.53

DUST SEAL (28X37X4)

91202-MR7-003

$6.06

CIRCLIP (OUTER) (10MM)

94511-10000

$0.85

CIRCLIP (INNER) (37MM)

94520-37000

$2.57
