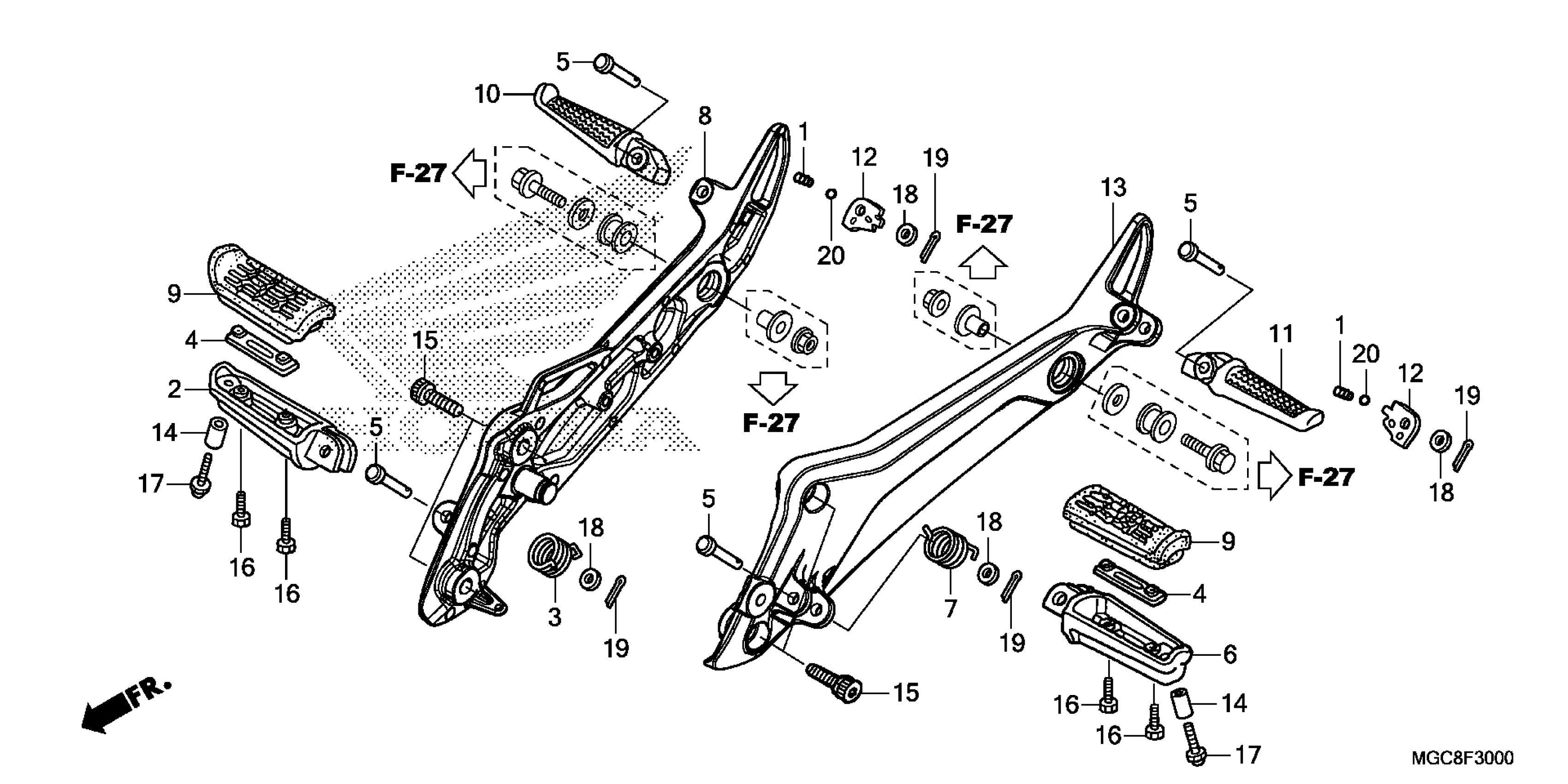

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

ARM, R. STEP (COO)

50612-KYJ-305

$23.26

2

ARM, R. STEP (COO) This part replaces 50612-MM5-000.

50612-KYJ-305

$23.26

3

SPRING, R. STEP RETURN

50617-MM5-000

$4.47

4

PLATE, STEP SETTING

50619-MM5-000

$7.37

5

PIN, STEP BAR

50639-ML0-010

Unavailable

6

ARM, L. STEP (COO)

50642-KYJ-305

$23.26

6

ARM, L. STEP (COO) This part replaces 50642-MM5-000.

50642-KYJ-305

$23.26

7

SPRING, L. STEP RETURN

50644-MM5-000

$4.47

8

HOLDER, R. STEP

50650-MGC-JB0

$290.49

9

RUBBER, STEP

50661-MV9-000

$12.88

10

ARM, R. PILLION STEP (COO) This part replaces 50711-MGS-D30.

50711-MGS-305

$58.58

10

ARM, R. PILLION STEP (COO)

50711-MGS-305

$58.58

11

ARM, L. PILLION STEP (COO) This part replaces 50712-MGS-D30.

50712-MGS-305

$54.45

11

ARM, L. PILLION STEP (COO)

50712-MGS-305

$54.45

12

PLATE, PILLION STEP CLICK

50718-MN8-000

$2.26

13

HOLDER, L. STEP

50750-MGC-JB0

$272.49

14

COLLAR, STEP (LOWER)

51486-KV3-950

$5.81

15

BOLT, SOCKET (8X34)

90112-MBR-J10

$2.83

16

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.42

17

BOLT, CAP (8X35)

92501-08035-0A

$2.70

18

WASHER, PLAIN (8MM)

94102-08000

$0.86

19

PIN, COTTER (2.0X15)

94201-20150

$0.94

20

BALL, STEEL (#8) (1/4)

96211-08000

$1.13
