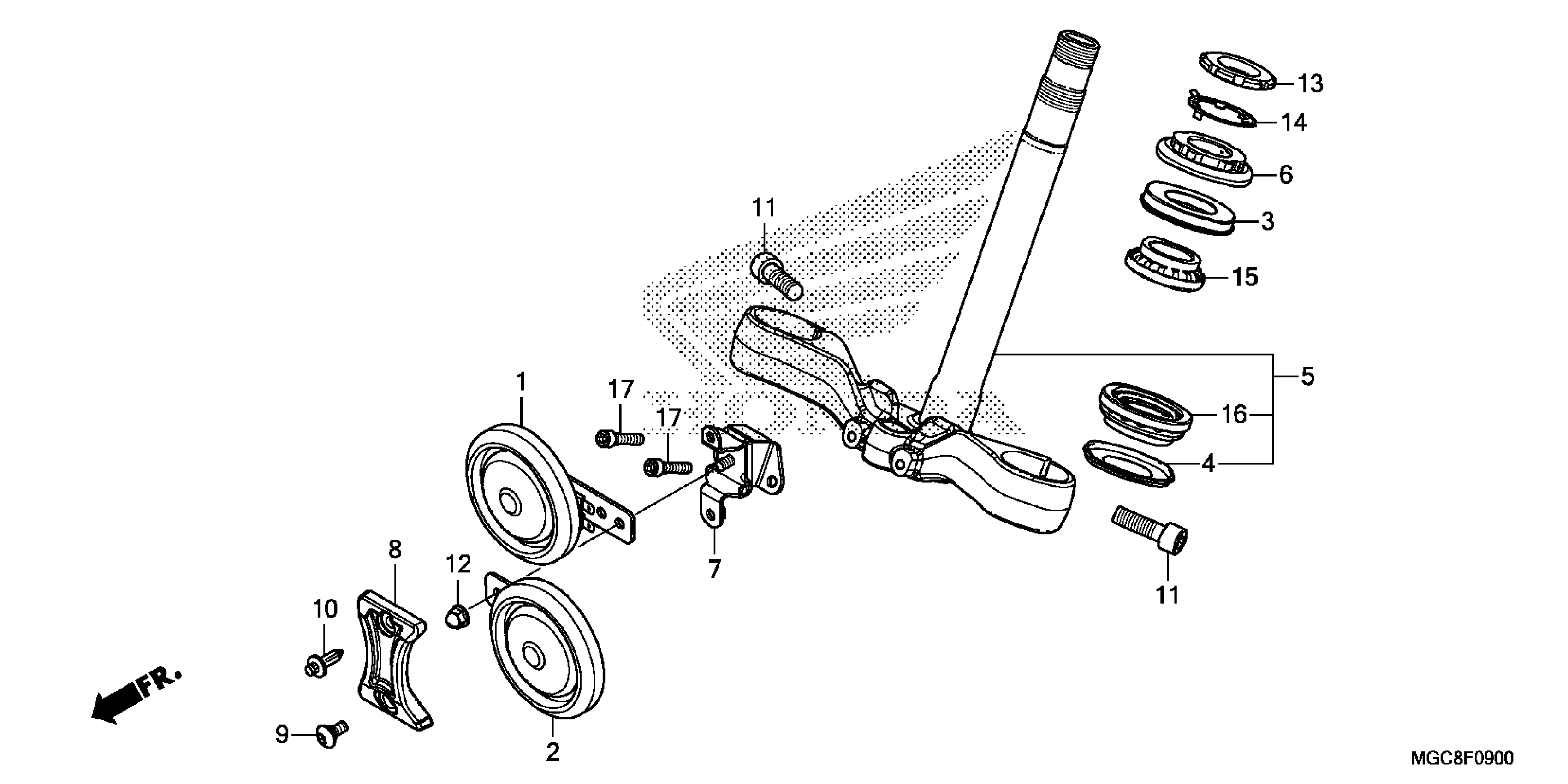

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 STEERING STEM Diagram

HORN (HIGH)

38110-MBR-J11

$76.07

HORN (SPL.LOW)

38120-MBR-J11

$76.07

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$10.81

DUST SEAL, STEERING HEAD

53214-371-010

$11.28

STEM SUB-ASSY., STEERING

53219-MGC-JB0

$324.61

THREAD, STEERING HEAD TOP

53220-MB2-000

$31.32

STAY, HORN

61406-MGC-JB0

$31.55

COVER, HORN

61407-MGC-JB0

$10.97

SCREW, SPECIAL (6X14)

90115-MGZ-J00

Unavailable

RIVET, PUSH

90116-MCS-G00

$1.26

BOLT, SOCKET (10X32)

90120-MCH-A00

$2.19

NUT, CAP (L. SIDE ONLY)

90201-428-900

$2.03

THREAD, STEERING HEAD TOP (B)

90302-425-830

$19.51

WASHER, LOCK

90506-425-830

$6.56

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$31.88

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$31.88

BOLT, SOCKET (6X28)

96600-06028-07

$1.17
