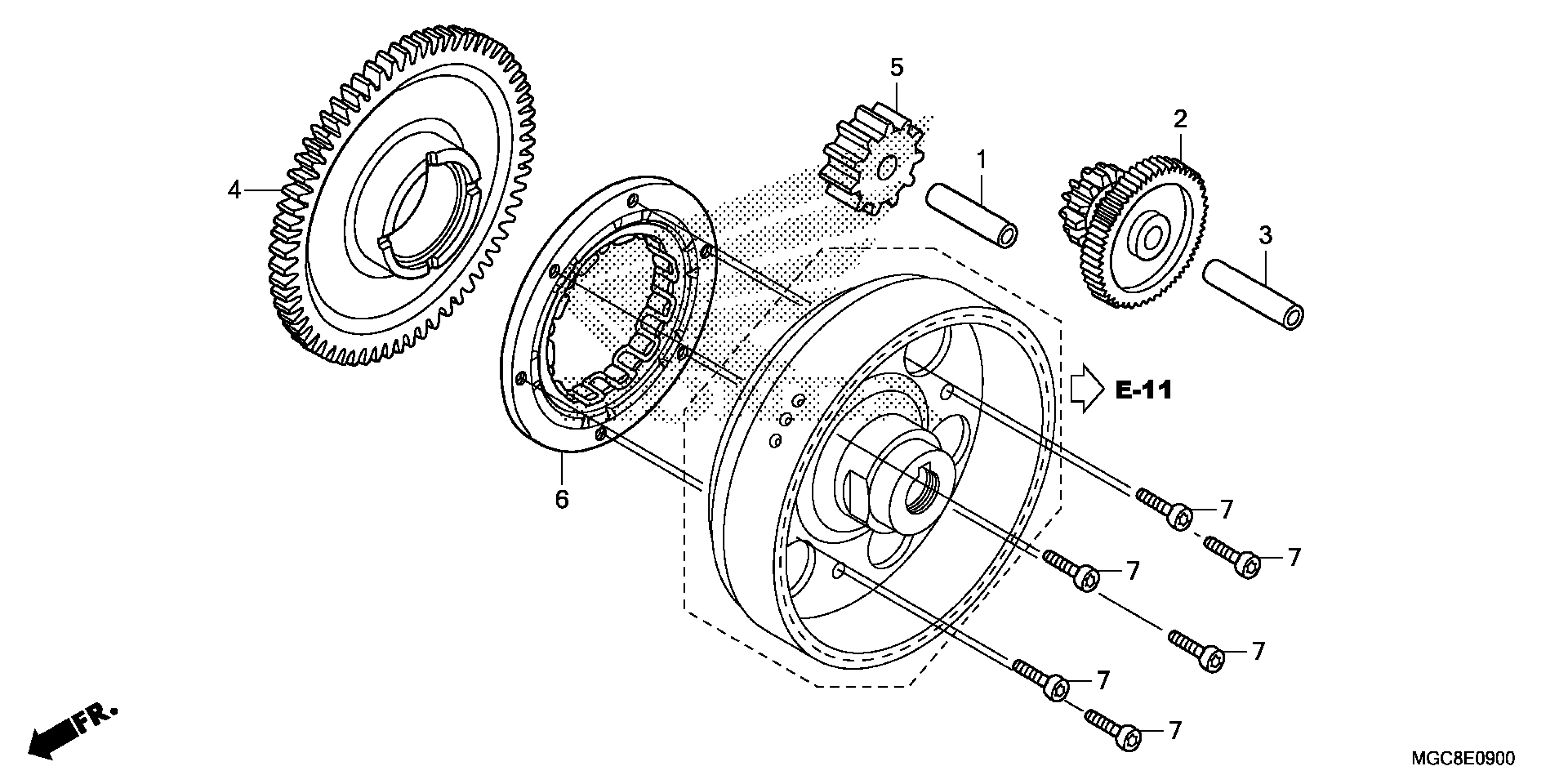

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 STARTING CLUTCH Diagram

#

Description

Price

1

PIN, PISTON (Honda Code 0864967)

13111-892-000

$5.16

2

GEAR, STARTER REDUCTION (11T/56T)

28101-MGC-D20

$115.52

3

PIN (10X44)

28102-ME9-000

$9.23

4

GEAR, STARTING DRIVEN (49T)

28110-MAZ-000

$136.65

5

GEAR, STARTING IDLE (11T)

28121-MGC-D20

$41.49

6

CLUTCH, STARTER (OUTER)

28125-MV9-672

$252.64

7

BOLT, SOCKET (6MM) (Honda Code 0768531)

90085-413-781

$3.77
