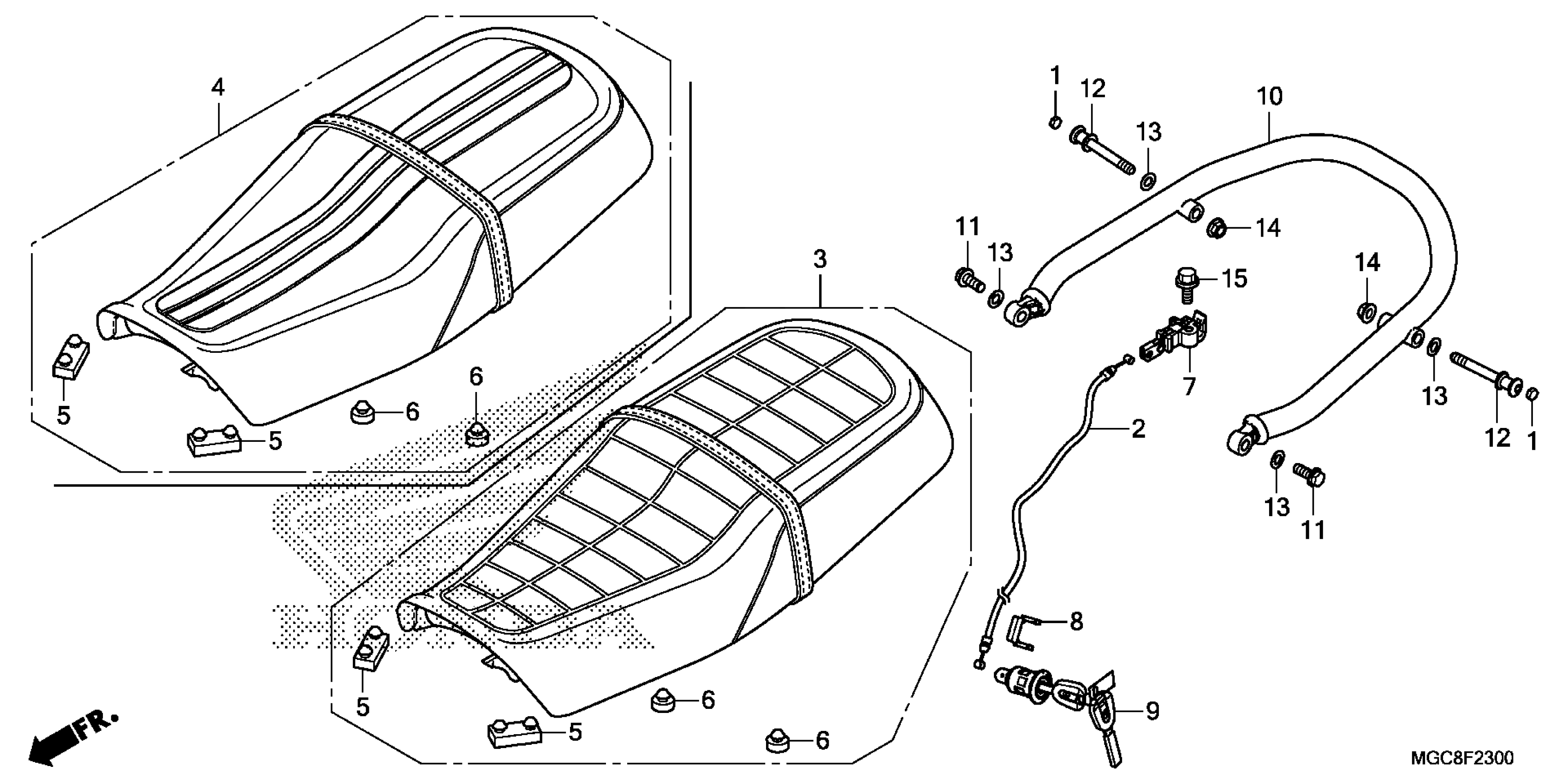

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 SEAT Diagram

#

Description

Price

1

PLUG, HEX. (6MM)

12392-MJ0-000

$4.20

2

CABLE, SEAT LOCK

77156-MGC-JB1

$7.93

3

SEAT ASSY., DOUBLE (TYPE1)

77200-MGC-JB1ZA

$521.13

5

RUBBER B, SEAT SETTING

77205-286-000

$4.92

6

RUBBER B, SEAT STOPPER

77215-GC2-000

$4.70

7

HOOK, SEAT CATCH

77220-KY6-010

$26.19

8

PLATE, LOCK KEY SETTING

77235-MJE-D00

$2.42

9

KEY, SEAT LOCK | Use up to Frame SN HK300002. This part replaces 77239-MJE-D02.

77239-MJE-D04

$130.43

9

KEY, SEAT LOCK | Use from Frame SN HK300003. This part replaces 77239-MJE-D03.

77239-MJE-D04

$130.43

10

GARNISH, RR.

84150-MGC-JB0

$115.01

11

BOLT, SPECIAL FLANGE (8X20)

90103-KEZ-900

$4.03

12

BOLT, HOOK (8X55)

90127-MGC-JB0

$6.68

13

WASHER, PLAIN (8MM)

90501-MM8-610

$2.22

14

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

15

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.91
