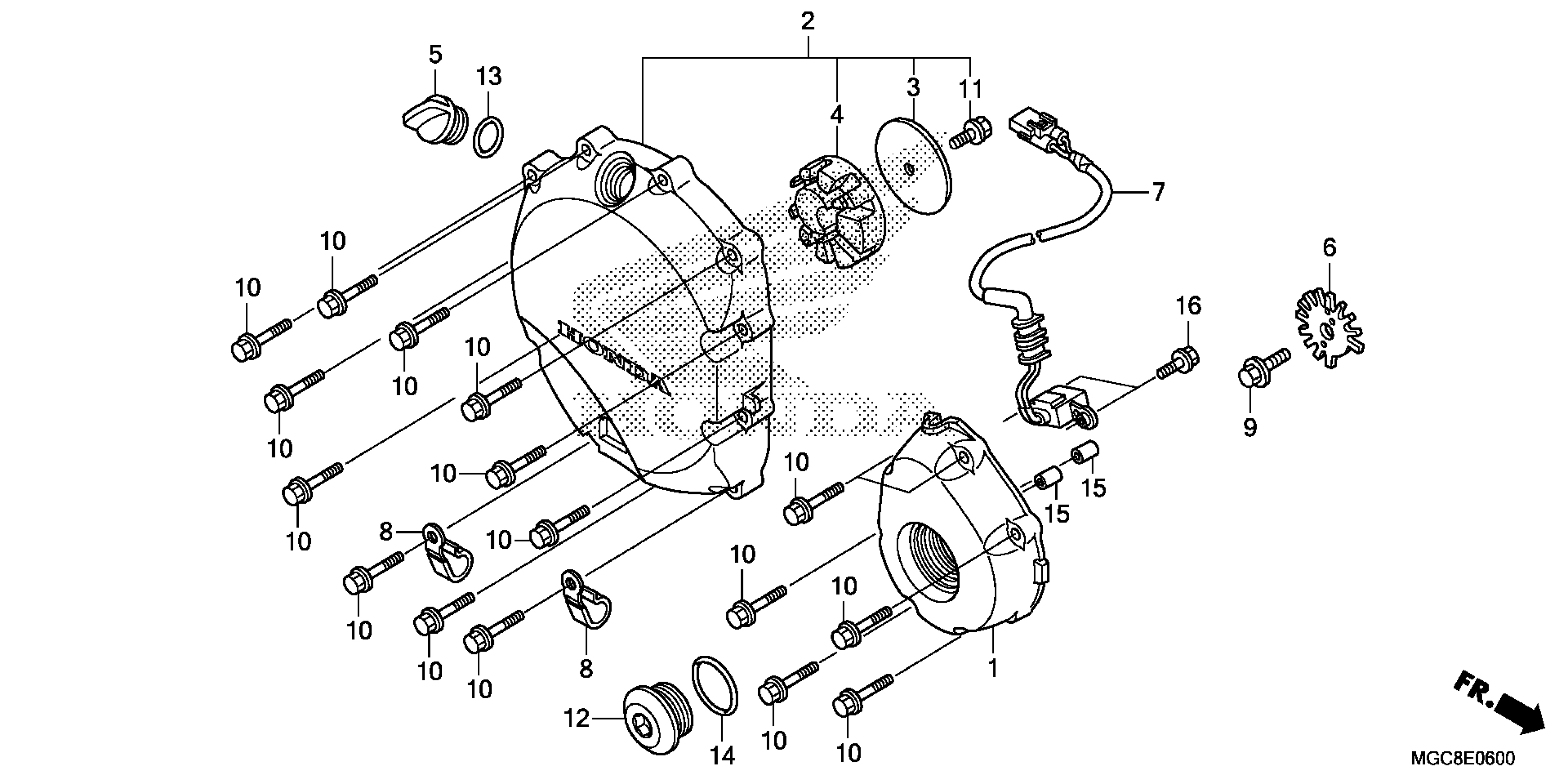

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11311-MGC-920

$134.46

COVER ASSY., CLUTCH

11330-MGC-J80

$354.23

PLATE, CLUTCH COVER RUBBER

11333-MZ1-000

$8.97

RUBBER, CLUTCH COVER

11334-MZ1-000

$37.64

CAP, OIL FILLER

15611-KA4-710

$14.40

ROTOR, PULSE

30291-MGC-010

$16.98

GENERATOR ASSY., PULSE

30300-MGC-003

$85.05

CLAMP, SWITCH WIRE

35211-443-760

$4.13

BOLT, FLANGE (10X20)

90001-MGC-000

$4.70

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

BOLT, FLANGE (6X12) (CT200)

90029-MT4-000

$2.70

CAP (30MM)

90087-MR1-000

$19.89

O-RING (18X3) (ARAI)

91307-KF0-003

$2.92

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.51

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49
