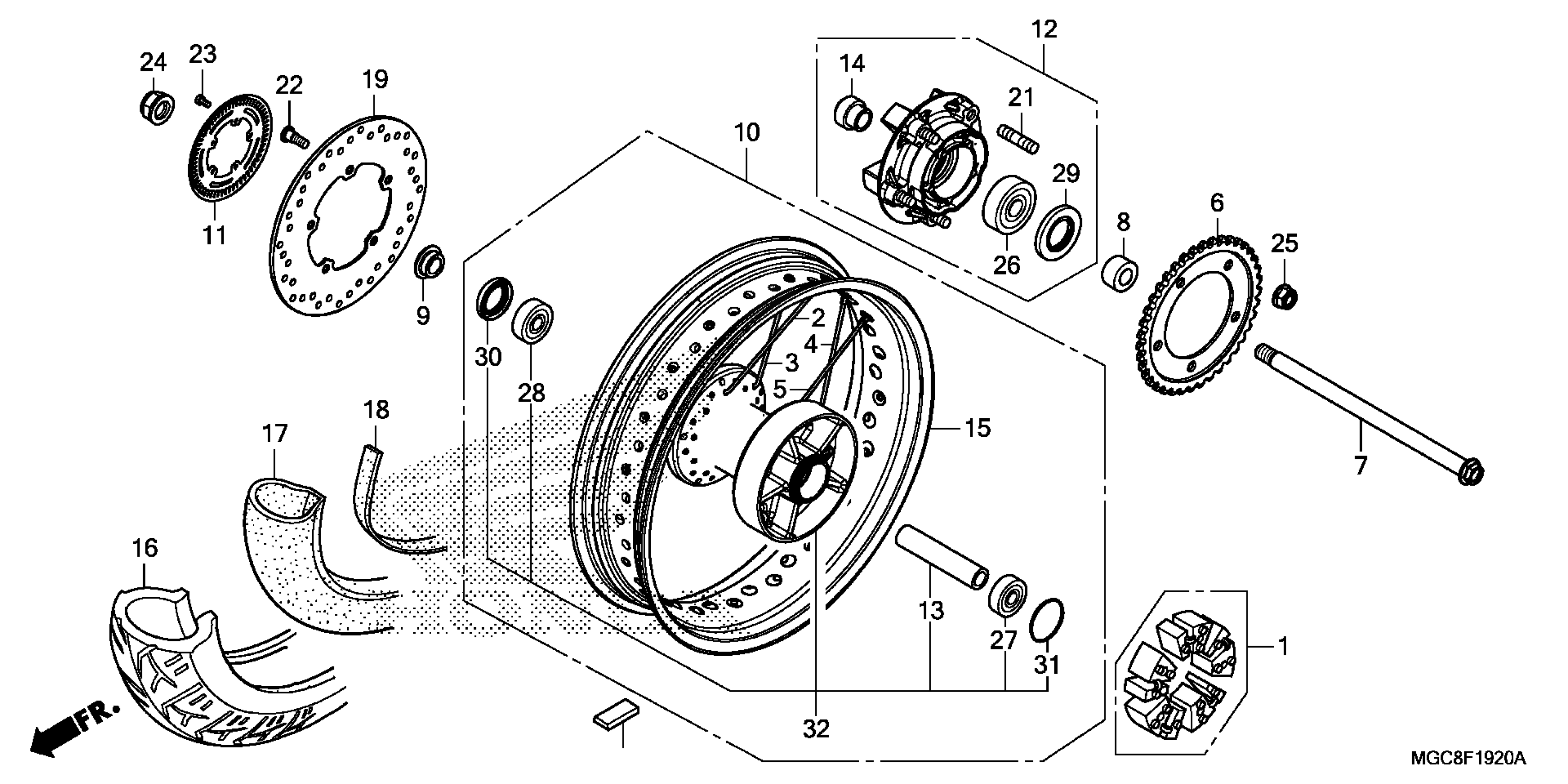

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 REAR WHEEL (1) Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-MY5-730

$71.94

2

SPOKE SET, R. RR. (INNER)

06420-MGC-JB0

$6.00

3

SPOKE SET, R. RR. (OUTER)

06421-MGC-JB0

$6.00

4

SPOKE SET, L. RR. (INNER)

06422-MGC-JB0

$6.00

5

SPOKE SET, L. RR. (OUTER)

06423-MGC-JB0

$6.00

6

SPROCKET, FINAL DRIVEN (40T)

41201-MGC-JB0

$100.01

7

AXLE, RR. WHEEL

42301-MGC-N20

$42.31

8

COLLAR, RR. WHEEL SIDE

42311-MGC-JB0

$21.16

9

COLLAR, RR. BRAKE SIDE

42312-MGC-JB0

$21.16

10

WHEEL SUB-ASSY., RR.

42350-MGC-JB0

$1,007.32

11

RING, RR. PULSER

42515-MGC-JB0

$75.81

12

FLANGE SUB-ASSY., RR. DRIVEN

42615-MGC-JB0

$210.69

13

COLLAR, RR. AXLE DISTANCE

42620-MGC-N40

$18.38

14

COLLAR, RR. WHEEL DISTANCE

42625-MGC-N20

$27.79

15

RIM, RR. WHEEL (18X4.00)

42701-MGC-JB1

$378.60

16

TIRE, RR. This part replaces 42711-MGC-N22.

42711-MGC-N23

$234.47

17

TUBE, TIRE This part replaces 42712-MGC-N21.

42712-MGC-N22

$34.40

17

TUBE, TIRE

42712-MGC-N22

$34.40

18

FLAP, TIRE (DUNLOP)

42713-MGC-N21

$4.90

19

DISK, RR. BRAKE

43251-MGC-000

$574.43

20

WEIGHT, BALANCE (10G)

44721-MGC-003

$4.07

20

WEIGHT, BALANCE (15G)

44722-MGC-003

$4.85

20

WEIGHT, BALANCE (20G)

44723-MGC-003

$4.85

21

BOLT 2, STUD (12X25)

90102-MAS-000

$3.83

22

BOLT, DISK (8X20)

90106-MGE-000

$3.99

23

BOLT, TORX (5X10)

90131-KFK-630

$2.80

24

NUT, U FLANGE (18MM)

90305-MFT-641

$8.25

25

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.68

26

BEARING, RADIAL BALL (63/28)

91051-MBR-003

$25.62

27

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

Unavailable

28

BEARING, RADIAL BALL (6304UU)

91053-MM5-004

$29.51

29

DUST SEAL (37X68X7)

91251-MBR-003

$15.10

30

DUST SEAL (35X52X7.5)

91254-MJC-A01

$10.32

31

O-RING (51X2)

91352-MCF-003

$3.61

32

HUB SUB-ASSY., RR.

42635-MGC-JB0

$459.03
