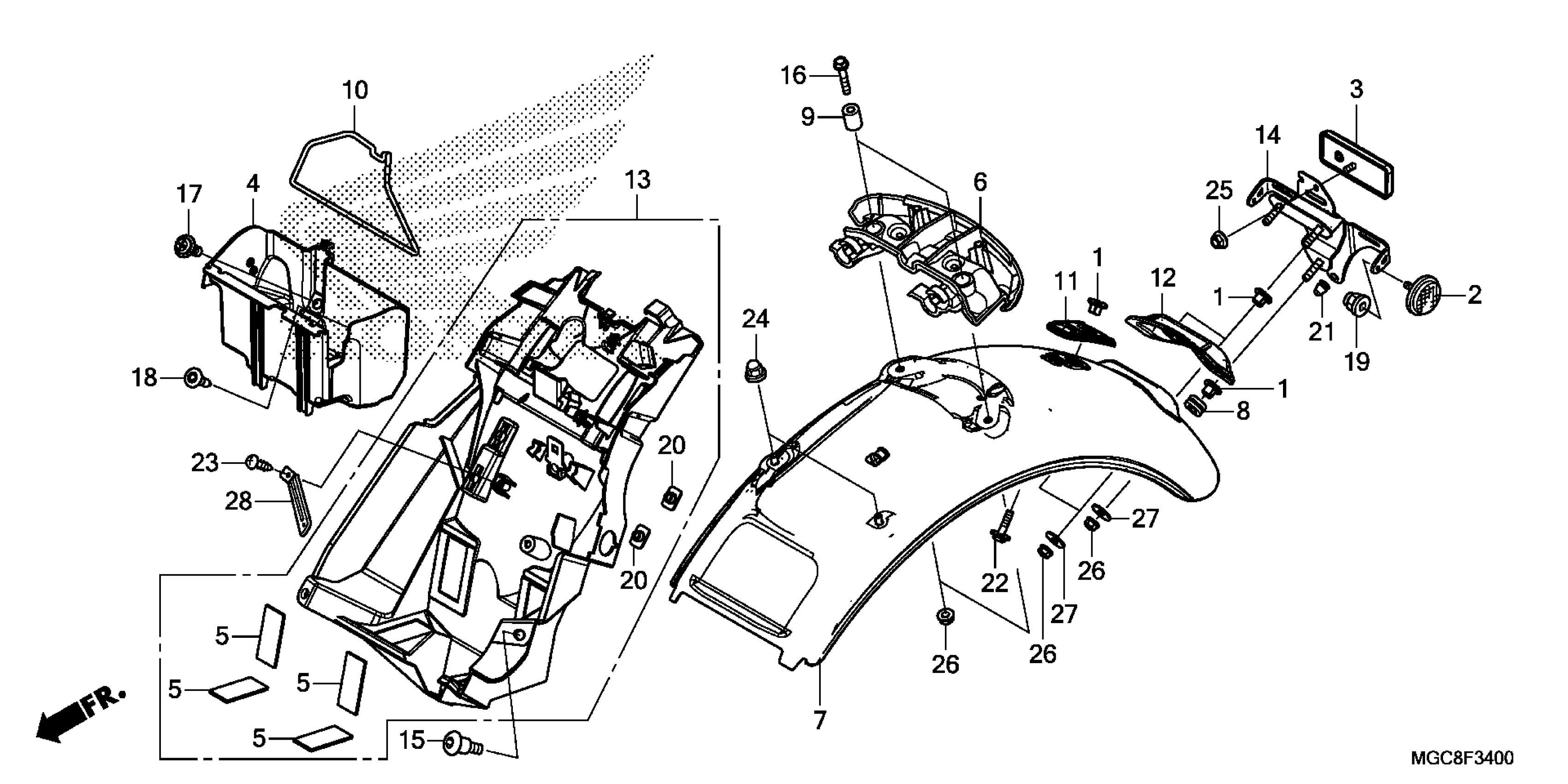

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 REAR FENDER Diagram

COLLAR, FUEL TANK SETTING

17626-KA4-700

$6.71

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$13.66

REFLECTOR, REFLEX (STANLEY)

33741-MS6-921

$13.93

COVER, BATTERY

50330-MGC-000

$33.30

RUBBER, BATTERY (A)

50384-045-670

$2.67

COVER, SEAT LOCK

77210-MGC-000

$21.03

FENDER A, RR.

80100-MGC-JB0

$306.18

RUBBER, RR. FENDER CUSHION

80101-310-000

$1.94

COLLAR A, RR. FENDER

80102-MGC-D30

$7.70

BAND, TOOL

80123-GN5-900

$2.67

RUBBER A, RR. FENDER

80130-MGC-JB0

$5.77

RUBBER B, RR. FENDER

80140-MGC-JB0

$8.07

FENDER B, RR.

80200-MGC-JB0

$100.69

BRACKET, NUMBER PLATE

84701-MGC-AA0

$61.34

SCREW, PAN (6X14)

90106-MM4-000

$3.89

BOLT, FLANGE (6X35)

90109-MGC-JB0

$2.69

BOLT, FLANGE (6MM)

90113-GS6-010

$2.88

CLIP, BUMPER SEAL

90116-SP0-003

$4.86

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$4.07

NUT, SPECIAL (6MM)

90301-MGC-JB1

$3.41

PLUG, CONE TYPE

90899-422-610

$1.89

BOLT-WASHER (6X25)

93404-06025-08

$1.87

SCREW, TAPPING (4X12)

93903-14380

$1.49

NUT, CAP (6MM)

94021-06070-0S

$1.62

NUT, FLANGE (5MM)

94050-05070

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

CLIP (4X90)

94591-49000

$3.01
