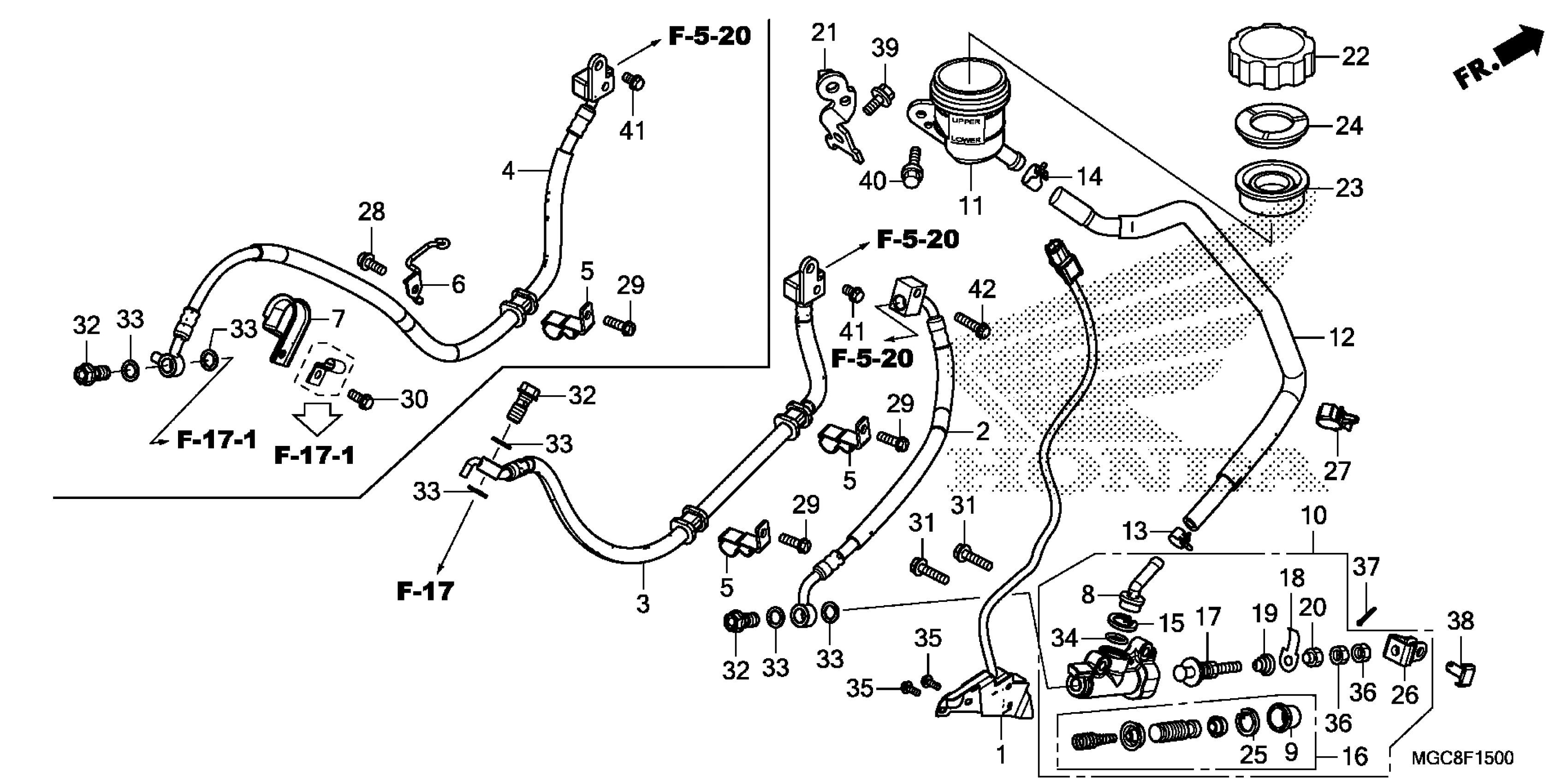

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 REAR BRAKE MASTER CYLINDER Diagram

SWITCH SET, RR. STOP

35300-MGC-JB0

$46.30

HOSE A, RR. BRAKE

43310-MGC-JB1

$41.33

HOSE B, RR. BRAKE

43313-MGC-JB1

$59.30

CLAMP B, RR. BRAKE HOSE

43316-MGC-750

$9.04

CONNECTOR

43503-KCY-671

$10.13

BOOT

43504-MB2-006

$9.01

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-MGC-JB1

$175.75

CUP, MASTER CYLINDER OIL

43511-MGE-016

$20.51

HOSE, RR. BRAKE MASTER CYLINDER

43512-MGC-JB1

$34.00

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

CIRCLIP, RR. MASTER CYLINDER (FOR FR.)

43517-KS6-701

$3.55

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

ROD, PUSH (NISSIN)

43530-MGC-JB1

$23.12

PLATE, SWITCH (NISSIN)

43537-MN5-006

$4.00

SPRING, SWITCH

43538-MCA-006

$0.97

NUT, SWITCH PLATE (NISSIN)

43539-MN5-006

$3.75

STAY, OIL CUP

43555-MGC-000

$5.65

CAP, OIL CUP

45513-MEL-D21

$16.55

DIAPHRAGM

45520-300-000

$8.13

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

CIRCLIP

46182-MEL-D21

$1.77

JOINT, BRAKE ROD

46504-MAH-671

$13.01

CLIP, CLUTCH HOSE

90681-MGC-JB1

$2.64

BOLT, FLANGE (6X18)

90105-MY9-000

$2.67

BOLT, FLANGE (6X25)

90131-124-000

$0.68

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

WASHER, OIL BOLT

90545-300-000

$3.72

O-RING (14.8X2.4)

91212-422-006

Unavailable

SCREW-WASHER (4X12)

93893-04012-07

$1.22

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

NUT, HEX. (8MM)

94002-08000-0S

$1.19

PIN, COTTER (2.0X12)

94201-20120

$0.94

PIN D, JOINT

95015-54000

$3.95

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

BOLT, FLANGE (6X12)

96001-06012-00

$1.64

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

Unavailable
