Description

Price

1

PAN, OIL

11210-MEJ-H30

$216.77

2

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$17.70

3

PUMP ASSY., OIL

15100-MGC-000

$233.45

4

SPROCKET, OIL PUMP DRIVEN (36T)

15134-MAZ-000

$65.62

5

STRAINER, OIL

15150-MAZ-000

$35.42

6

GASKET, OIL STRAINER

15154-MGC-003

$10.88

7

CHAIN, OIL PUMP (63L) (DAIDO)

15161-MAZ-003

$37.03

8

VALVE ASSY., RELIEF

15220-MZ1-000

$33.68

9

PIPE C, OIL

15313-MAZ-000

$32.13

10

PIPE D, OIL

15314-MAZ-000

$38.00

11

PIPE, OIL RETURN

15315-MGC-000

$67.88

12

PIPE B, OIL PASSAGE

15316-MGC-000

$42.39

13

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$13.80

13

FILTER, OIL (WAKO FILTER)

15410-MFJ-D02

$13.80

14

BOLT, FLANGE (6X43)

90003-MB0-000

$5.65

15

BOLT, FLANGE (6X25) (NSHF)

90006-GHB-670

$1.64

16

BOLT, FLANGE (6X32) (NSHF)

90006-GHB-690

$1.75

17

BOSS, OIL FILTER (Honda Code 1243435)

90019-MB0-000

$7.73

18

BOLT-WASHER (6X12) (Honda Code 2551760)

90021-MM5-000

$4.76

19

O-RING (14.5X2.4) (ARAI)

91303-MG2-792

$2.98

20

O-RING (6X2)

91303-MGC-003

$2.10

21

O-RING (9.6X2.6)

91306-MGC-003

$2.10

22

BOLT, DRAIN PLUG (14MM)

92800-14000

$3.32

23

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57

24

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

25

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.48

26

BOLT, FLANGE (6X40) BOLT, FLANGE (6X45)

95701-06040-00

$1.71

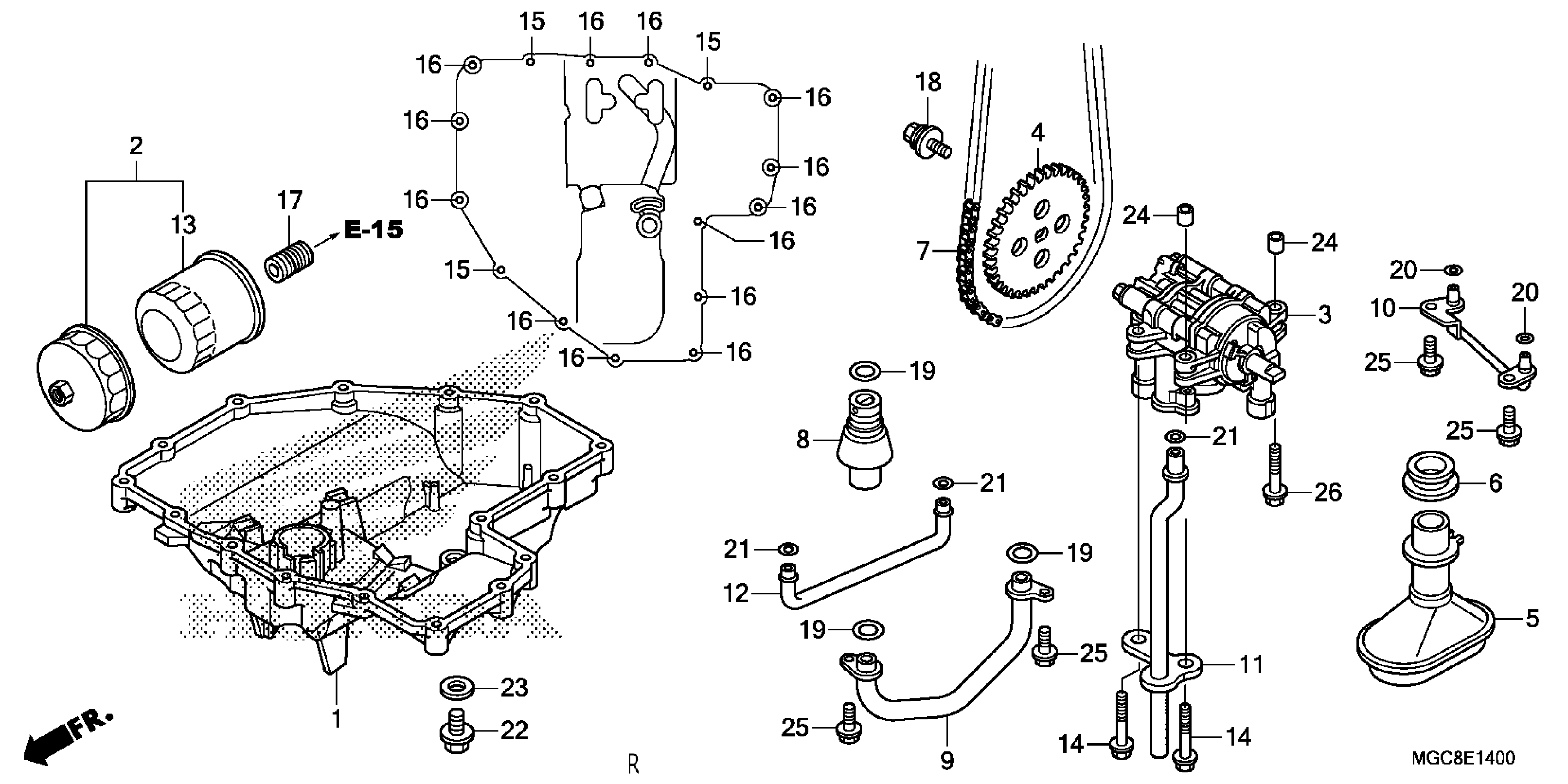

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 OIL PAN@OIL PUMP Diagram
