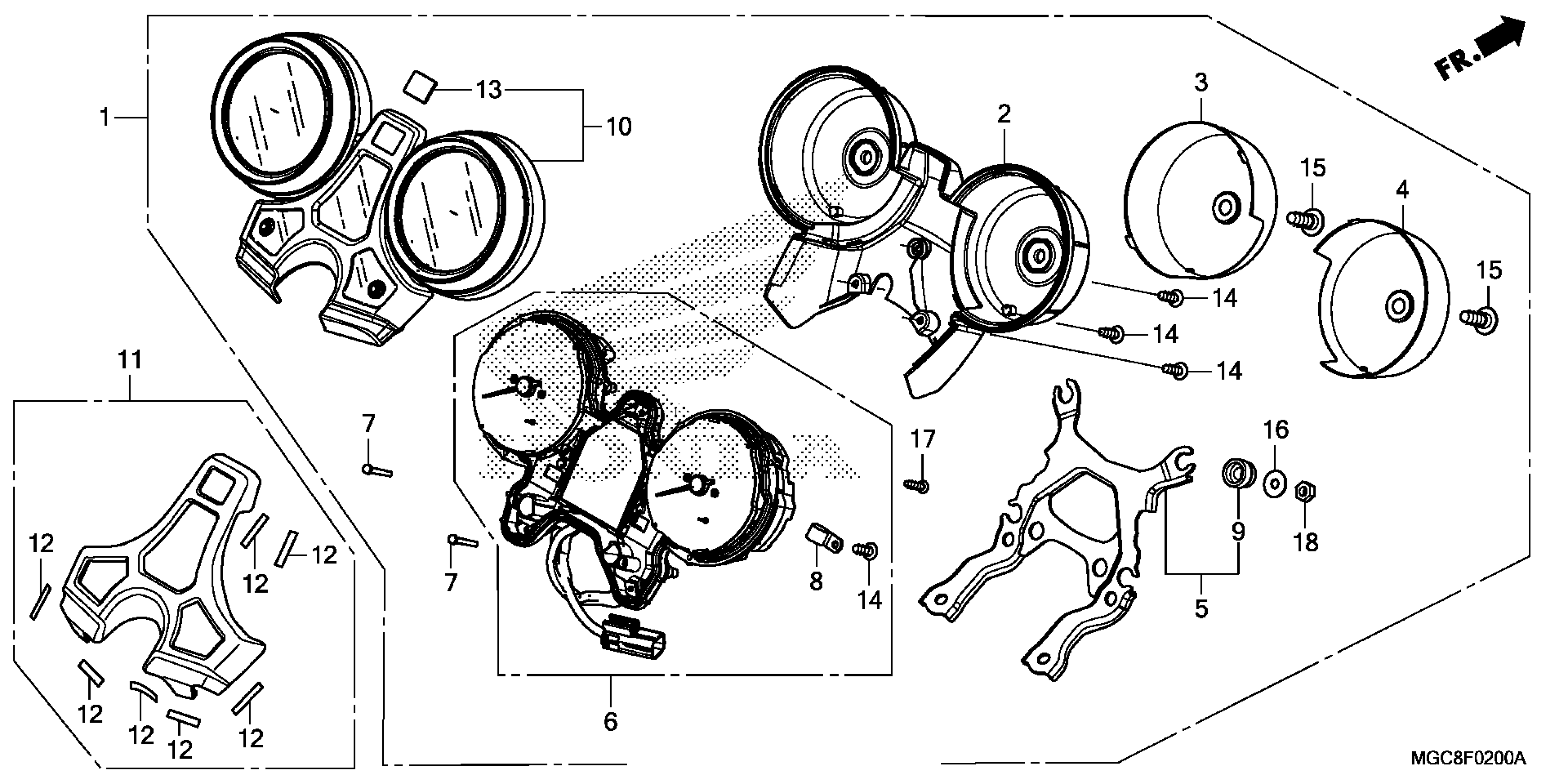

Honda CB1100CAAC (17) CB100CA, JPN, VIN# JH2SC651-HK300001 TO JH2SC651-HK399999 METER Diagram

METER ASSY., COMBINATION (MPH/KPH) (NIPPON SEIKI)

37100-MGC-AA2

$1,189.06

COVER, MAIN

37101-MGC-N41

$120.82

COVER, SPEEDOMETER

37102-MGC-JB1

$35.38

COVER, TACHOMETER

37103-MGC-JB1

$35.38

STAY ASSY., METER

37120-MGC-JB1

$99.53

METER ASSY., SPEED & TACHO (MPH/KPH) (NIPPON SEIKI)

37200-MGC-AA1

$1,198.07

ROD, SWITCH EXTENSION This part replaces 37202-KTW-900.

37202-KTW-901

$32.99

ROD, SWITCH EXTENSION

37202-KTW-901

$32.99

CLAMP

37215-KS3-901

$2.75

RUBBER, METER SETTING

37215-MGC-N40

$4.07

CASE ASSY. (UPPER)

37300-MGC-N42

Unavailable

COVER ASSY., METER

37900-MGC-JB0

$141.66

TAPE, DOUBLE FACE (5X25)

37902-MGC-JB0

$0.57

EMBLEM, PRODUCT (MARUI)

86150-KPG-901

$3.46

SCREW, TAPPING (4X14)

90032-KW3-008

$2.97

SCREW, PAN (6X20)

90112-MGC-JB0

$2.68

WASHER B, HANDLE HOLDER SETTING

90525-030-000

$1.69

SCREW, TAPPING (3X16)

93903-22420

$0.99

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.31

NUT, HEX. (6MM)

94001-06200-0S

$1.31
